Why do welded beads part dont get imported, or not seen even if the Models were designed with welding

Project Support
1

What to do when u have parts welded in an assembly but can be imported

2

Hey Richard988,

Thanks for posting on the forum.

Please share your project URL here for us to take a look!

Best,
Satvik

3

Thanks Satvik! For assisting me here
Below is the project link.

4

Hey Richard988,

From what I see in your project and what I understand from your question, are you saying some solid parts representing welded region are missing in your project?

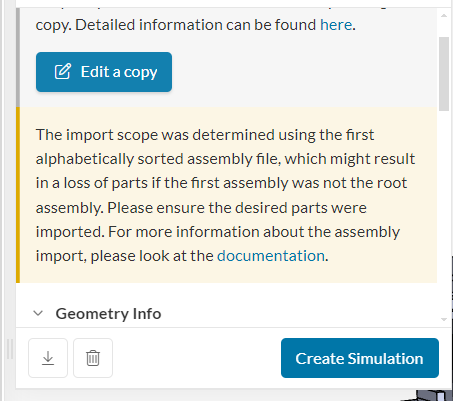

This could be because they were not defined in the same assembly file in your CAD tool. If you click on the geometry in your project, you can see the below warning message:


Have you checked out how to import assemblies into SimScale yet? You can also check out this additional, slightly more detailed article about the same.

Let us know how it works out for you!

Best,
Satvik

5

Thanks for the quick response! Will get back to you If any issue occurs.

6

Hello there ! Richard here! Could u let me know if we could add welds here, in simscale, Cause the link u shared didnt help much

7

With our CAD MODE, you can ‘pre-process’ or make small changes to your existing model to make them ready or prepare them for the simulation you choose to run. However, you cannot model any new parts. That you would have to model and import from your preferred CAD software!
