Validation of the mesh

[adelgado_ferna]

Hi everyone,
I am trying a proper mesh to do a good CFD for an external flow. I tried dozens of combinations but cannot lower the max non-orthogonality from 88. Also, the boundary layer is not well-formed, and I do not know why. Could anyone help me?
The link to the project:

SimScale Login

[bbhagat98]

Hi there,
Thank you for posting on the forum!
We will take a look and get back to you soon

[bbhagat98]

Hi there,
I noticed you do not have an external flow region present for your model.
I would suggest the following steps:

1. Create an external flow region

2. Delete the solid bodies

3. Assign material to the flow region

4. Create a mesh

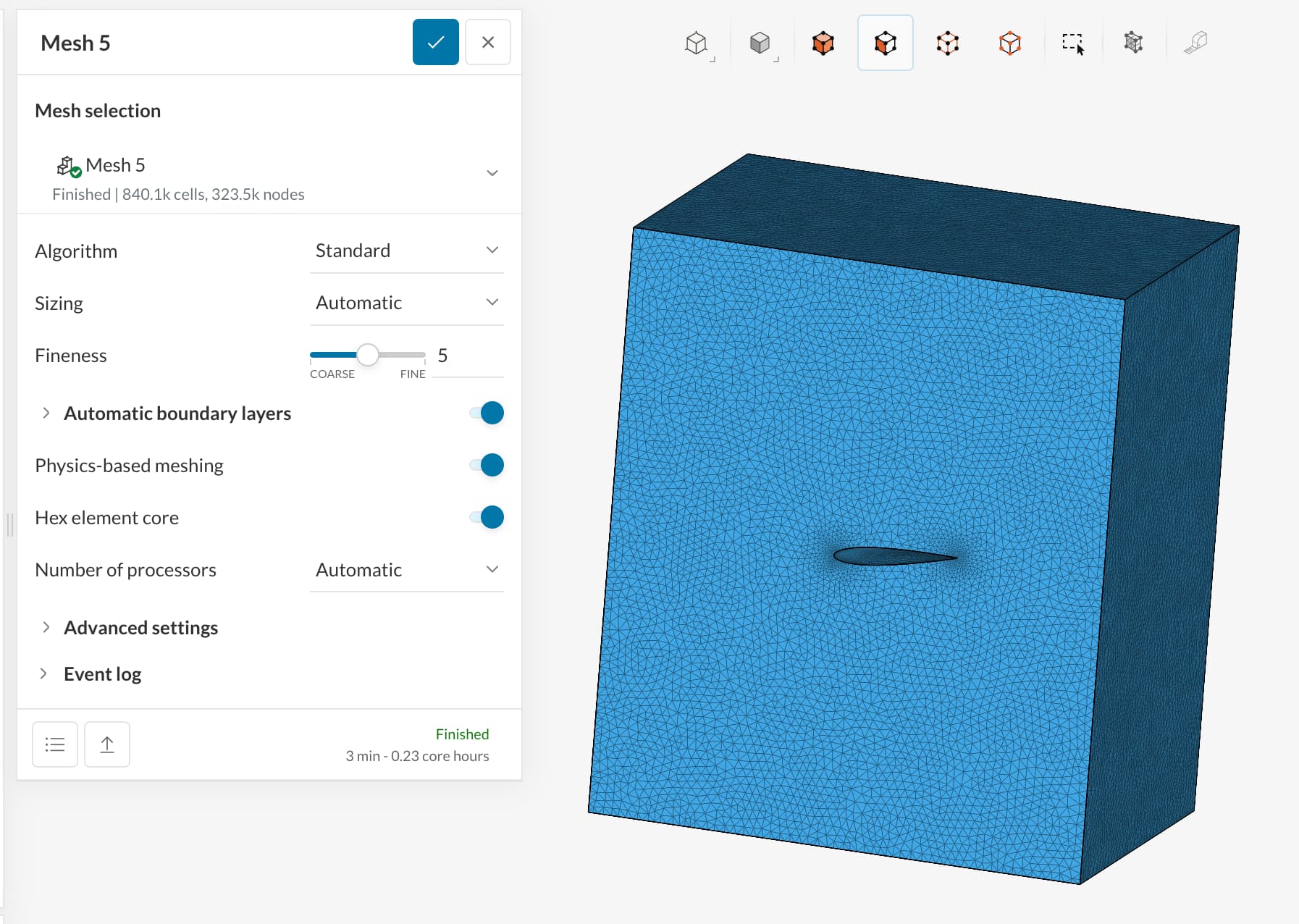

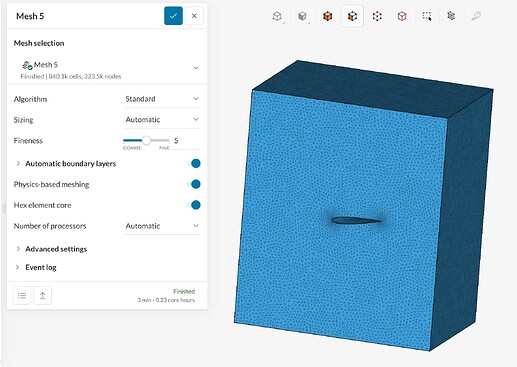

Now I have created a mesh with standard default settings, to begin with. The mesh has around 380k nodes. The overall mesh quality is 0.39 which is acceptable. And the non-orthogonality is 0.79

If required, you can then move on to hex-dominant meshing.

I would suggest you to go through these tutorials, if you like

• Compressible Flow Around a Wing | Tutorial | SimScale

• Incompressible Turbulent Flow Around a Spoiler | SimScale

• Tutorial: Compressible CFD Simulation of a Golf Ball | SimScale

[adelgado_ferna]

Is it impossible in hex-dominant parametric?
