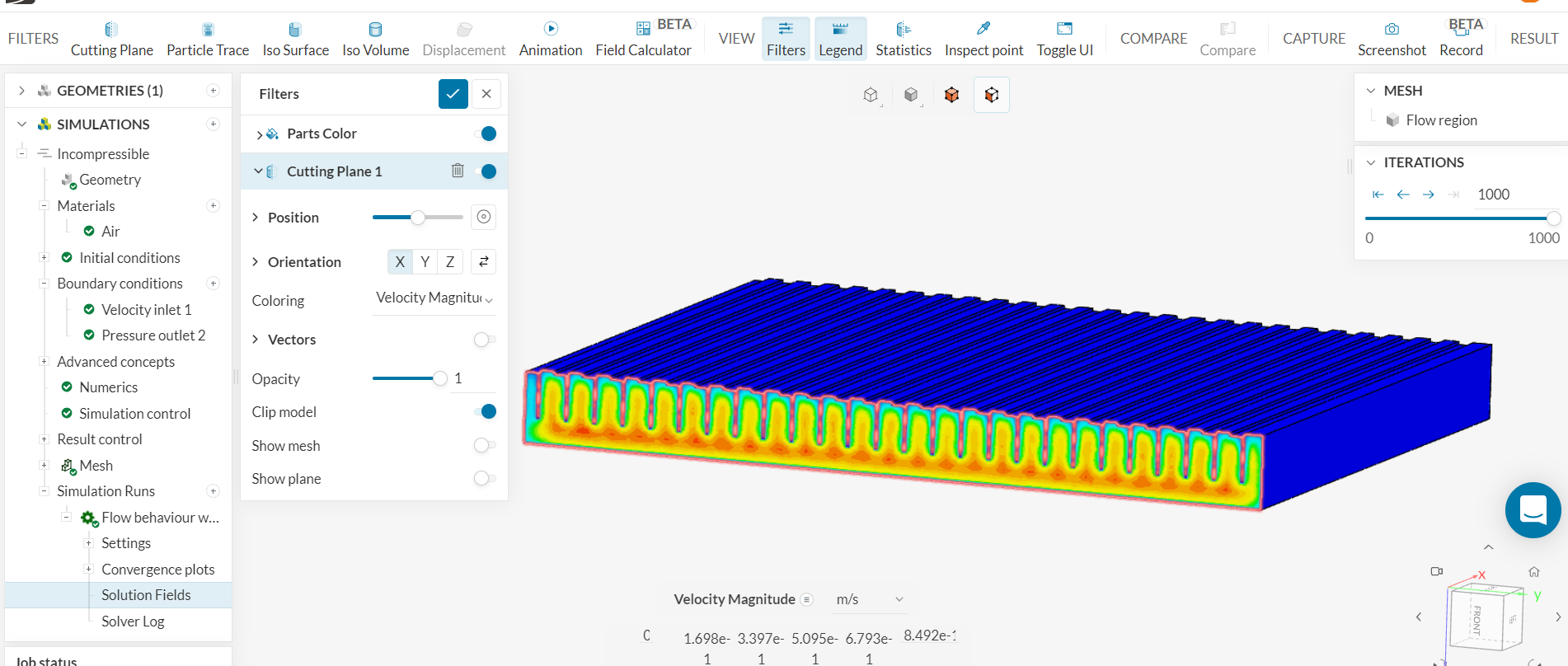

Hi yesterday i just finished the simulation of the incompressible flow of emboss shape fin around solar pv. However, i dont where to see the fluid flow behaviour in the post procsessing result

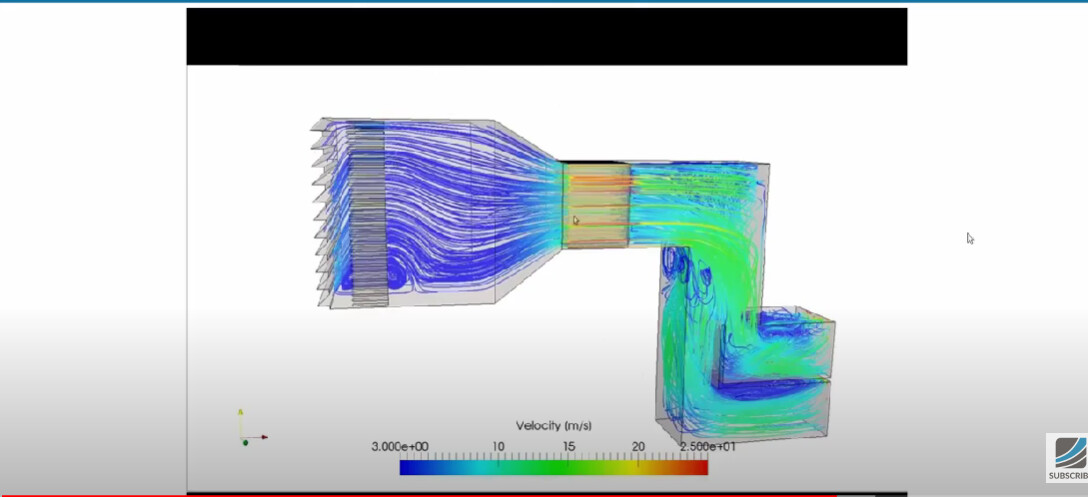

i want something like this
i want something like this
Hello @bk19110254 ,
What you are looking for is probably Particle Traces which will generate streamlines as you present on the second image to observe flow pattern.
Another alternative could be visualizing vectors on a cutting plane.
Hope these are helpful,
Kaan.
alright sir, i try look at it. Thank you very much sir
