"The import of the model did not finish on time."

Description of the project: Doing external aerodynamics simulation of a Supra Mark 5 model. Compare the results between the absence and addition of a CAD-modelled rear wing.

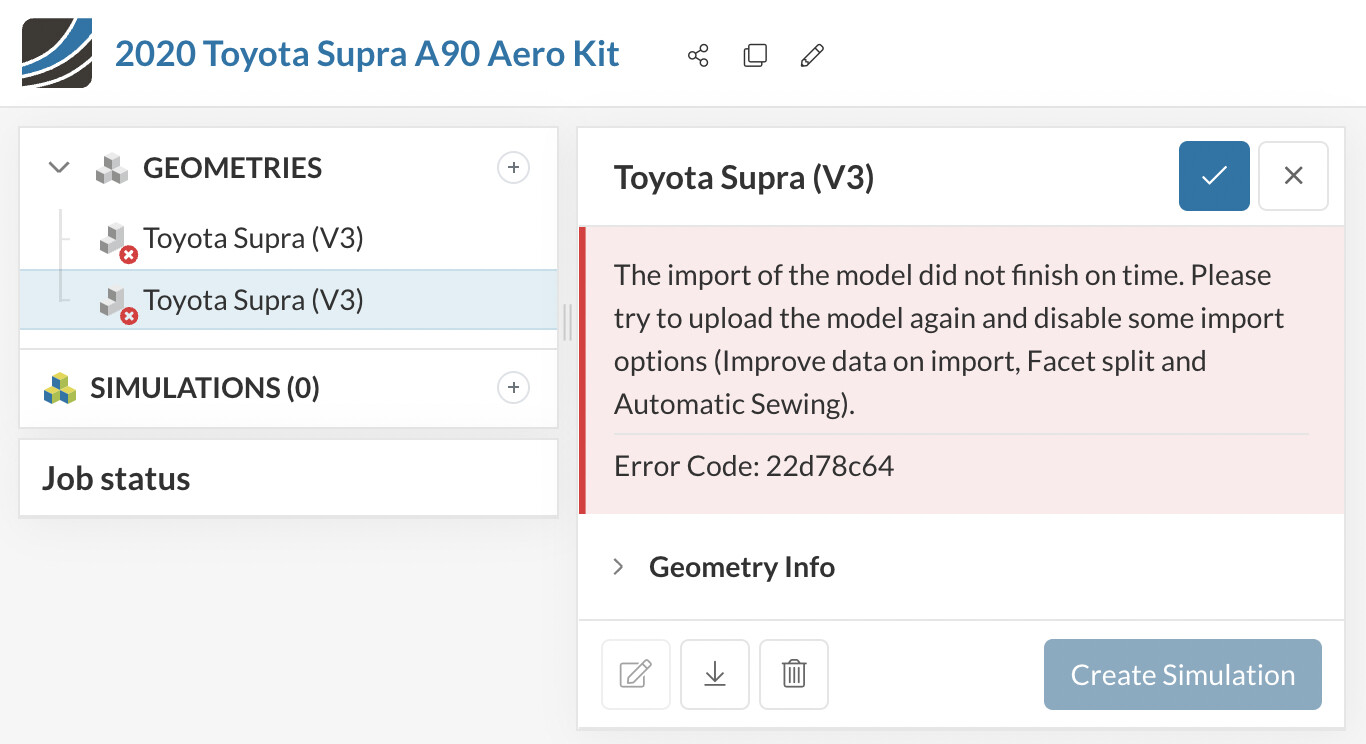

What is going wrong: I’m trying to import the Supra CAD geometry. It is going through all the stages: importing, optimizing, etc., until I receive the error: “The import of the model did not finish on time. Please try to upload the model again and disable some import options (Improve data on import, Facet split and Automatic Sewing). Error Code: 22d78c64.”

What I have tried so far:

  • Importing as a STEP file from my computer.
  • Importing as an STL file from my computer.
  • Importing the STEP file from my computer onto Onshape, then importing from Onshape onto Simscale.

Link to the project: SimScale

My first guess is that the model is too complex, but I assume that would raise its own separate error if that were the case. I’m just a beginner, though, so I have no idea.

Any help would be greatly appreciated!

Rhein

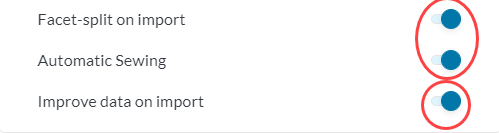

Hello Rhein, and thank you for using the Forum. There are a few other settings that you can try to resolve the issue without changing your model, such as disabling “Improve Data on Import” option while importing your geometry. You can try disabling other options as well.

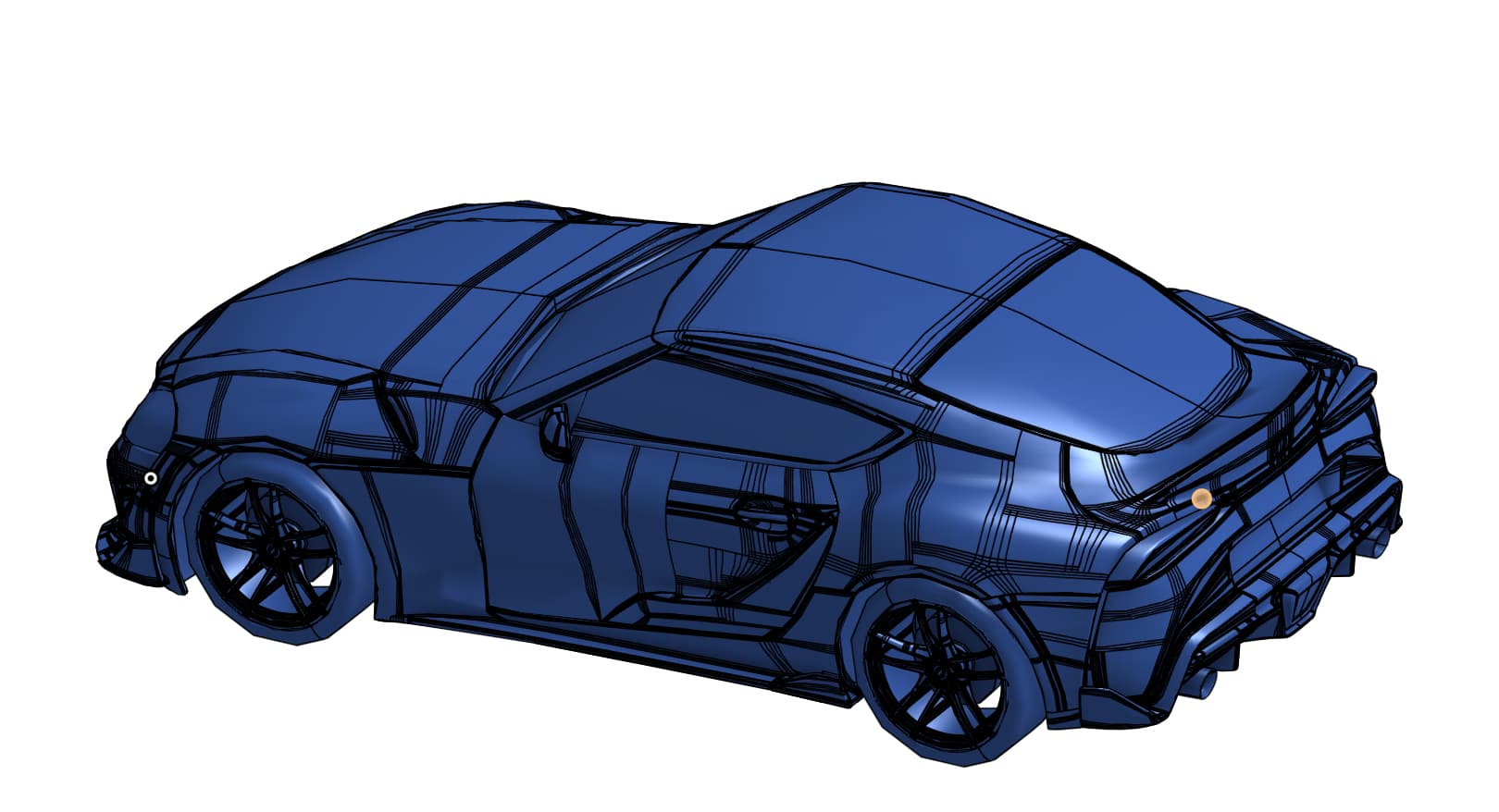

However, I’d recommend you to perform some clean-up operations before importing your model for the best practicises in CAD import, and mesh generation. I see that your geometry contains lots of small faces, which will cause you issues during meshing even after successfully uploading the geometry. Please try to merge or remove these small faces in your geometry. Here are a few suggestions on complexity reduction of CAD models while importing.
Hope this helps.

Thank you for your reply! Yeah, I feared that the geometry would be too complicated. I will make a simpler one from scratch then try again!

Thanks again!

What if you have already 1) disabled all the upload options, 2) simplified the geometry as much as possible and 3) are already only uploading a section of the full design (~25% in my case) and are still getting the error message:

The import of the model did not finish on time. Please try to upload the model again and disable some import options (Improve data on import, Facet split and Automatic Sewing).

Error Code: 244cfc04

Hi! What CAD format are you working with?

Assuming that the CAD model is not incredibly complex, have you already tried to use a different format?

I am using Rhino.

I’m trying to test airflow through perforated mesh… e.g. thousands of little holes in a thin plane.

Geometry:
Valid polysurface.
closed solid polysurface with 7683 surfaces.
Edge Tally:
7119 seam edges
16430 manifold edges
= 23549 total edges
Edge Tolerances: 0 to 0.0167974
median = 0 average = 0.000147589
Vertex Tolerances: 0 to 0.00997248
median = 0 average = 5.62939e-05
Render mesh: 7683 meshes 1834892 vertices 1383917 polygons
Created with quality meshing parameters.
Analysis mesh: none present

Hi @mgarito, could you create a new forum post with your question and post your project’s URL there? Then, we’d be able to provide better support :slight_smile:

Best,
Igor
