Hi,
I was trying to investigate my own FSAE car
Followed by
Recording
Homework Submission
Your homework is to investigate the Full car model FSAE Full Car with a radiator using the porous media approach , rotating wheels using the rotating wheel boundary condition , and rotation of the car rims using Multi Reference Frame (MRF) . For this case, the front wing flap angle of 0 degrees will be considered and the velocity of the car will be set at a constant 20 m/s.
The step-by-step tutorial below contains all of the steps for setting up the simulation in โฆ
Link to part 1 of the tutorial:
Step-by-Step Tutorial Session 3 - Yaw Angle Study (Part 1)
Introduction
Welcome to the second part of the step-by-step tutorial for the simulation of a Formula SAE full car with side wind. In this part of the tutorial we will show you the final steps for the simulation setup and we will go over the post processing of the results. Like last session, we will also go through some of the results and what they mean.
Simulation Setup (Part 2)
Numerics
After definingโฆ

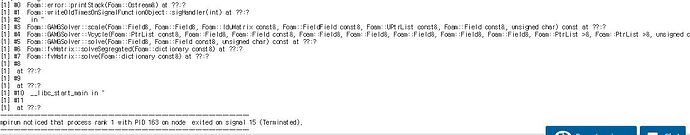

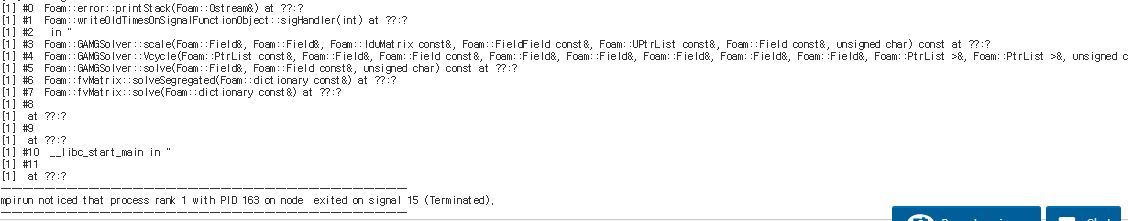

Simulation check was successful but Error occured!
I tried several settings and change meshes but experiencing same error
tried Simulation Control
End time value 1500, 5000, 6000
Maximum runtime 42000, 50000
I have no idea what to do
my project link is
1 is original and 2 is simplified mesh
Thanks!
Hi @EKT and thanks for the very detailed post!
We will have a look at that and come back to you as soon as we figured out a solution.
Best,
Jousef
jousefm
November 3, 2017, 10:07pm
3
Hi @EKT !
I did not forget you Currently trying to get a good mesh done without too many illegal faces. Getting back to you asap.
Jousef
Hi @EKT !
Have done three meshes as well as one simulation for your simplified model which can be found here: Body Testing Mesh . The same procedure can be used for your other model. Please let me know if everything works and if you need help!
Best,
Jousef
EKT
November 6, 2017, 3:22pm
5
Hi @jousefm !
Thank you so much for your reply!
sorry that I check your kind reply late
Iโm following SimScale and apply to my project.
After try several times and see what happens and reply to you again!
Thanks!
