In this project APC 11x5.5E Drone Propeller Study by simscale | SimScale, the object appears in the “saved selection” section, but for rotating zones, the component is deleted during the creation of the cylindrical volume. How do I then select the object? I hope I have made myself clear. Thank you very much
Hi,
Can you share the screenshot of the image of the surface that you wish to select? I can get a better idea of your issue

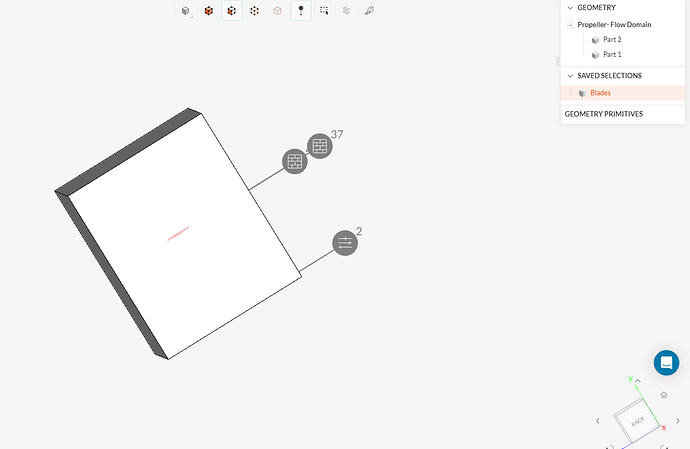

When I delete the rotor in the CAD editing section, I get the negative. But when I return to the work area, I cannot select it to get a component in “saved selection”. Have I made myself clear? Thank you very much
As I see, you wish to conduct an incompressible simulation. I would suggest you to have a single volume. Currently you have two bodies in your model.
If I understand correctly, while creating a rotating zone, you are unable to select ‘blades’ as a saved selection, is that right?
