Mesh operation failed: no information in meshing log

[pprasse]

Hello all,

I’m trying to run an Electromagnetics simulation on this project:

SimScale Login

Generating the mesh fails after ~50 seconds wall time with “0 min - 0.00 core hours” and only the following message in the meshing log:

****************************************************************************************************************
SimScale incorporates Simulation Modeling Suite(TM) software by Simmetrix Inc. © 1997-2024. All Rights Reserved.
****************************************************************************************************************

There is no more output in the meshing log.

What am I doing wrong?

Thanks!

Best regards,

Patrick

[RicardoParis]

Hi!

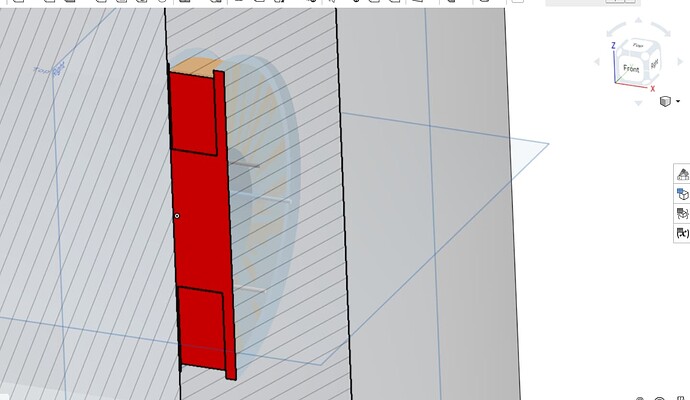

As a starting point, I would suggest removing the interferences between the solid parts and the flow domains (e.g. with Boolean>Subtract operations). Currently you have more than 1 volume occupying the same space.

Cheers
