example of application Hello all, I am designing a custom TIG welding cup for reactive metals such as stainless, inconel, titanum, etc… It is a unique design and will take my custom diffusion design to evenly disperse the argon… my question is… How do I insert and account for the screens refinement correctly (this screen is a stainless steel mesh screen used for diffusion inside the TIG welding cup) see vid at top"

Here is a link to project
xcvdxg | SimScale Workbench

2

Hey there,

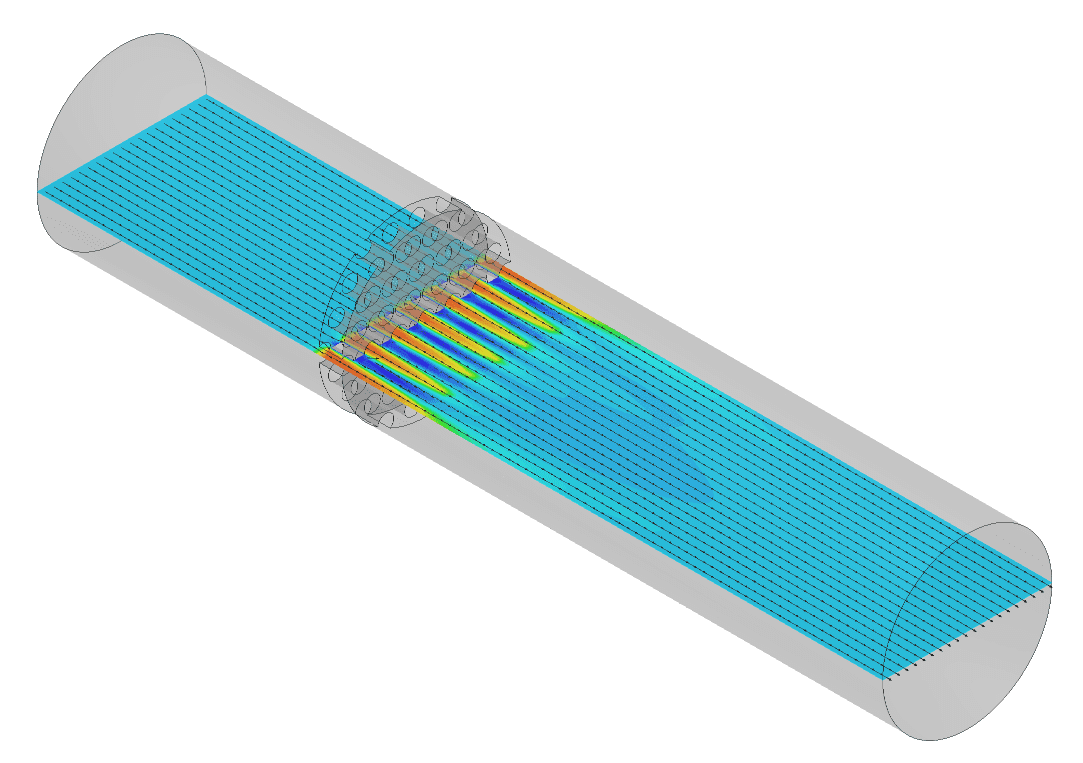

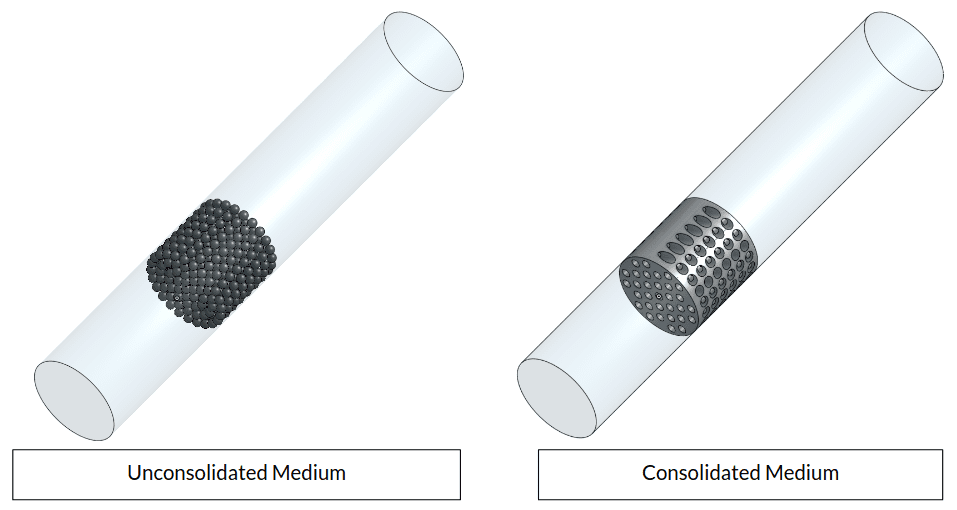

I think our porous media is a great candidate to model your mesh filter:

Otherwise, if you want to add the mesh in the geometry and solve it in detail, the model can turn out too big to be practical.

3

Awesome! thank you!
