L Bracket Design - selecting the appropriate mesh size and type

Project Spotlight
1

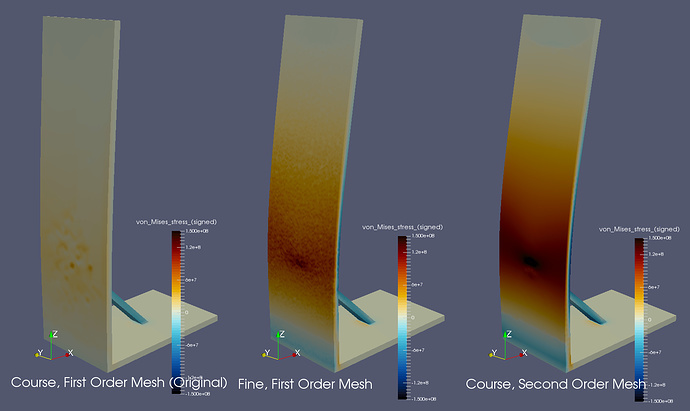

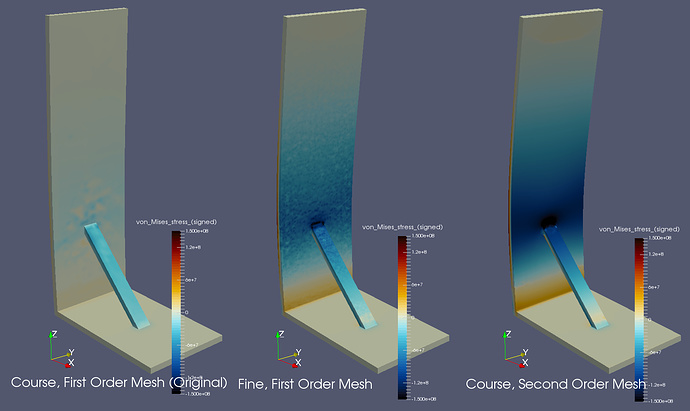

This project by @BenLewis provides an excellent demonstration of the importance of selecting the appropriate mesh size and type for doing a stress analysis of a metal bracket analysis.

The full project is available in the Public Project Library :
[!!!THIS LINK IS NO LONGER AVAILABLE!!!]

\underline{\textbf{Visit our SimWiki by clicking on the picture}}

4 Likes
2

I would add a mesh convergence study. Seems like a singular point at the connections between the bracket and the stiffener.
