I want to simulate and see magnetic field variations inside a ring magnet.
But whenever I place a STL model with air inside the cavity of the ring magnet, I don’t see any magnetic field value using statistics feature in post-processing.

I have to use magnetic disc or any conductive solid with permanent magnet of same magnitude inside the cavity of the ring magnet to visualize any magnetic field changes. Please help!!

2

Hi @sgm99,

Thanks for posting your question. Could you please post the project link that you are referring to here?

best,

3

Yes the link is here. https://www.simscale.com/workbench/?pid=1666180243056950385&rru=290d34b3-48af-4861-9f42-8581bc30188b&ci=18d613c8-678e-412e-ab8e-b33207f7b857&mt=SIMULATION_RESULT&ct=SOLUTION_FIELD. Also the screenshot of the same as follows.

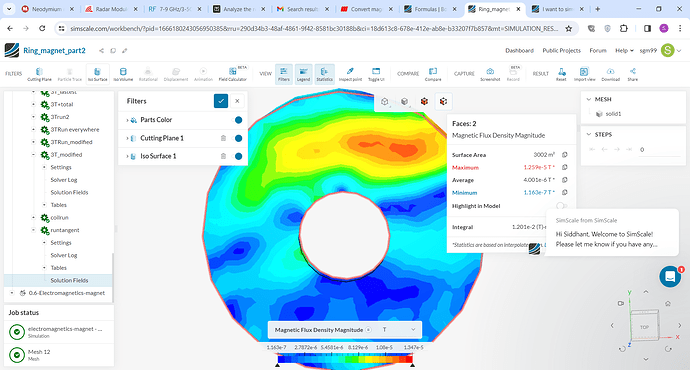

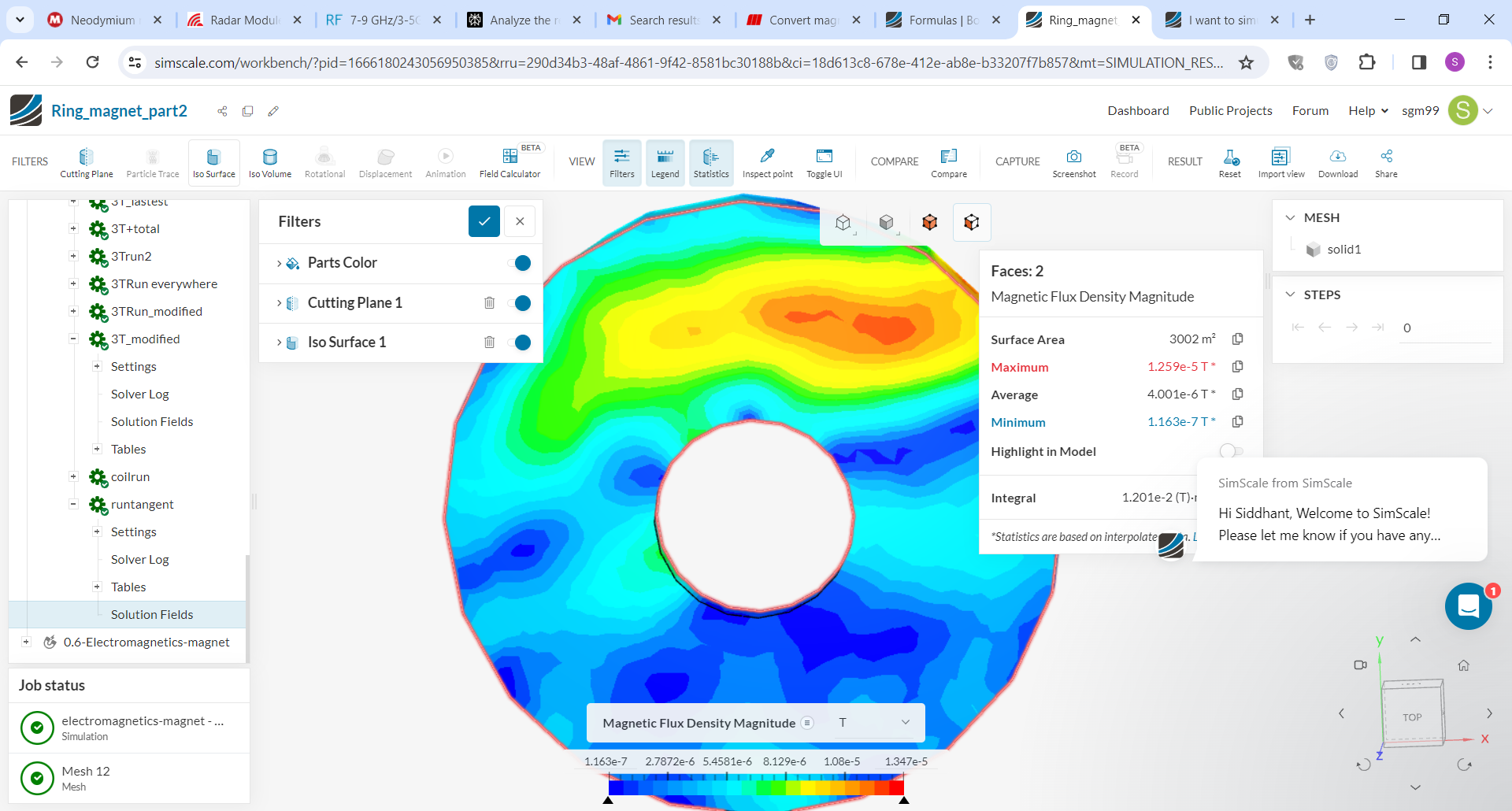

problemscreenshot
problemscreenshot1920×1030 356 KB

4

I want the reading inside the cavity of the ring magnet as shown above. Help me with that!

5

Hello Goncalves. Are you here?

7

Hi again @sgm99,

I see that you have selected only one solid closed body as a coil, and the coil must be divided into 2 parts to be correctly assigned in the simulation. So that being the problem, the solution is just doing a CAD preparation at first, dividing your coil by 2, as simple as that. To know more on how is an usual electromagnetic setup with a divided coil, please take a close look at this page, and try to compare the setup of the tutorial with yours to use it as a guide.
