Haven't reach convergence even after 2000 iterations

Project Support
1

Hey everyone,

I’m having issue with convergence. I’m using Academic License so if you’d like to see the simulation, let me know.

My simulation details:

  • Steady-state analysis
  • Incompressible External Flow
  • Turbomachine
  • Boundary Conditions: Velocity inlet, Pressure Outlet and Symmetry at all sides.
  • MRF Rotating Zone
  • Standard Mesher

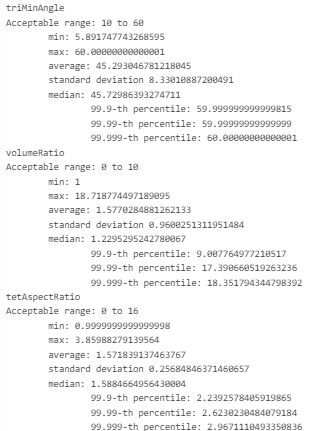

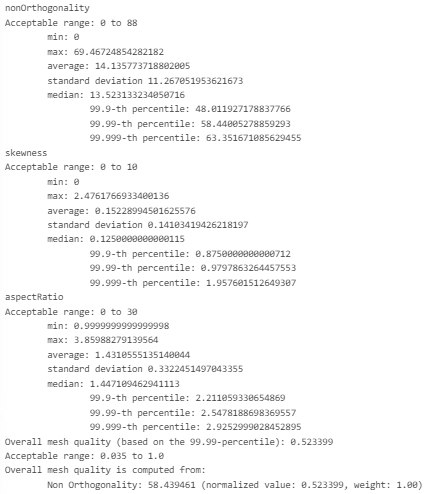

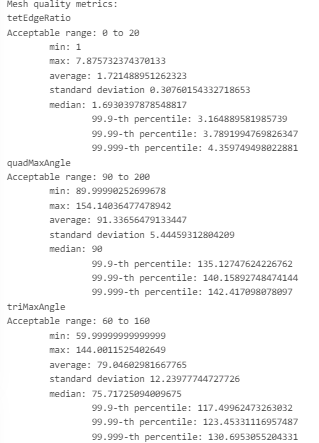

I think, I already have a mesh with fairly nice metrics as you may see in the pictures below. About 8M cells. But, when I run the simulation, the values are not stabilizing. I’ve attached some plots down here from my latest simulation as well. The important parameter for me is torque.

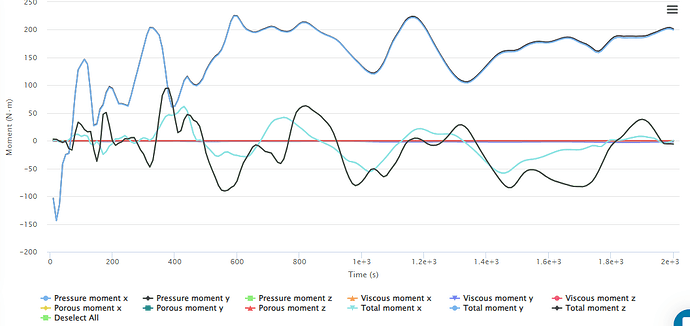

MOMENTS PLOT

image1056×500 57 KB

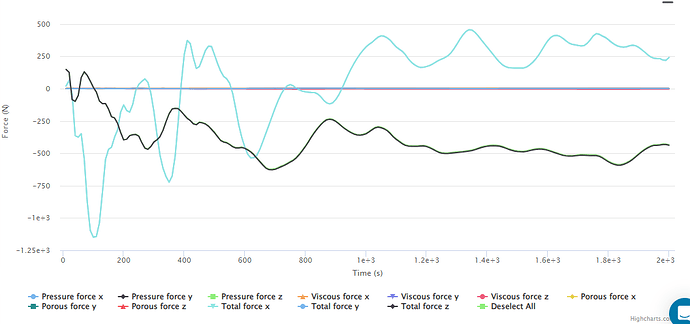

FORCES PLOT

image1057×497 45.1 KB

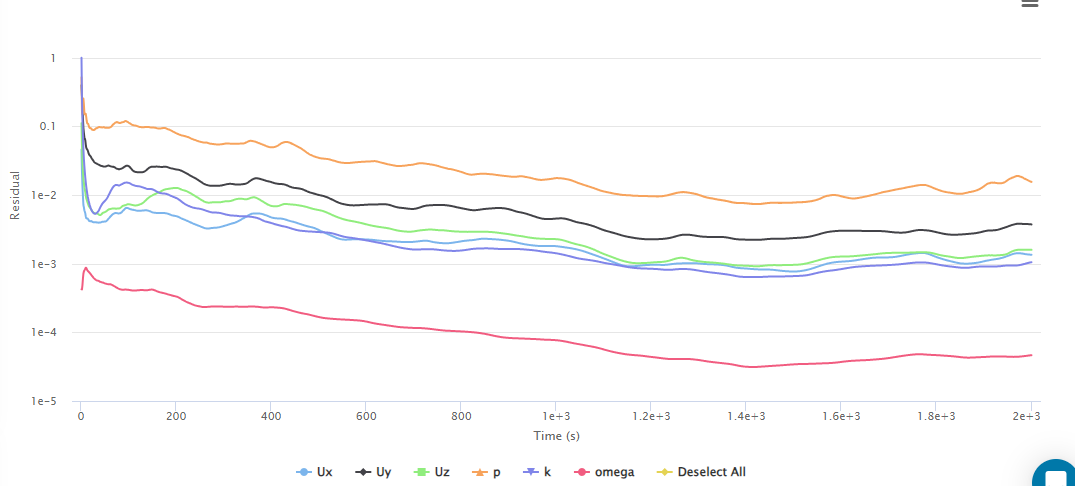

RESIDUALS

image1075×486 35.5 KB

I’m currently running a 3000 s simulation. Do you think it will converge? Does running above 2000 iterations make sense? Previously, did 1000 and 2000 s. Is there a way I can improve convergence? I did notice that my y+ has been decreasing when I’m using 2 BL instead of 1. Do you think perhaps this has something to do with convergence as well? Honestly, I want to optimize my simulation runtime. Running it for 2000 s did consume almost 100 cores. Can someone guide me on this?

Thanks in advance.

2

Latest Update:

My moments plot look like this after 3000 iterations. It’s converged right? How can I reduce the simulation run?

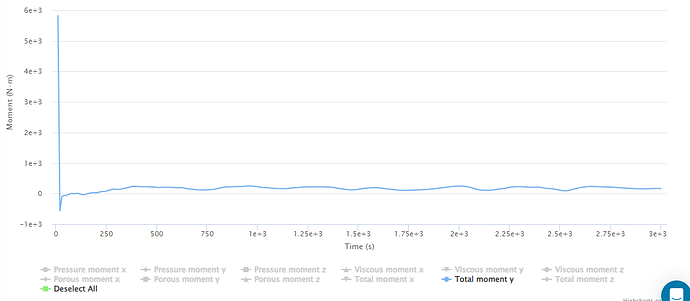

image1077×470 21.5 KB

3

Hi @edwintjy thanks for posting on the forum! Sorry for the late reply here

The last plot you’ve shared looks converged, however maybe a better tracker for that would be some sort of area average on the inlets/outlets.

Also, check out these resources on simulation convergence:

Since your mesh’s quality looks alright, maybe there’s an issue with your boundary conditions or some other parameters! If possible, please share your project’s URL for us to take a closer look :slight_smile:

Best,
Igor
