F1 first tutorial meshing errors

SimScale Workshops F1 Workshop
1

Received those meshing error in the F1 first tutorial:
…
2016-03-24 11:03
Illegal triangles were found after surface tesselation. There could be a problem with the CAD geometry. Trying to proceed anyway.
2016-03-24 11:03
The tesselated surface is not closed. There could be a problem with the CAD geometry (such as self-intersections). Please inspect your geometry. Trying to proceed anyway.
…

The meshing has been already running 45 minutes, not completed yet. Should I be concerned?

2

I’m afraid you should…

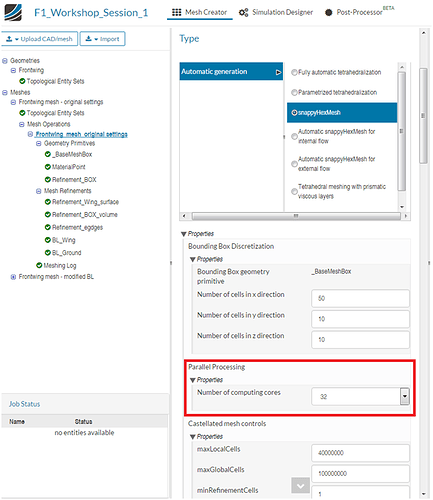

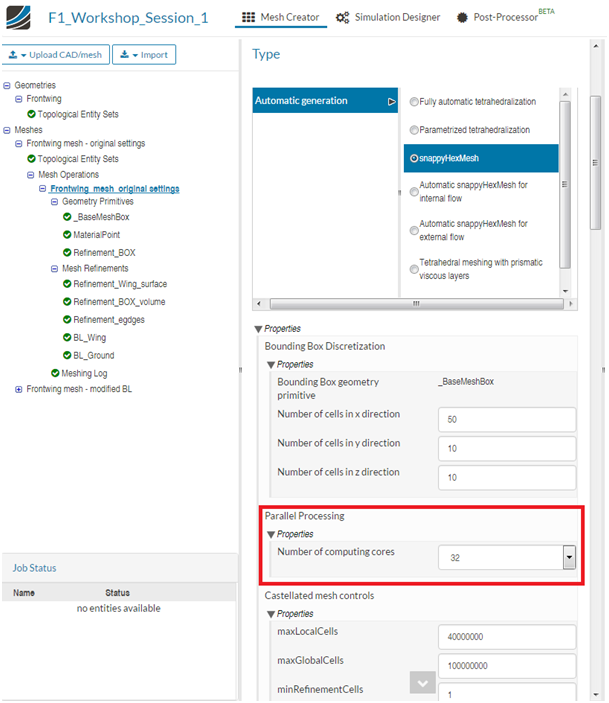

My question to you: have you set Number of computing cores to 32 in mesh operation settings?

Pasted image609×703 111 KB

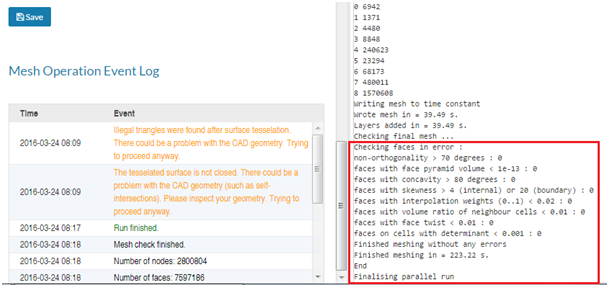

Further, I think you don’t have to worry about the warning/error message you received. It’s quite common for more complex geometries – the ones with more complicated surfaces. What you should take a closer look at though is this part of your meshing log:

1 Like
3

Thanks, I found my setup error elsewhere: edge refinement distance = 1 rather than 0.001. Meshed OK.
