CAD issues for CFD analysis

lisandromaders · July 24, 2015, 1:00am

Hello everyone,

first of all, congratulations for the platform, it is robust and very friendly.

I am trying to perform an external CFD flow simulation for the FORMULA SAE competition. I have the CAD files from SolidWorks and I am facing a lot of problems in the mesh generation. I always tried to use the Automatic Snappy Hex mesh generator and did not succeed. I will explain the issues I had for each format file.

My geometry has some different parts, like the careen, pilot, motor, wheels, etc… but everything in the same assembly and, consequently, in the same STEP / IGES file.

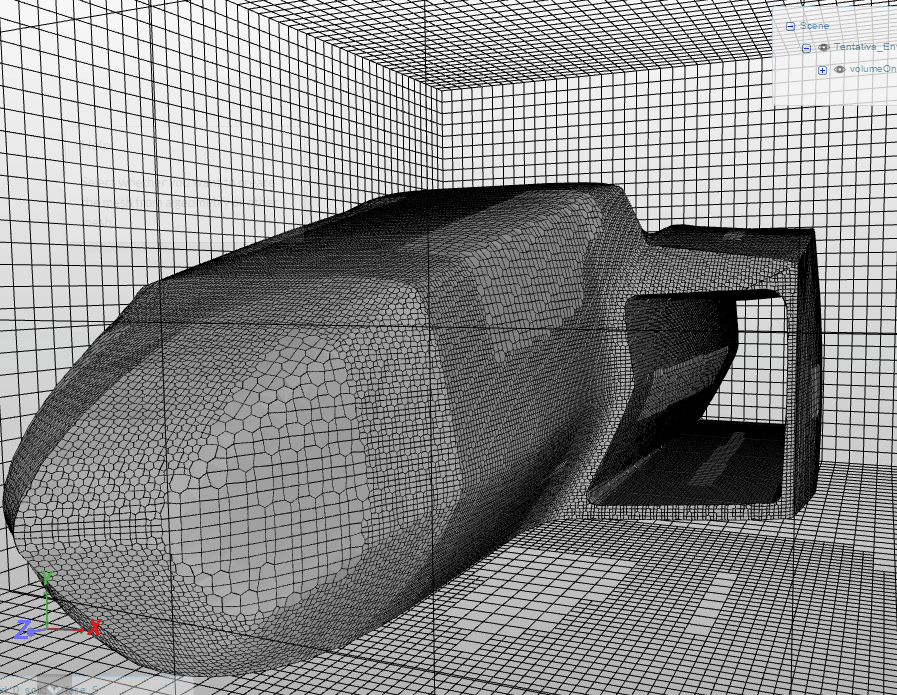

STEP format: It recognizes all the geometry and when I run the mesh, it seems the mesh generator only recognizes the careen, because it only meshes the careen. The other parts do not appear meshed. I tried a lot of approachs, tried to save every single part into step format, re-open it as solidworks part, make an assembly again and export it to STEP, but always the mesh generator does not recognize the other parts. I checked and all my parts in SolidWorks are solid, and the ones which were not I made changes in order to make it solid.

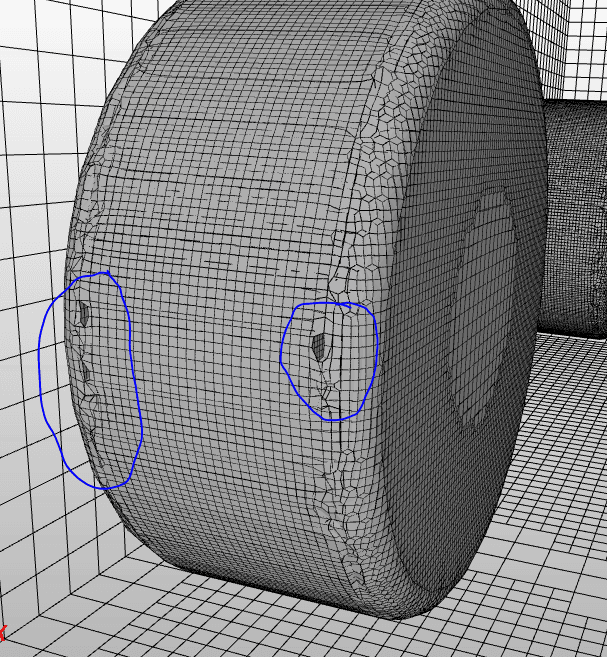

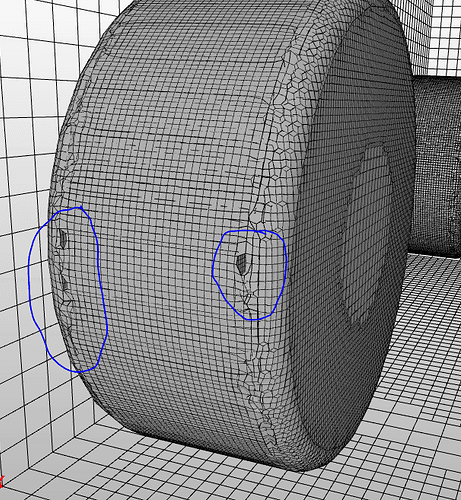

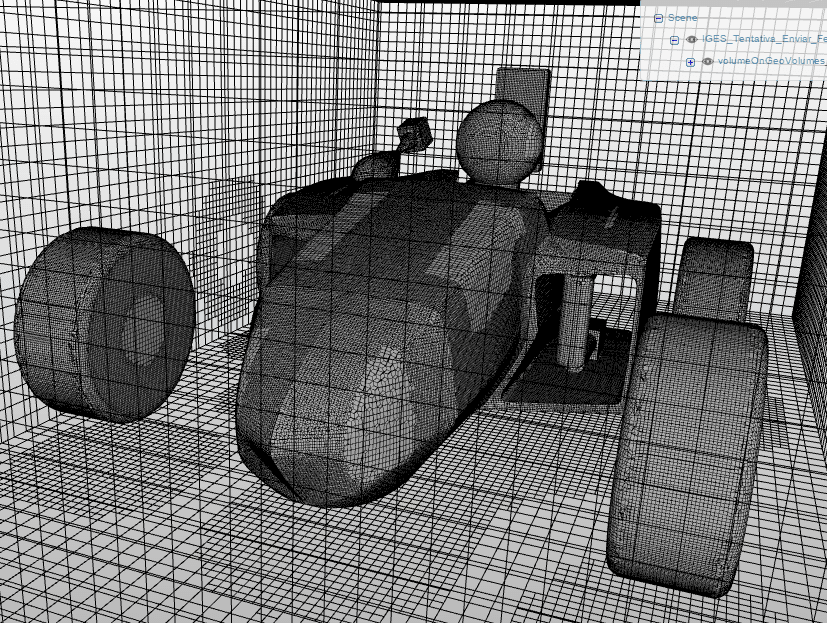

IGES format: it recognizes the geometry well, with no gaps and no weird surfaces at all. However, when I generate the mesh (it recognizes all the parts now) there are some gaps in the careen surface and, consequently, it generates fluid inside the careen, which is wrong. It was supposed to have fluid around the car, not inside it. I cheked my CAD file a lot of times and I could not find anything wrong with it. Also, the geometry platform form SimScale seems to recognize all the features very well. I thought it could be due to a very coarse mesh which would not be capturing the surface features, but I did a fine mesh and the problem kept happening.

Well, I tried so many different approaches in SolidWorks and also using diferent mesh genereators in SimScale, but I did not succeed. I hope some one can help me. I am looking forward to share this project with you all.

I hope anyone can help me.

Best regards,

Lisandro Maders

dheiny · July 24, 2015, 9:27am

Hi Lisandro,

first of all: awesome project! It will be great to see the aerodynamic analysis of it! Happy to help here! A lot of SimScale users are using SolidWorks for CAD work, so the CAD system you are using should be fine. A quick first question:

Are the single parts in your SW assemblies exported as Solids? You can check that in the operations log after the geometry upload. It should say something like “Number of solids: X, Number of shells: Y …”. Are there only solids or also shells? The reason for the question is, that the hex dominant mesher needs a watertight CAD model to work properly. The best way to ensure watertightness is to only have solids in a CAD model.

Is there a way that you could provide me with the CAD model itself to check on it in detail? E.g. you could share with me your SimScale project in which these problems appeared. That way I could provide help quite simple. If this is not possible, we’ll try to tackle it via this forum thread

Looking forward to see some streamlines around this race car!

Best,

David

lisandromaders · July 24, 2015, 11:30am

Hi David,

In my IGES file I do not have only solids and I have the gaps, but all the parts are recognized by the mesh generator. With the step file, I have only solids, and apparently the surface of the car is ok, but the other parts are not recognized.

I can surely share this project with you, how can I proceed to do this?

Regards,

Lisandro

dheiny · July 24, 2015, 11:47am

Mhm - for the IGES file this could explain why the mesher also meshes the regions of the model, that should not be meshed. There might be a small gap in the surface and therefore it’s not watertight (just a suspicion - will check on it in detail). You can either create a public link and post it here (everybody can then get a copy of your project via this link) or you directly share it with me via my email address. Looking forward to have a look at it!

Best,

David

dheiny · July 24, 2015, 5:12pm

@lisandromaders,

thanks for providing me with the project - I checked on it in more detail and I think I found the reason: The solids in this assembly do intersect with each other. This means there are certain faces that are overlapping with each other. For the hex-dominant snappyHexMesh mesher on SimScale this is a problem. The reason why this is a problem is a bit longer to explain and I am thinking of putting an article together for the documentation - also @Maciek wrote some interesting questions regarding snappyHexMesh in this post.

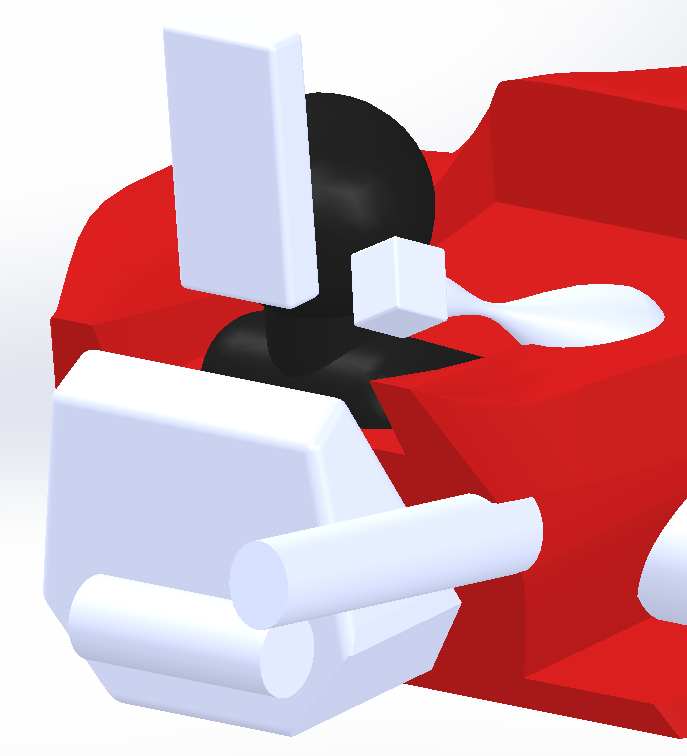

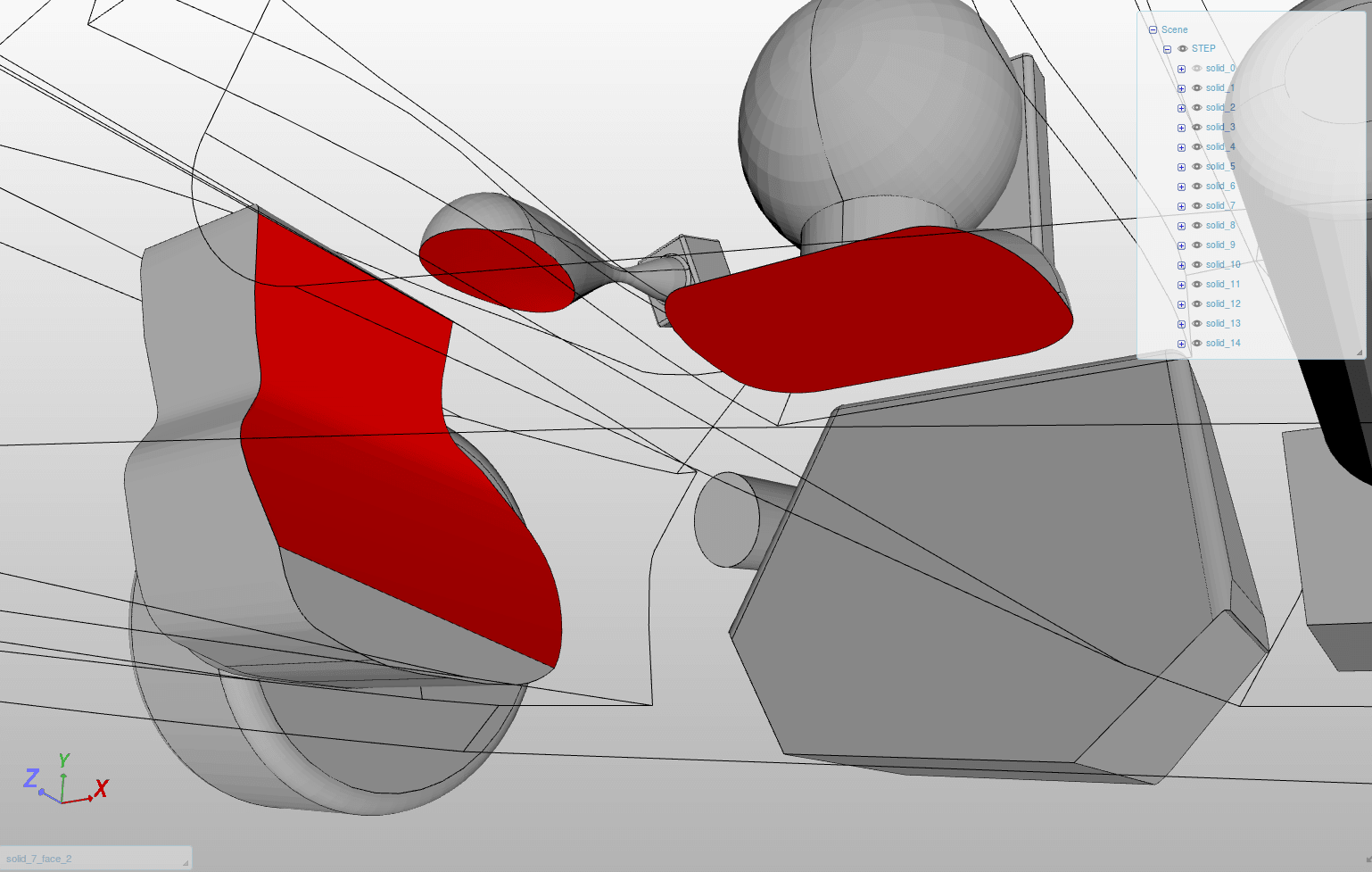

For the time being let’s first concentrate on how to fix this: I think it’s these faces:

They do exactly overlap with the actual chassis (hidden in this image). This shows it from another view:

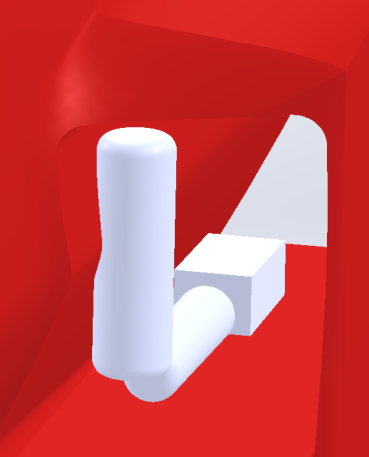

This solid basically has one face that is completely overlapping with the face of another solid - here it’s visible:

This becomes a problem at one step during the mesh generation, so the quickest way of fixing this would be fusing the solids that do overlap in such a way and uploading it again. So you could look if SolidWorks allows you to combine/fuse (a boolean operation) those solids. That way you would get rid of these overlapping/intersecting faces. I quickly fused them in my CAD system (another one) and exported it as an STL (which sometimes is easier to work with, but you do loose some capabilities, such as addressing a single face etc.). But then it worked (but the mesh could be a bit finer ):

Did that help? Let me know if you have more questions. Looking forward to see the aerodynamic analysis of it

lisandromaders · July 24, 2015, 6:40pm

David,

fist of all, congratulations for your support, that was incredible. You were quick, effective and clear.

I understood the problem, I used the “cavity” feature of my CAD tool to cut the regions that were intersected by the car. That’s why there were overlapping regions in SimScale geometry. I did not know it was a problem for SimScale mesh generator.

I will fix it in the weekend, generate a proper mesh and put the feedback here. Thanks a lot!

Regards,

Lisandro

dheiny · July 25, 2015, 6:13am

Lisandro,

glad I could help!

So if I understand the “cavity” feature correct, that was a good idea. But after applying it fusing these parts should be the final step before uploading it to SimScale.

The detection and at some point also the healing of such properties in a CAD model is a current topic for the further development of the platform. So whenever you encounter such a situation, let the forum know about this. That way we can steer what kind of things the healing/cleanup should detect and potentially fix.

But now: Happy simulating ;)!

David

EnriqueKeelWit · July 30, 2015, 6:42am

It’s great to see this kind of topics!

I’ve been on a Formula SAE Team and I faced that kind of problems and when I saw your question I knew the problem was the intersection of different solids (the same happened to me!) but I have seen that dheiny has solved it perfectly.

I hope you have great time on the different competitions! And I think it would be great if you tell us how your simulations advance.

dheiny · July 30, 2015, 6:14pm

@lisandromaders,

thanks again for providing me with the project. Our CAD&Meshing team is constantly looking into how the CAD-to-Mesh workflow can be made more robust and reliable and they have multiple improvements and new features scheduled for this year. Yesterday we deployed an update of the CAD handling infrastructure that will also improve the robustness of the hex-dominant mesher. My colleague @arafat_ist therefore quickly tested it with your CAD model which seems to work nice:

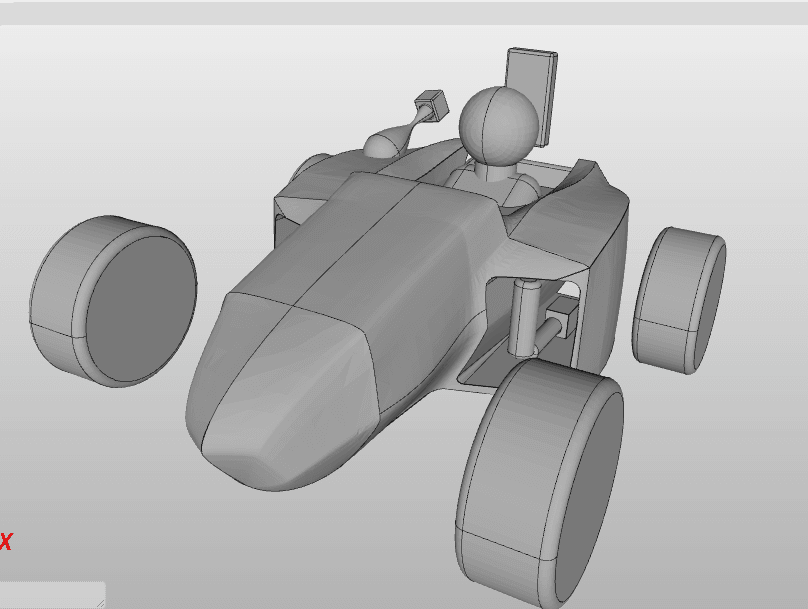

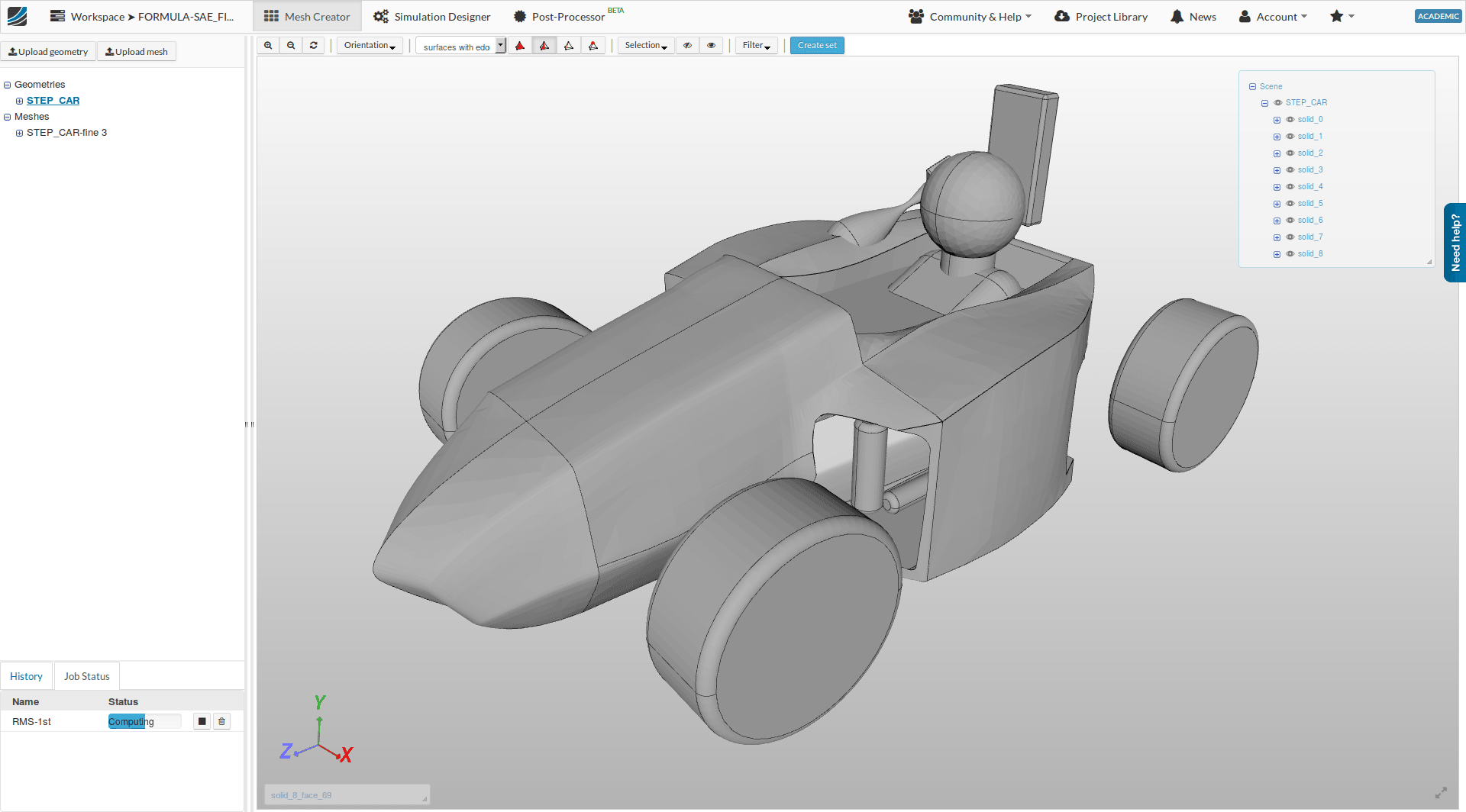

Initial CAD:

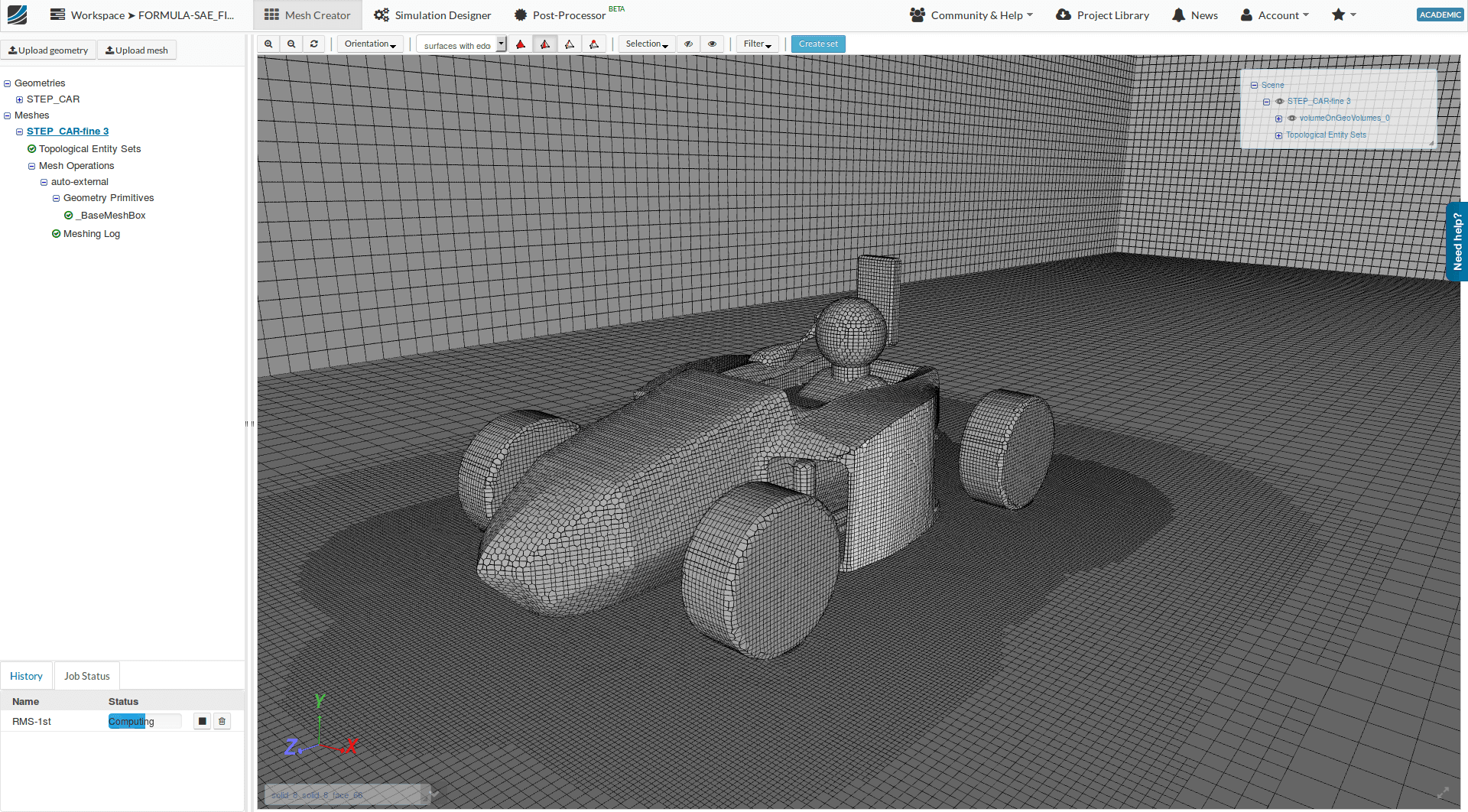

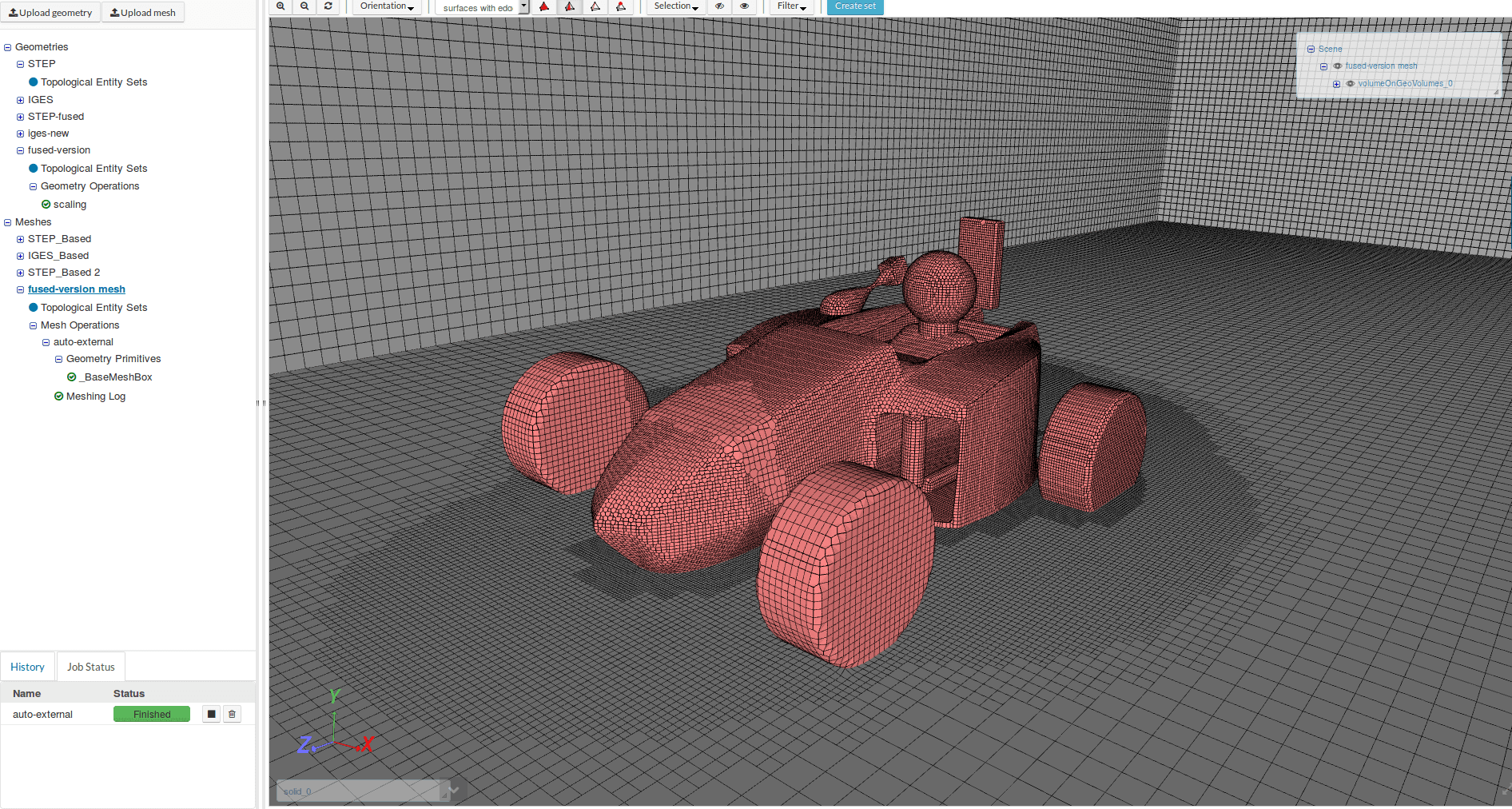

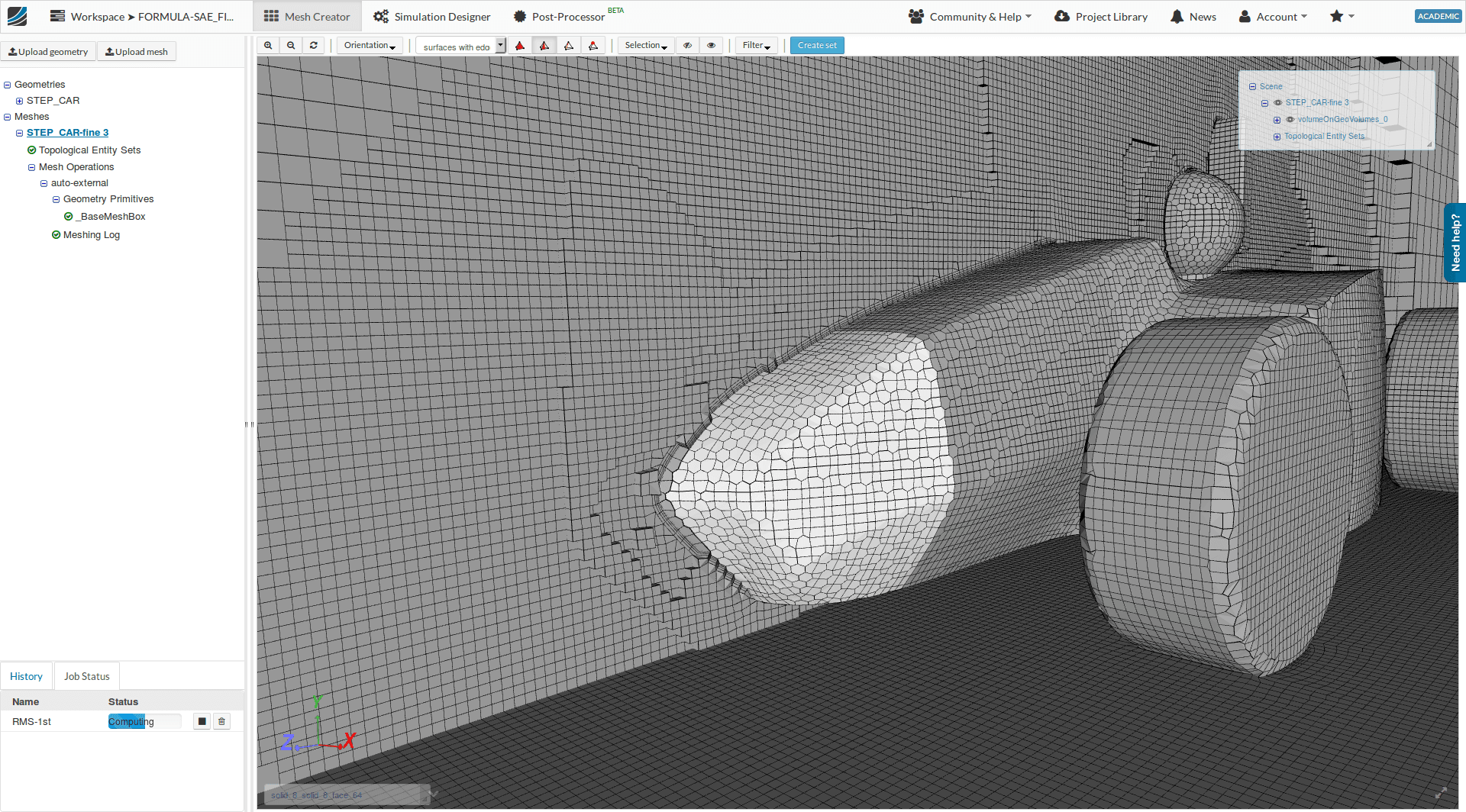

Automatic hex-dominant mesh below. The mesh would need more attention (e.g. using the manual mesher, refining the wake region etc. - visible in the residual plots) but Ali was mainly interested how the geometry is handled by it and it worked smoothly.

Clipped view showing the refined layers:

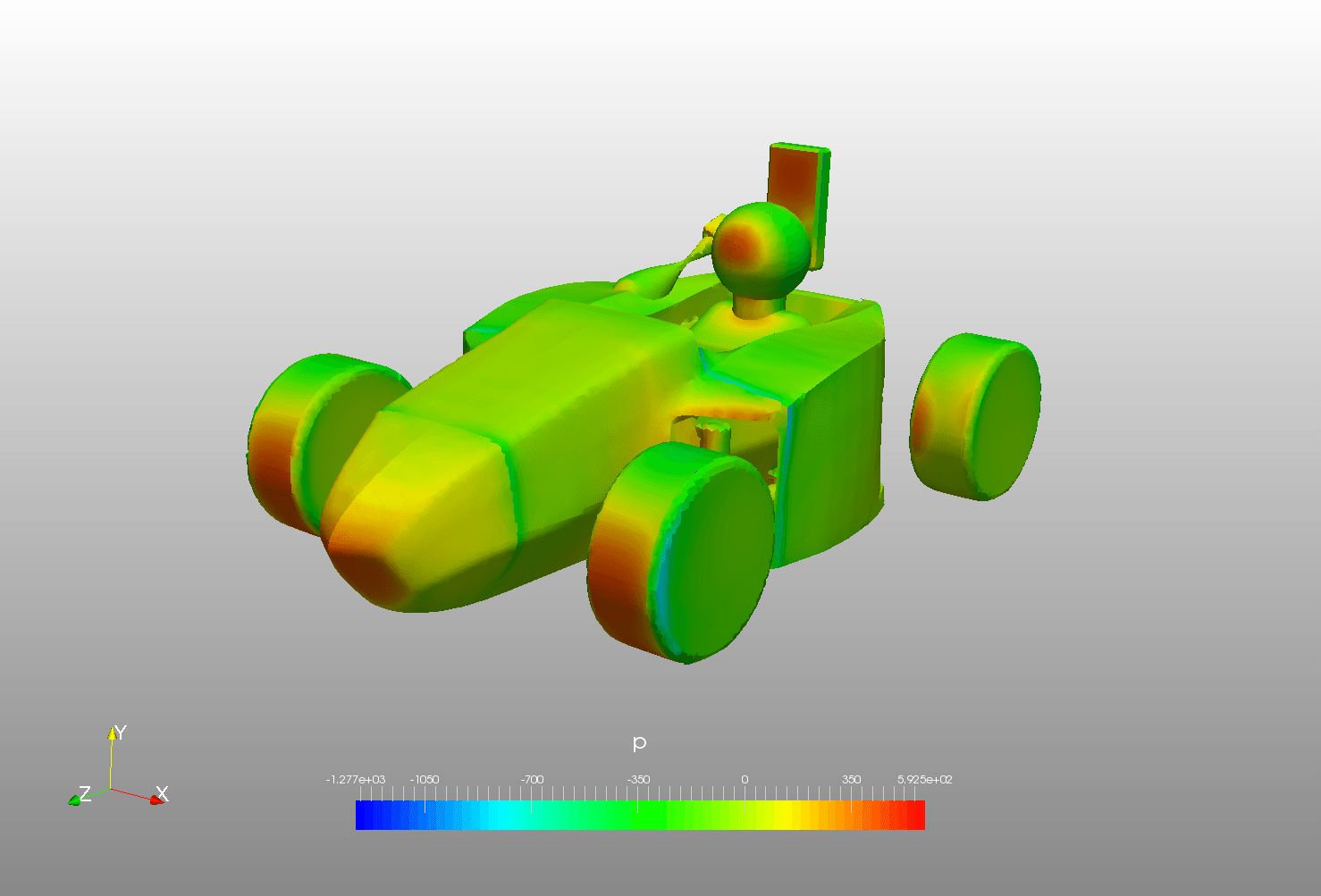

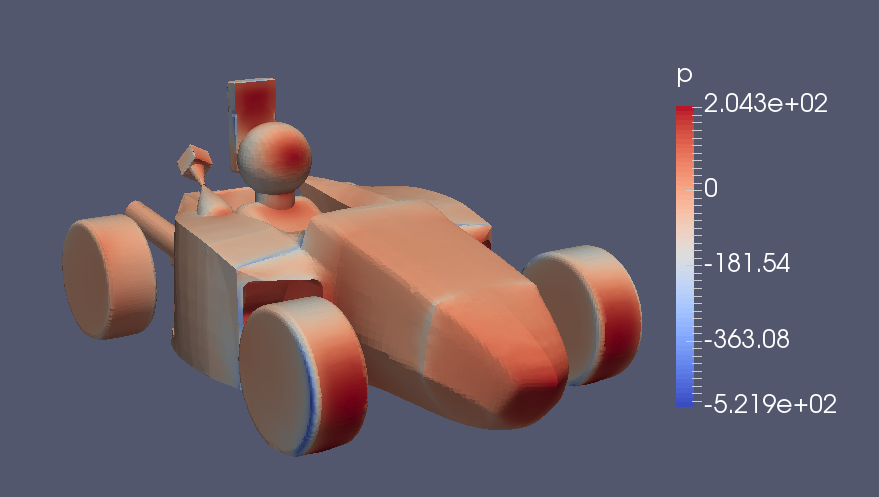

Some very quick post-processing of some initial results - not really analyzed in detail. Pressure field:

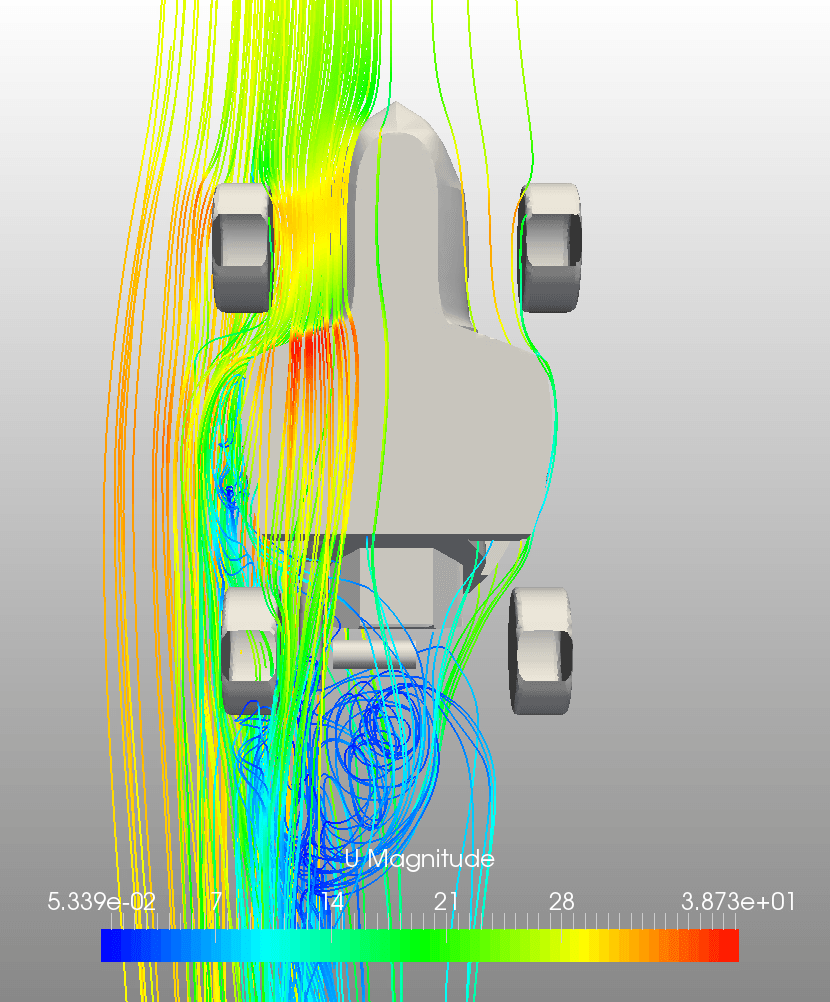

Some streamlines:

More streamlines:

I just shared you the project for you to continue. It would be great if you share with us the progress!

Happy Simulating!

Maciek · August 3, 2015, 12:47pm

Hi @lisandromaders I’d like to add a few words to this discussion.

Well, for me such problems are nothing new and given my experience I would recommend:

1. Check geometry in your CAD program – I know, it’s obvious, but to be absolutely sure your model is clean do double check, which is:

create your geometry (whatever it is)
export it to .step file (or any other)
reimport it by your CAD system and check if everything is ok; what’s more, import assembly as a part file (!) as in CFD we need a coherent volumes without zero thicknesses
export again to the same file format
import to SimScale

2. Remember to place Material Point in sensible location.

3. Now setting mesh setup try to focus on features yourself – don’t leave everything to the program.

4. Further, try to use Surface Refinement instead of Edge Refinement. Why? Because Surface Refinement is focused on surface mapping while Edge Refinement refers to edges length.

I know it may sound funny (strange), rough or even patronising, but this is my way and it works (mostly ). Sometimes when you work with really complicated surfaces your CAD software may be unable to transfer sophisticated shape to different format. – It can even be unable to reimport properly what it exported (!). Bare it in mind.

In such situations your geometry imported to SimScale Mesh Creator may contain holes (cracks at the edges). It is still possible to mesh such geometry, but you have to increase toleration factor for mesher mapping. I can’t find such feature here, but the thing is you have to “tell” the mesher it should ignore elements (features, holes, cracks ets. everything) that is smaller than size you set. Therefore, if you use Edge Refinement (which I guess you set at the higher level than Surface Refinement) program will try to identify all edges that fit to this size (in practice really small / short edges) and will try to mesh them. And if the smallest (the shortest) edge for level refinement you set is shorter than the gap between two surfaces, than interior will be flooded. Below you have a very simple example:

INVALID GEOMETRY (box dimensions 100x100x100 [mm] | gap size 5 [mm])

PROPERLY DONE MESH - DOMAIN

PROPERLY DONE MESH – BOX

PROPERLY DONE MESH – CUT

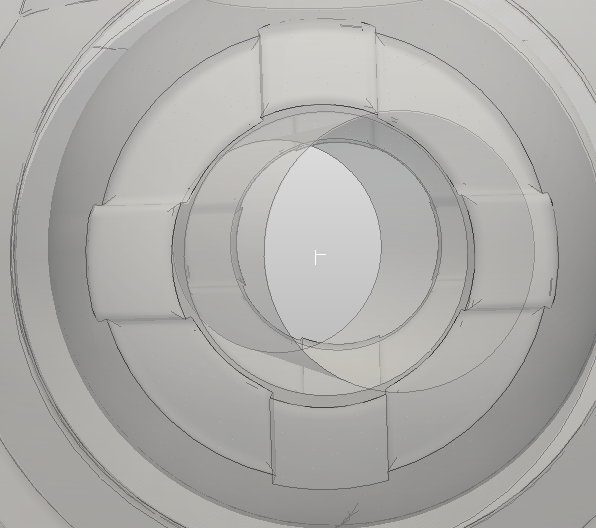

IMPROPERLY DONE MESH – DOMAIN

IMPROPERLY DONE MESH – BOX

IMPROPERLY DONE MESH – CUT

Naturally both meshes based on the same input geometry.

dheiny · August 4, 2015, 6:13am

@Maciek,

great - thanks for sharing! Indeed, the hex-dominant mesh operation is quite robust and “forgiving” even if the CAD model is not 100% well defined. Nice examples! I like especially this hint:

I’ve seen it quite some times, that a CAD model appeared to be fine in the native environment but once exported in a foreign format (e.g. stp) and imported again, one could see that some things were not well defined. Therefore +1 for this hint ! As a side note: Support for more native CAD formats is being worked on to provide more options/flexibility when bringing CAD data into SimScale.

lisandromaders · October 9, 2015, 10:52am

Hello David!

As I told you, I would give you the feedback of this simulation as soon as I finished some tasks I needed to do.

Just to introduce something amazing: this simulation was part of the RS Racing Formula SAE team, from Federal University of Rio Grande do Sul, Brazil, which reached the 2nd place in the National Formula SAE competition and conquered a vacancy in the International Formula SAE competition that will happen in June, 2016, at Lincoln, USA!!

Well, the simulation was quite simple in technical terms, and the objective was basically to predict the drag and down-force coefficients of the car. Here is some images of the presentation we did there:

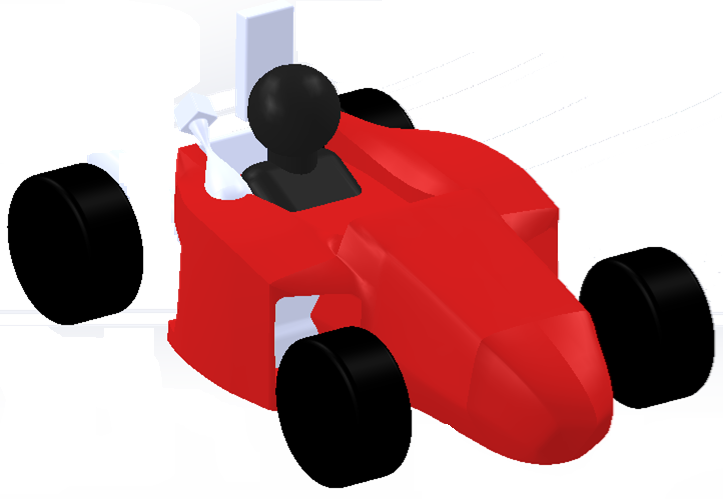

1. Geometry was made in a CAD software

2. Some simplifications were made to reduce issues in mesh generation, like rounding motor,battery and cylinder surfaces.

3. Imported geometry into SimScale platform.

After having some issues which are related to this thread “CAD issues for CFD analysis”, everything was properly supported by SimScale team and the geometry was read fine.
4. Mesh generation

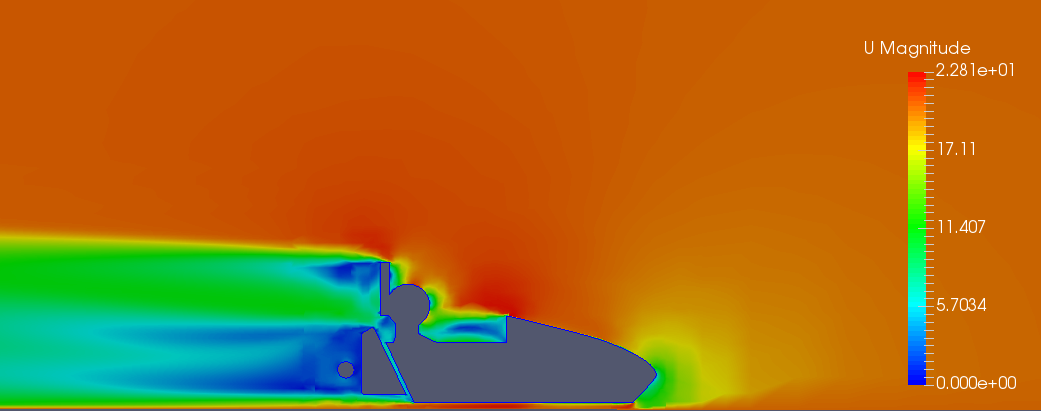

5.Results
The Cd obtained for 20m/s was 0.52, and car had lift instead of downforce of 0.16. That shown us the car need some improvement in its aerodynamics, since in Formula SAE competition having downforce is much more important than having a small drag value, once there is not too many straight sections and the velocity is not that high.

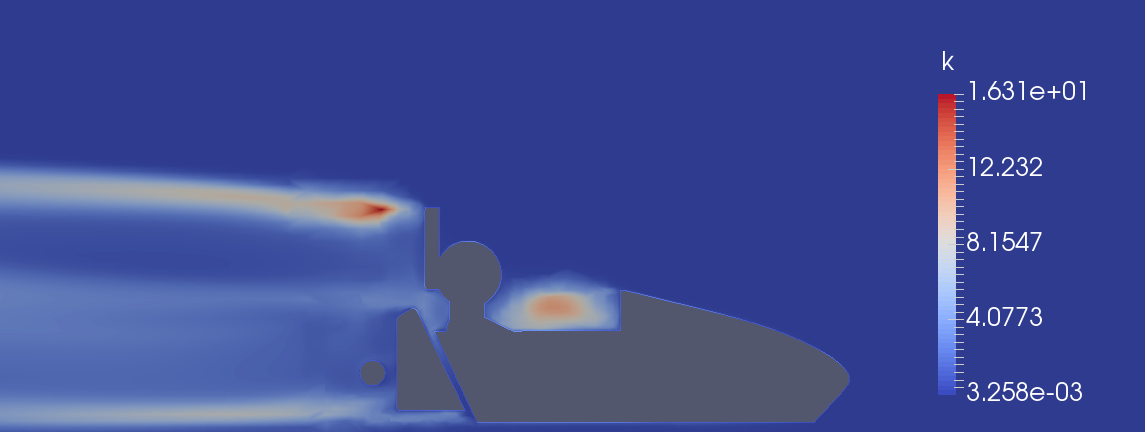

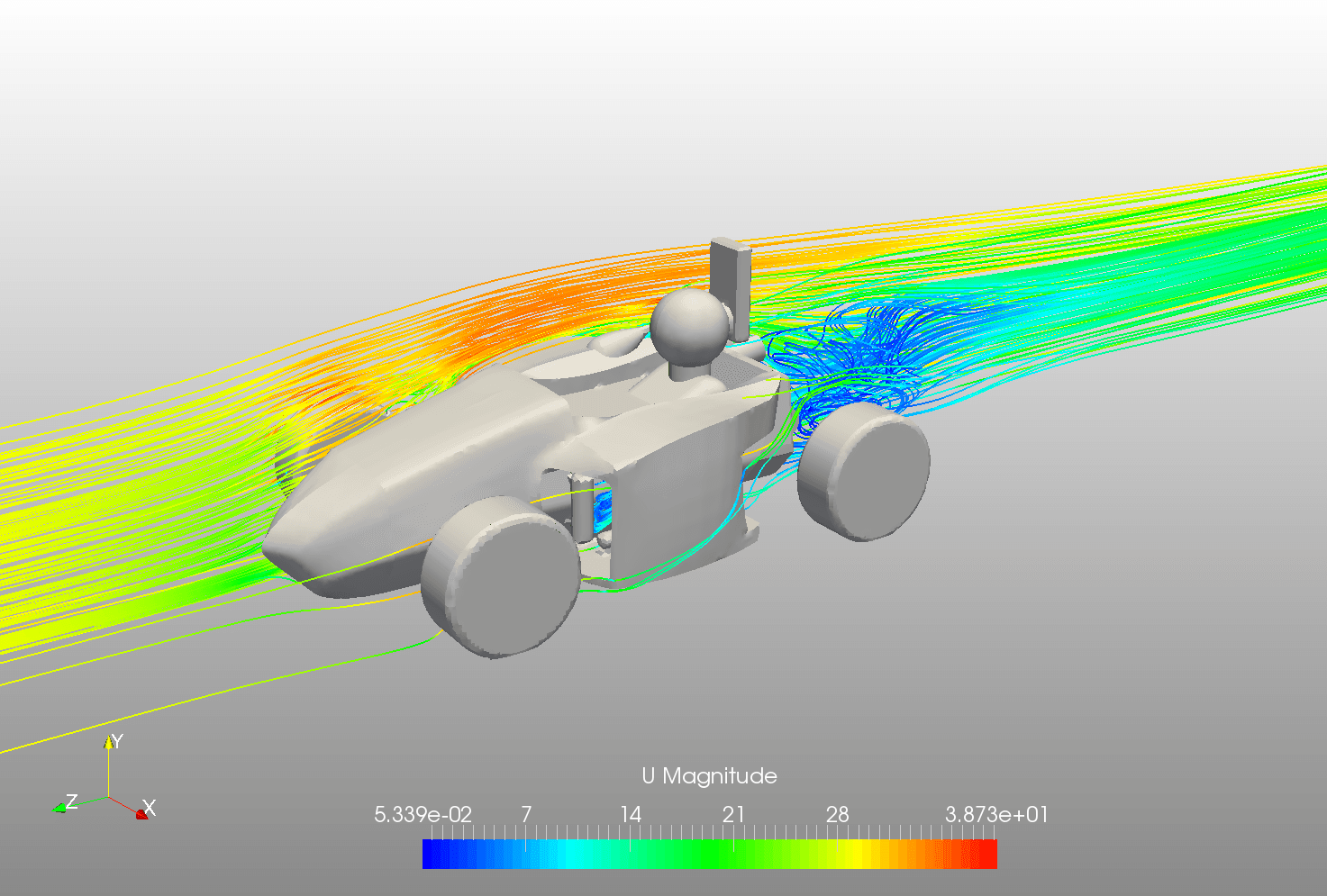

Below you can find some pictures (obs: I struggled to plot streamlines in ParaView, later if someone can give me some hints, I accept! :D)

6.Conclusions
For the scope of the team, that was a good simulation, since the values of coefficients we wanted to predict were not going to be use for nothing, only to know the aerodynamic behaviour of the car. The careen was already design and manufactured when the simulation was done. For the international competition we are planning to construct a whole new car. Therefore, much more care with mesh generation will need to be taken (I did not do any mesh independence study in this case). We are going to include a diffuser in the car as well changing the whole shape of it in order to reduce some recirculation we noticed with this simulations (close to the pilot).

So, giving you guys a feedback, I really liked to use the platform. I do not anything to complain, because when I did (creating this thread) I was perfectly assisted. I plan to keep using SimScale tools for the next Formula SAE simulations including FEM analysis (I only need to work around the core hours). If I do so, I will keep posting here feedbacks and doubts!

Thank you all that helped me! And feel free to like our Formula SAE facebook page: RS Racing Team

Regards,

Lisandro Maders

dheiny · October 10, 2015, 6:37am

@lisandromaders Lisandro,

congratulations to you and your team on the 2nd place! Excellent!

The simulation also looks great (Find below a quick ‘How to’ for the streamlines in ParaView). Yes, it looks like there appears a recirculation area in front of the pilot head. Another question regarding the design: What’s the reason for the rather large surface behind the pilot’s head? Could this be reduced to further decrease drag?

Thanks for the feedback! It’s great to hear that SimScale is helpful in improving your car design! Agreed - solid mechanics and thermal analyses might be worth a look as well moving forward (I guess you might have seen the simulation workshop on F1 design). My colleague @Milad_Mafi takes care of our Academic Program (sent you his email address already) - he’ll be helpful in enabling your team to use SimScale moving forward!

Looking forward to more awesome simulation visualizations of your team’s car !

Best,

David

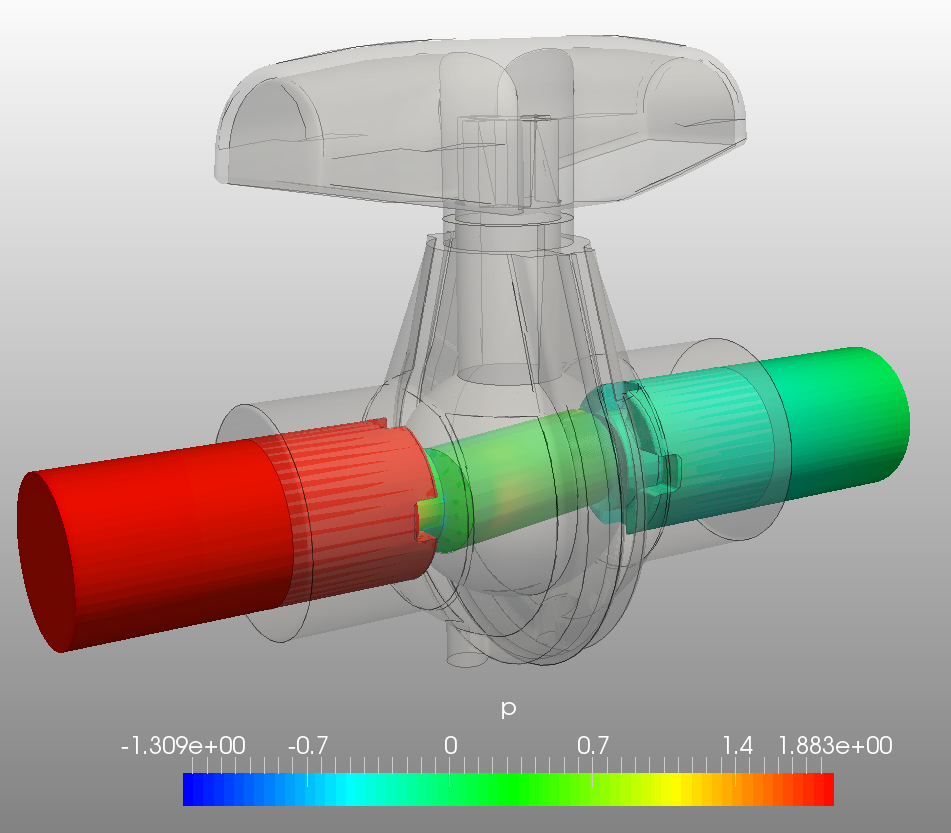

Quick Streamline How-to (I right now have an internal flow sim at hand - works the same for external):

Once you’ve imported the simulation result into ParaView, you do see the whole computational domain

Now apply the “Stream tracer” filter on this domain (I like to use the short cut Ctrl+Space, which opens a search window - simply type in “Stream” and the Stream tracer filter shows up - but you can also click the button in the top menu)

Before clicking the green “Apply” button of this filter, check on the “Seeds” settings of it. With these settings you basically choose “from where” stream lines should be computed. So you basically “seed” the streamlines with a couple of points in your domain. Most of the time I choose the “Point source” which means that you define one single point in your domain around which a number of points in a defined radius are being seeded. The “Radius” as well as the “Number of points” can also be chosen in this settings menu.

Paraview also previews where your point is (see the little white cross in the screenshot below). So you can either specify the location of the seed point via the coordinates in the menu or you drag and drop the white cross. In your case, ideally place it in front of your car.

Once you’re happy with the location, press the apply button

Depending on the flow pattern, you might want to use multiple point sources to have streamlines going through all interesting parts of the flow domain

sachin_srivast · June 21, 2017, 7:05pm

Hii @dheiny can you please see my project because i am also facing the same issue. Some of the parts are not detected by the mesh creator .I have checked the geometry in the event log which is showing it is watertight but i do have shells.I uploaded the step file do i need to change the file format? I am ready to share the project with you.
Thanks in advance
Sachin Srivastava

dheiny · June 21, 2017, 7:48pm

Hi @sachin_srivast! Happy to take a look but it might take a few days

dheiny · June 21, 2017, 7:50pm

adding @sjesu_rajendra to the Conversation who might be able to help in the meantime

SamPrabhu1 · June 21, 2017, 9:33pm

Thanks for tagging me in David!

Hi Sachin (@sachin_srivast),

I don’t see the project which has issues, in your public project library. Please share the project to support with a short reference to this forum post. We can check the issue and get back to you at the earliest possible.

Cheers,
Sam

sachin_srivast · June 21, 2017, 10:28pm

hello @sjesu_rajendra thanks for the fast response, have to say your service is really appreciable.Here is the link of my project, https://www.simscale.com/workbench?publiclink=c4de492e-023e-4a4a-96e0-88832f7b8ad3 Sorry for the delay actually i encountered some other problems when tried generating mesh in STL format like now it is showing geometry is not water tight see if you can find the error in the geometry. I ll be very grateful to you. Have a look at this also in which was imported in STEP format https://www.simscale.com/workbench?publiclink=f970d286-0271-460e-87dd-5697ee35eaa1

Thanks

SamPrabhu1 · June 21, 2017, 11:10pm

Sachin (@sachin_srivast),

Thanks for sharing the information. Ideally the STEP file is preferred for generating a mesh as the resolution of STL controls the mesh. I believe it is going to be external flow analysis, for which the current STEP file should be sufficient. Please use the Hex-dominant parametric mesh option with the material point placed outside the solid bodies, but within the limits of the bounding box (background mesh box). This way we can ensure that the mesh is generated in the right region. Also define mesh refinements appropriately to capture the geometric features properly.

Let us know if you have any other queries. Good luck!

Cheers,
Sam

sachin_srivast · June 22, 2017, 12:37am

Sam @sjesu_rajendra
I did what you said but its showing error in the execution of mesh operation. I have used 32 computing cores still it is saying machine ran out of memory. I have placed the material point outside the background mesh which i first made bigger than default one. I also added the mesh refinements . Please have a look on the project I hope you ll get it. https://www.simscale.com/workbench?publiclink=37e76aa6-d14a-4f4c-a79f-191376814207
Thanks
