Another CFD multi region mesh error

Project Support
1

Hello!

I’m pretty new to simulation and I’m wondering if anyone can help me find out what I’m doing wrong. The point of the project is to see what effect a small radiator (the small cube (100F)) can have on a room that is 65F. I set up the two bodies and assigned them the respective values of 100 F for the small and 65F for the room but every time I try to run the sim, it crashes and gives me the multi-region mesh error. Anyone have any pointers? Images below:

Thanks!

volume

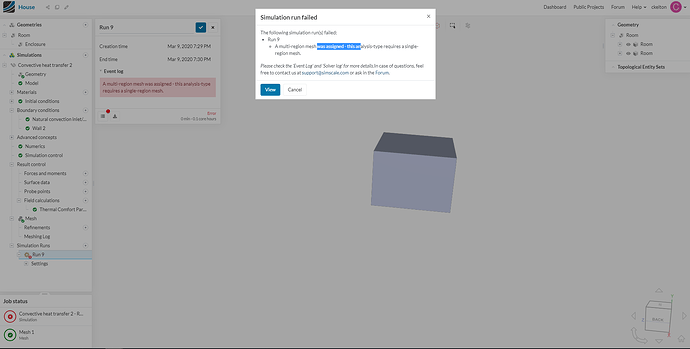

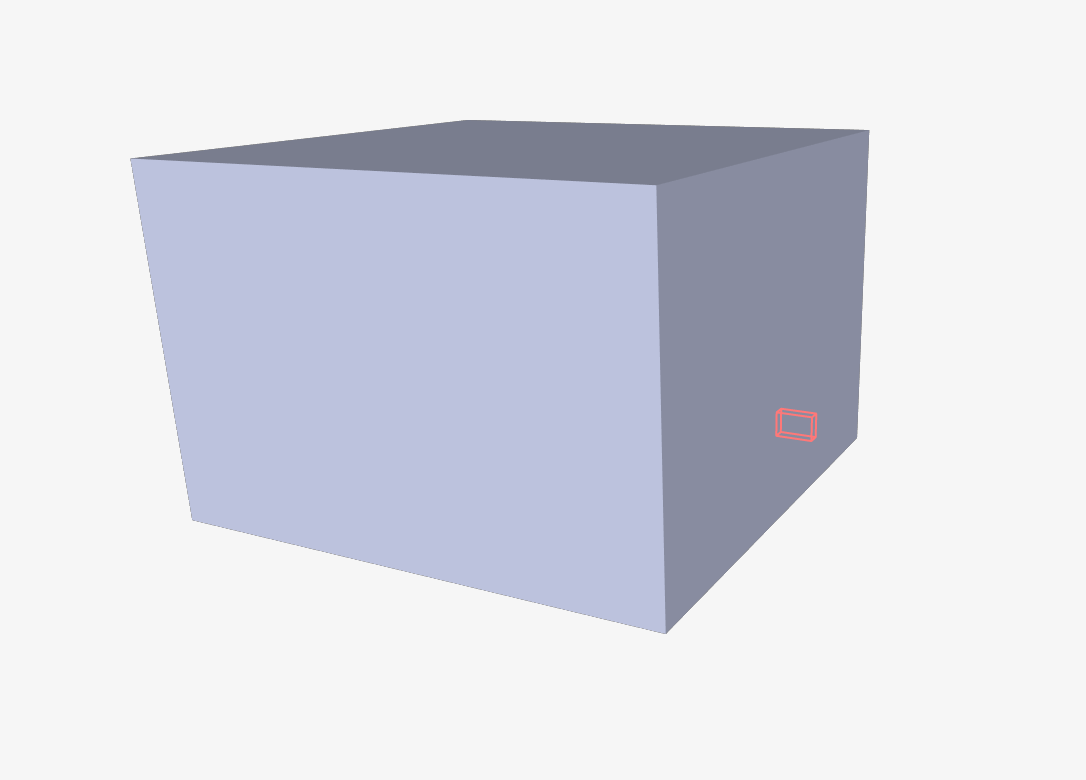

volume1086×780 5.42 KB

error

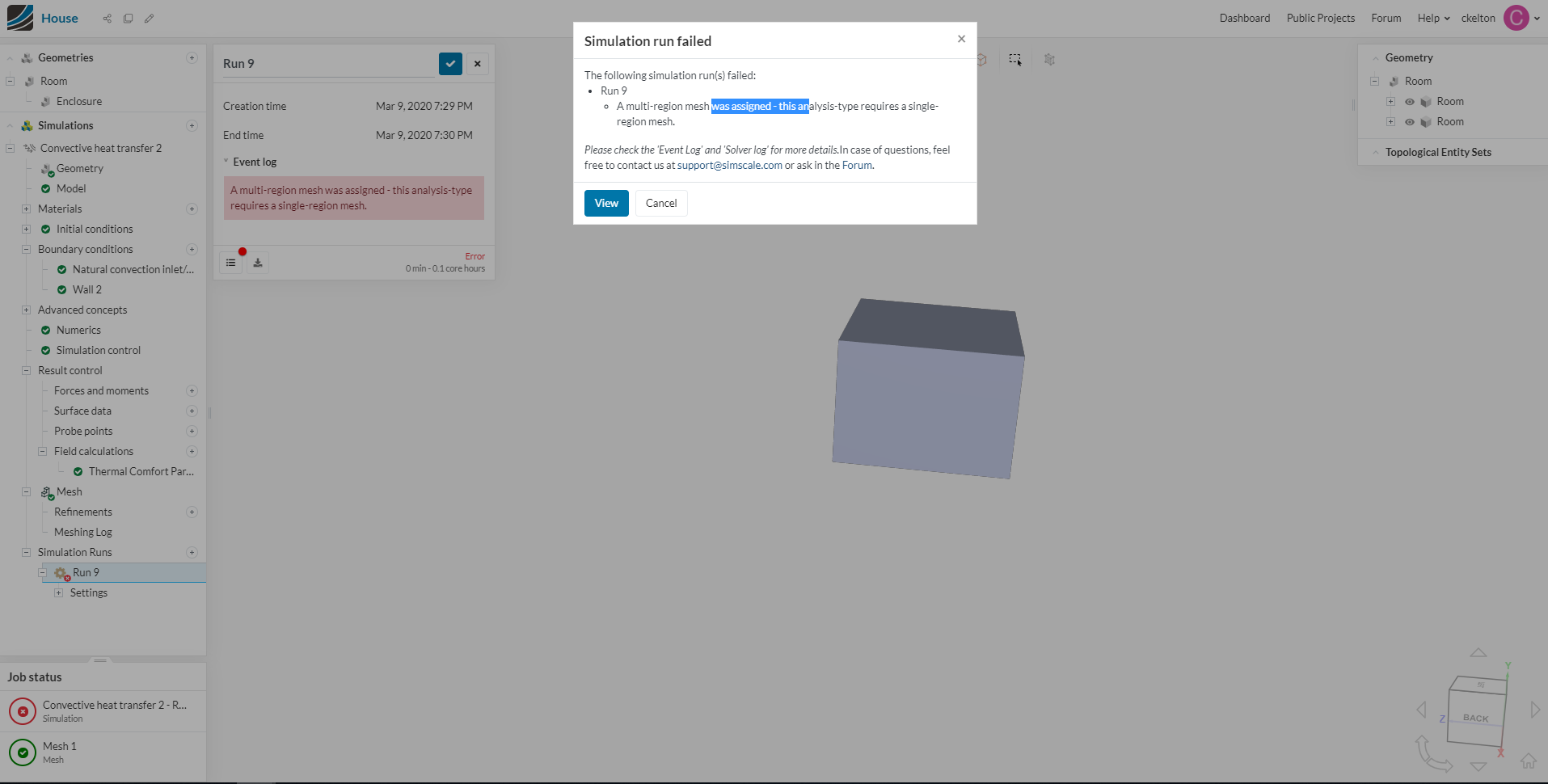

error1915×970 70.5 KB

1 Like
2

Hi @ckelton!

This issue has been discussed by the @cfd_squad in the past, here some useful threads:

Please let us know if it helped!

Jousef

3

Hi @jousefm ,

Still no luck. I did get one run to work with just a radiant block and using an enclosure but when I try to view the simulation results I can’t view the enclosure. Any tips on how to view the enclosure with the simulation?
