In this thread we provide you with the best resources you need to understand the functionalities of SimScale, set up your own simulations and learn about the theoretical fundamentals of the interesting field of the Finite Element Method (FEM). What are you waiting for? Let’s get started!
FEA | Finite Element Analysis on our SimWiki
\underline{\textbf{Fundamentals of Finite Element Analysis}}
The Finite Element Method (FEM) is a computational technique developed by engineers used to obtain approximate solutions to engineering problems.
- The Finite Element Method - Fundamentals Part #1
- Part #2: The Finite Element Method - Fundamentals - Physical Problems
- Part #3: The Finite Element Method - Fundamentals - Matrix Algebra
- Part #4: The Finite Element Method - Fundamentals - Direct Approach for Discrete Systems
\rightarrow Homework for this exercise: Homework for Part 4 - Part #5: The Finite Element Method - Fundamentals - Strong and Weak Form for 1D problems
\underline{\textbf{Workshops related to FEA}}
1. Got a weakness for medicine? The Biomedical Engineering workshop might be the workshop of your choice!
\rightarrow Biomedical Engineering Workshop
2. Interested in gathering some first experiences as an aerospace engineer?
\rightarrow Aerospace Workshop
3. Are you inquisitive? The Makers workshop should be your ideal playground!
\rightarrow Makers Workshop
\rightarrow Equivalent German Workshop: Simulieren wie die Profis
4. Enthusiastic about drones? Drone Workshop
\underline{\textbf{Tutorials}}
Tutorials for FEA/CFD & Thermal Analysis: Tutorials
Step-by-Step Tutorials: Learn Simulation Step-By-Step
\underline{\textbf{Textbooks}}
-
Introduction to the Finite Element Method) – Niels Ottosen & Hans Petersson
-
The Finite Element Method Set (Sixth Edition) – O.C. Zienkiewicz, R.L. Taylor and J.Z. Zhu
-
A First Course in Finite Elements – Jacob Fish, Ted Belytschko
-
Concepts and Applications of Finite Element Analysis – Robert D. Cook and David S. Malkus
-
Finite Element Procedures in Engineering Analysis] – K.J. Bathe (MIT)
\underline{\textbf{Videos}}
-
Finite Element Procedures for Solids and Structures – Full course by K.J. Bathe (Professor @ MIT)
-
FEA Simulation Setup - by SimScale
-
FEA Mesh - by SimScale
\underline{\textbf{Blog}}
\underline{\textbf{Static Analysis on SimScale}}
Static analysis is used to determine the displacements, stresses, strains, and forces in structures or components caused by loads that do not induce significant inertia and damping effects.
- Steady loading and response conditions are assumed
- Externally applied forces and pressure
- Steady-state inertial forces (such as gravity or rotational velocity)
- Imposed (non-zero) displacements
Linear Static Analysis
-
Linear Assumption - Deflections should be small and rotations should be less that 10 degrees. Boundary conditions should be constant
-
Elasticity Assumption - Assigned material should be linear elastic (ie. when a load is removed, the part returns to its initial shape)
-
Static Assumption - Load can be applied in a single step (or pseudo time steps)
Recommended Projects (Click to show list):
Nonlinear Static Analysis
Types of nonlinearities (read more…):
-
Material Nonlinearity (Plastic material database)
-
Geometric Nonlinearity
-
Boundary Condition Nonlinearity
[details=Recommended Projects (Click to show list):]

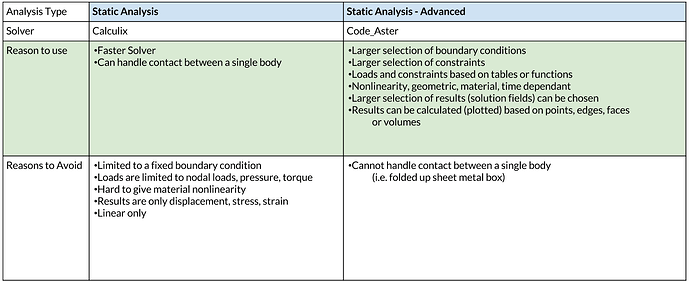

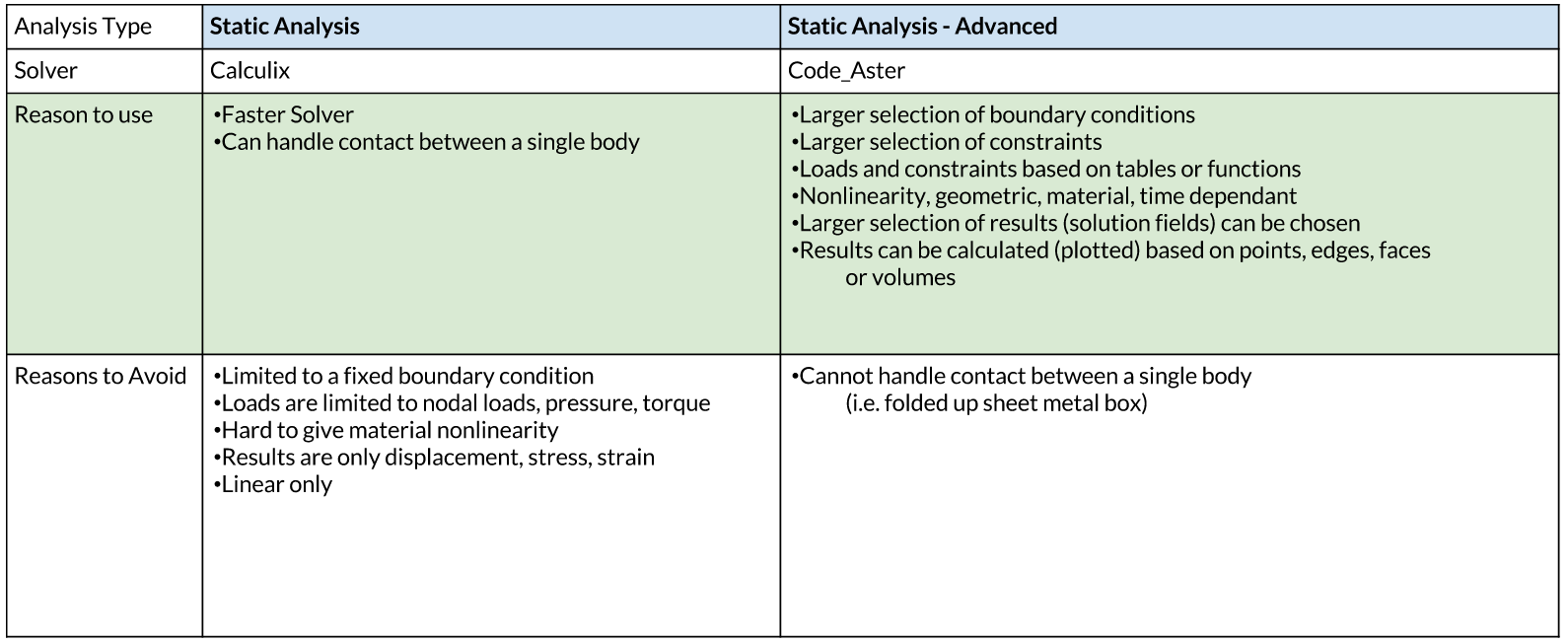

\underline{\textbf{Available Static Solvers on SimScale}}
Source: @cjquijano
\underline{\textbf{Dynamic Analysis with SimScale}}
Dynamics Analysis is used to determine the time-varying displacements, strains, stresses, and forces in a structure as it responds to any combination of static, transient, and harmonic loads.
Inertia or damping effects are included. If the inertia and damping effects are not important, use a static analysis instead.

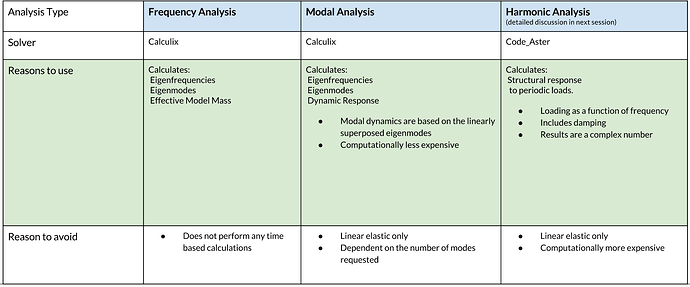

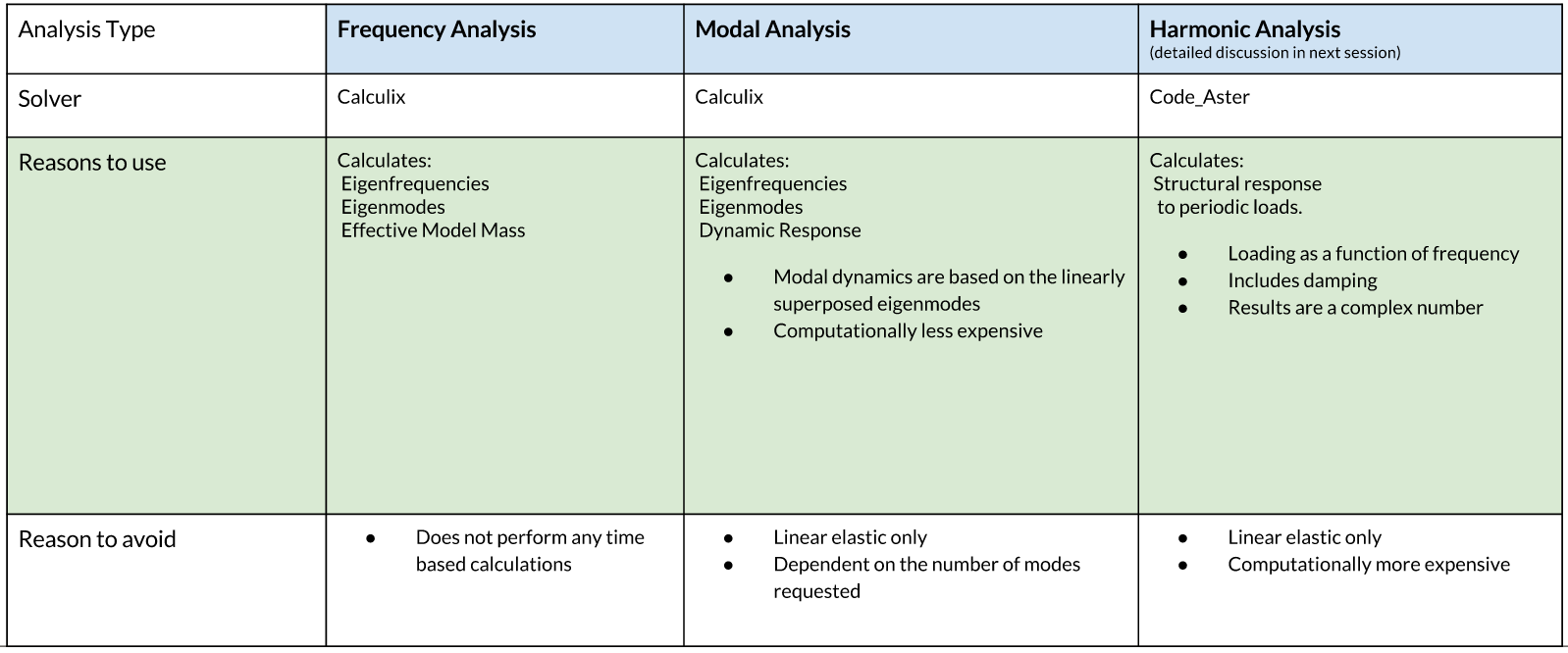

Frequency Analysis
Recommended Projects (Click to show list)
Modal Analysis
[details=Recommended Projects (Click to show list):]
Harmonic Analysis
Recommended Projects (Click to show list):
Linear Dynamic Analysis
[details=Recommended Projects (Click to show list):]
- Dynamic Analysis of Gears[/details]
Nonlinear Dynamic Analysis
Recommended Projects (Click to show list):

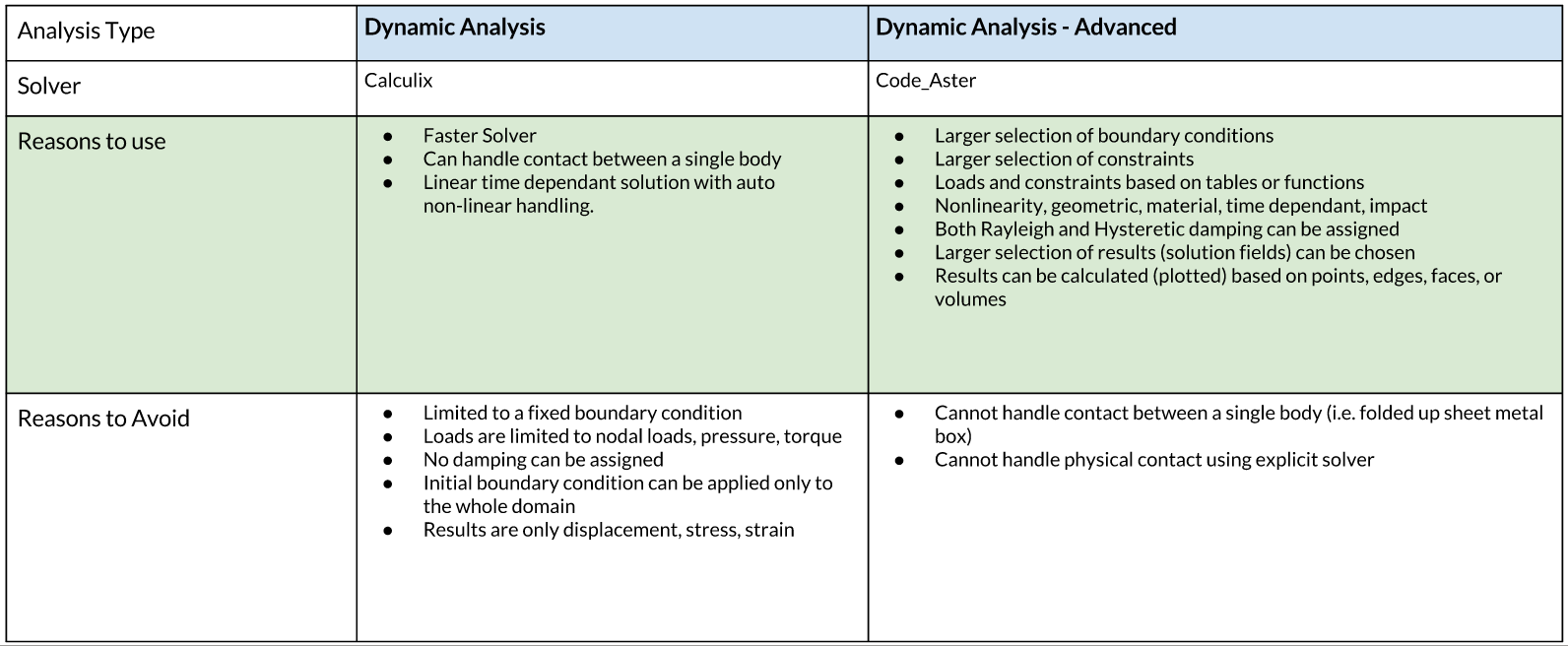

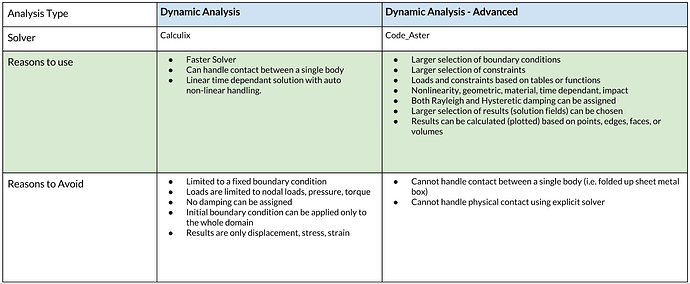

\underline{\textbf{Available Dynamic Solvers on SimScale}}
Source: @cjquijano
Source: @cjquijano
\underline{\textbf{Advanced Topics in FEA}}
Cyclic Symmetry
-
Cyclic symmetry - SimScale documentation
-
Forces and Result visualization for Cyclic Symmetry - user question in SimScale forum
Recommended Projects (Click to show list):
-
Cyclic Symmetric Rotor Under Centrifugal Force [!!!THIS LINK IS NO LONGER AVAILABLE!!!]
Remote Displacement/Force
Recommended Projects (Click to show list):
-
Allen Key [!!!THIS LINK IS NO LONGER AVAILABLE!!!]
-
Spring Analysis [!!!THIS LINK IS NO LONGER AVAILABLE!!!]
Elastic Support
Recommended Projects (Click to show list):
Material Damping
- Approach for Selection of Rayleigh Damping Parameters - 2009 ASME Pressure Vessels and Piping Conference
Recommended Projects (Click to show list):
Hyperelastic Material Models
-
Hyperelastic materials - SimScale documentation
-
How to Choose a Hyperelastic Material Model for your Finite Element Analysis? - SimScale blog
-
Hyperelastic curve fitting constants - user question in the SimScale forum
Recommended Projects (Click to show list):
Physical Contact (nonlinear)
-
Physical contacts - SimScale documentation
Recommended Projects (Click to show list):
\underline{\textbf{Validation Cases using SimScale}}
In these validation cases, the simulation results on SimScale are compared to the numerical results presented in other studies to validate the accuracy of our solvers
Validation cases: Solid Mechanics Validation Cases
Click to see all validation cases
- Thick Plate Under Pressure (NAFMES LE10)
- Hollow Cylinder In Plain Strain (Code_Aster SSLV04)
- Pinned Bar Under Gravitational Load
- Frequency Analysis of a Sphere (Code_Aster SDLV401)
- Voluminal Paving Stone Subjected To A Harmonic Pressure (Code_Aster SDLV124)
- 3D Triaxial Load Secondary Creep (NAFEMS Creep Test 6(a))
- 3D Triaxial Displacement Secondary Creep (NAFEMS Creep Test 6(b))
- 3D Triaxial Load Primary Creep (NAFEMS Creep Test 11)
- Hertzian Contact Between Two Spheres (Code_Aster SSNV104)
- 3D Punch (Rounded Edges) (NAFEMS Contact Benchmark 2)
- Fixed Beam Under Gravitational Load
- Circular Shaft Under Torque
- Quarter Shaft Subjected To A Fixed Rotation
- Hyperelastic equibiaxial tension test
- Hyperelastic planar (pure shear) tension test
- Hyperelastic uniaxial tension test
- Elastoplastic Notched Plate
- I Beam Under Remote Force
- Cylinder Under Rotational Force
- Impact Of An Elastoplastic Bar (Code_Aster SDNV103)
- Straight beam with damping of Rayleigh (Code_Aster SDLS123)
- Eigenfrequencies of a Summarized thick cylindrical (Code_Aster SDLS109)
- Straight beam - Harmonic analysis (Code_Aster SHLL101)
- Free vibrations on elastic support
