BulkHead16_Wed23Dec20_0636AM_Ifr_1_IzBulk_1_Force_Stress_Analysis

In this project static structural FEA of front upright of Formula Student Vehicle is carried out under loading conditions. 800 newtons of force is applied at the both upper and lower control arm and 5000 newtons of force is applied as brake force and the behavior of upright is observed for the further considerations and use in vehicle.

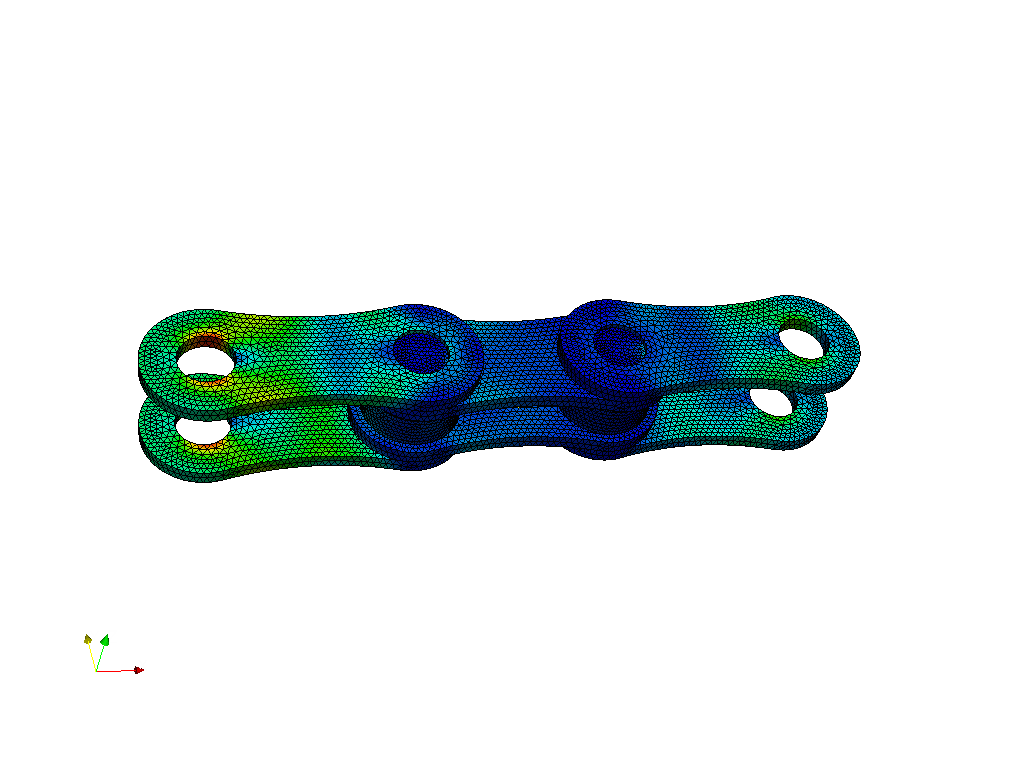

A model of a steel chain link is put on stress testing, provided the both ends are loaded . This test is a conceptual inspiration from cycle chains , it is that once the rider pedals his cycle each chain links undegoes a load distribution on them from pedals through socket on to the chain links and to the rear gear. The idea is simple and fun.

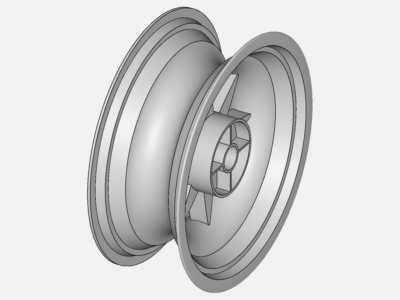

This is the current wheel used on Cruzee. The material is Polypropylene and meets all structural needs. This simulation compares the normal wheel to a lighter wheel with fewer spokes and an improved spoke section. It is therefore tested that will it maintain the same level of stiffness radially and laterally while reducing weight.

This project validates distributed pressure and nodal stresses for a thick plate under pressure load.

In this project a static analysis of a beam und a gravitational load is demonstrated.

Response of a crane structure to tip load

In this project thermomechanical analysis of a bimetallic strip is demonstrated.

This project analyses the creep material behavior of a cube.

This project analyzes the creep material behavior of a cube.

In this project tension, torsional and bending load tests of a hyperelastic rubber bellow is performed.
