Evaluation of the Cooling Performance of Circular Pin Type Heat Sink

Copy of Convective Heat Transfer 2 - Run 1 - SimulationRun

3D

Convective Heat Transfer 2 - Run 6 - SimulationRun

3D

Convective Heat Transfer 2 - Run 5 - SimulationRun

3D

Convective Heat Transfer 2 - Run 4 - SimulationRun

3D

Convective Heat Transfer 2 - Run 3 - SimulationRun

3D

Convective Heat Transfer 2 - Run 2 - SimulationRun

3D

Convective Heat Transfer 2 - Run 1 - SimulationRun

3D

Heat_sink - Geometry

3D

Heat_sink - Imprint - Geometry

3D

Copy of Heat_sink - Geometry

3D

716

5

Created

6 years ago

Last modified

4 years ago

Statistics

4 Geometries

4 Meshes

3 Simulation setups

9 Results

About this project

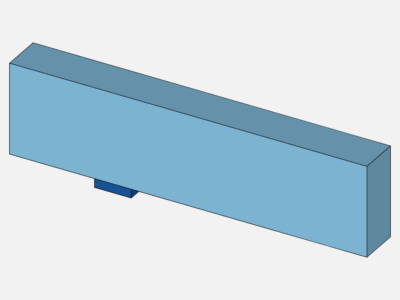

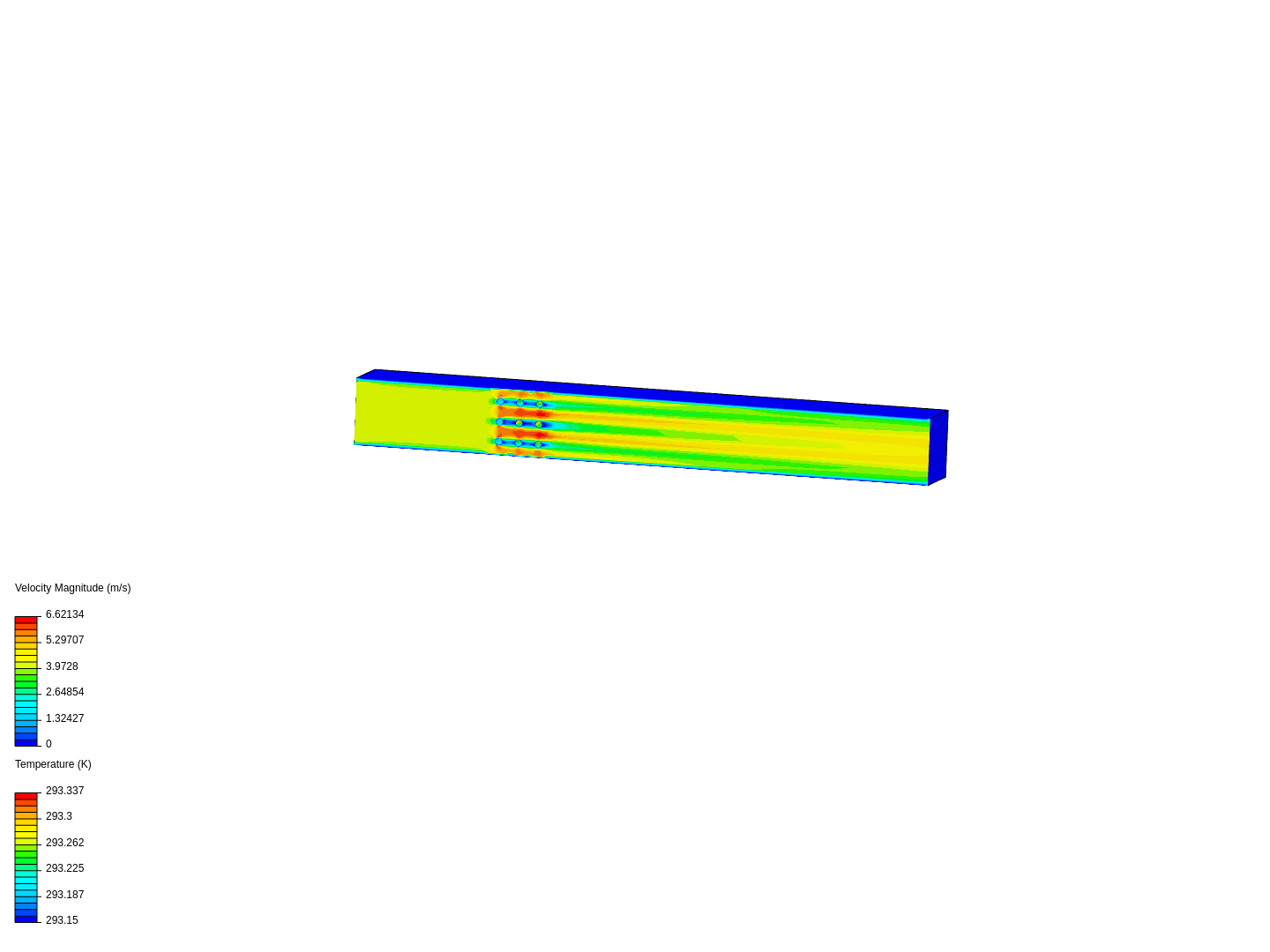

This is a conjugate heat transfer study in an electronics cooling project. With respect to the incoming air flow through the enclosed tunnel on the circular pin type heat sink design, and maximum component temperature, maximum power limit for the component was calculated.
