Cantilever Beam: Stress Singularity

Open Project
Copy Project
Static - Tet10 - HyperRefined (1.9M nodes) DY=3.04mm SXX=116MPa - SimulationRun
SimulationRun
3D

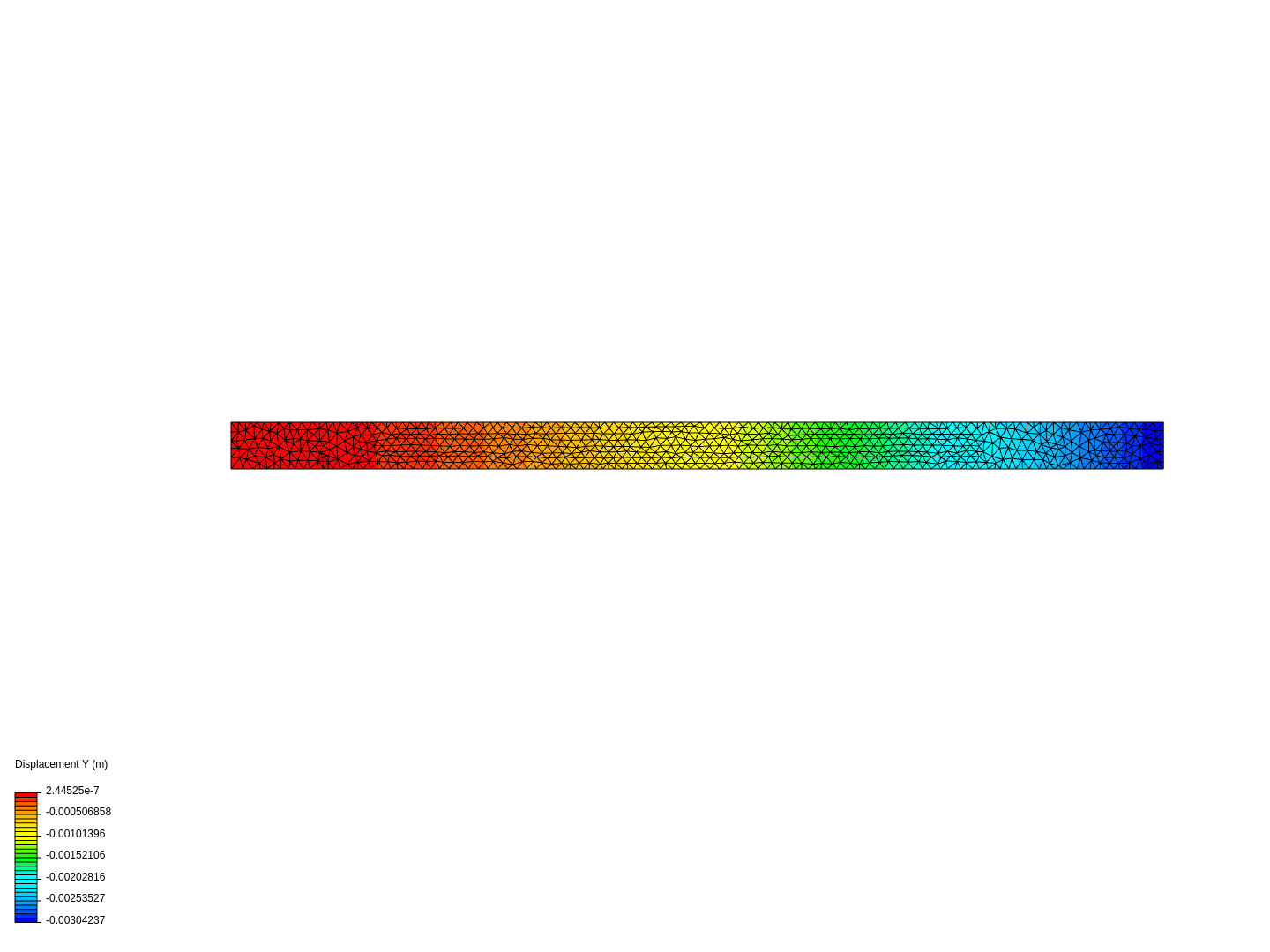

Static - Tet10 Refined - DY=3.04mm SXX=68MPa - SimulationRun
SimulationRun
3D

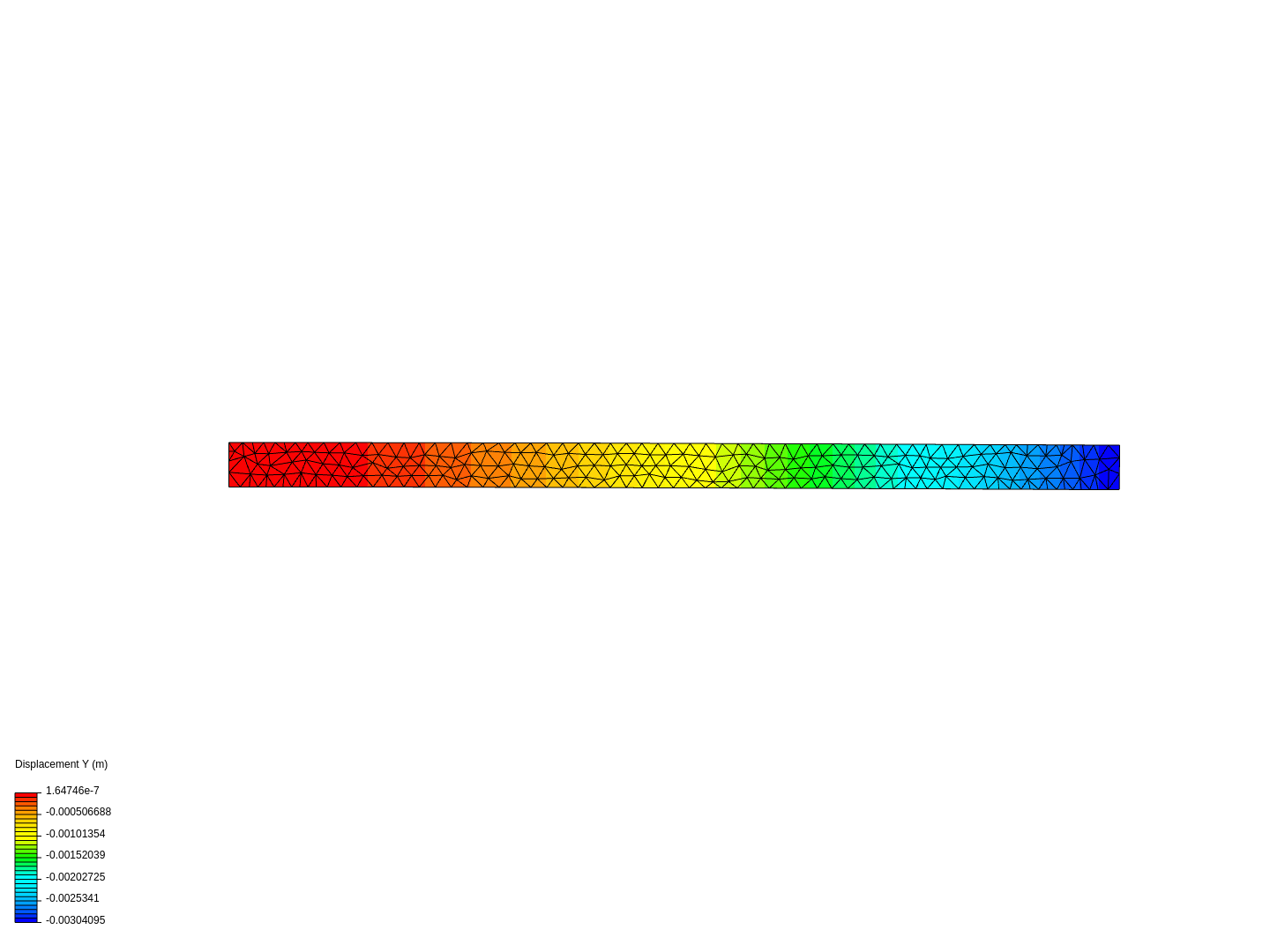

Static - Tet10 - DY=3.04mm SXX=56MPa - SimulationRun
SimulationRun
3D

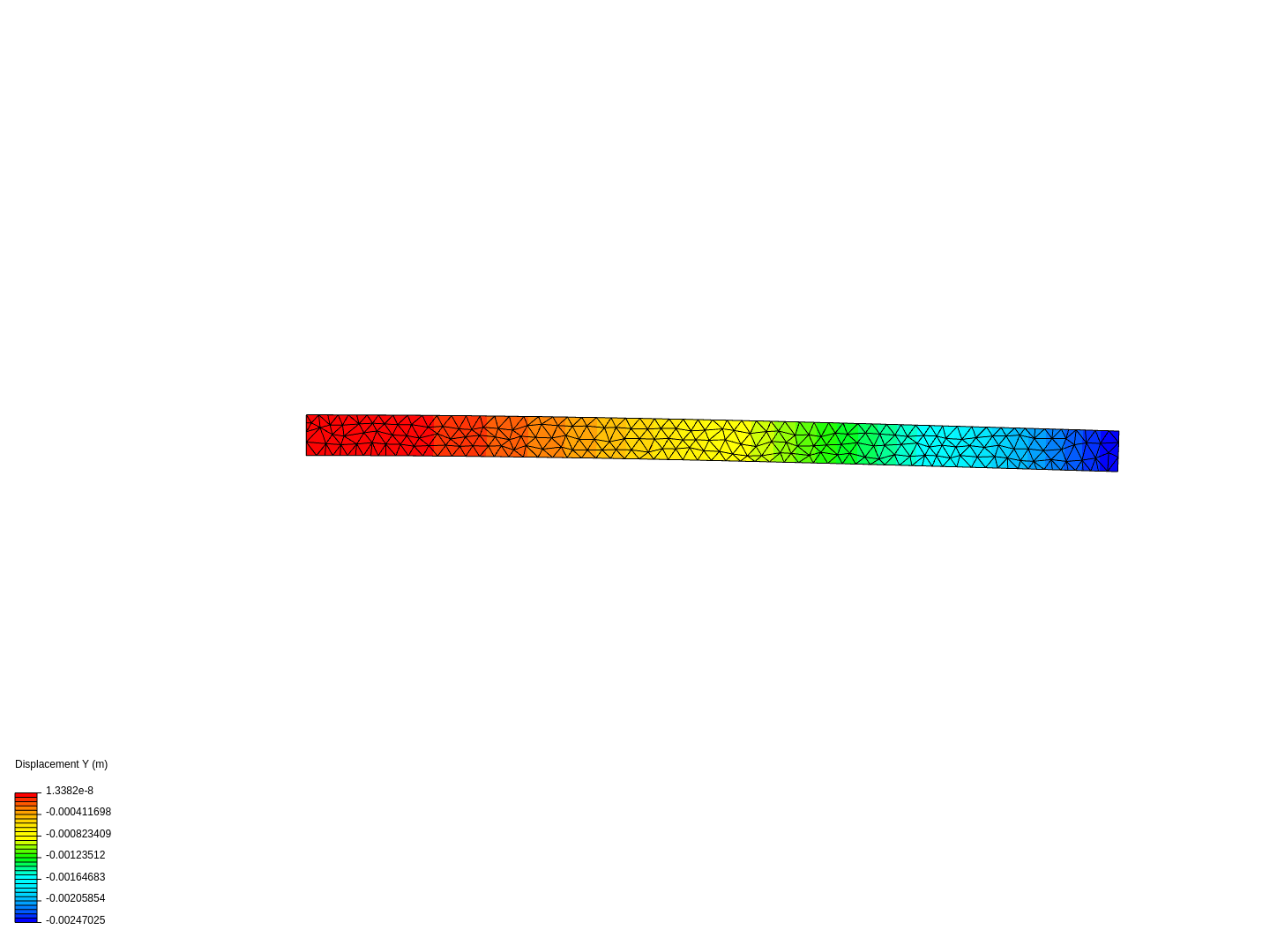

Static - Tet4 - DY=2.4mm - SimulationRun
SimulationRun
3D
Cantilever Beam Geometry - Geometry
Geometry
3D
views 448
shares 0
macin
macin
Created

Last modified

Statistics
geometries 1 Geometry
meshes 3 Meshes
simulations 1 Simulation setup
runs 4 Results
About this project

We will test a cantilever beam under end load against Euler-Bernoulli beam theory results. Displacement at the tip and stress at the fixity will be benchmarked. A stress singularity is happens at the fixity due to Poisson's ratio effects

cantilever beambenchmarkeuler-bernoullistress singularity
