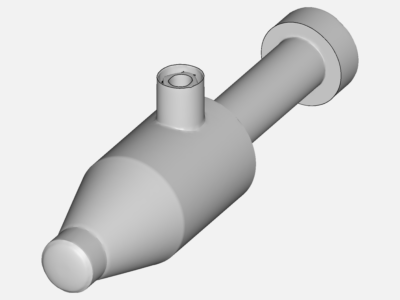

CFD analysis to evaluate the airflow behaviour in an industrial cyclone made of 316 stainless steel.

Ultra-realistic render of an industrial cyclone designed for a spray dryer, based on a technical schematic. The cyclone is made of 316 stainless steel with a mirror-polished finish, reflecting its surroundings with precision. It features a cylindrical upper structure with a smooth, polished cap, connected to a vertical tube that extends downward into the main chamber.

Ultra-realistic render of an industrial cyclone designed for a spray dryer, based on a technical schematic. The cyclone is made of 316 stainless steel with a mirror-polished finish, reflecting its surroundings with precision. It features a cylindrical upper structure with a smooth, polished cap, connected to a vertical tube that extends downward into the main chamber.

The main chamber has a cylindrical shape with a tangential side inlet, designed to generate an efficient vortex. The lower section of the cyclone tapers into a conical shape, ending in an outlet with a control valve for collecting dried material.

All welds and joints are flawlessly crafted, with no visible imperfections. The metallic surface reflects the ambient lighting, with subtle highlights and smooth reflections. The scene is set in a clean industrial environment, with HDR lighting to enhance the texture and finish of the stainless steel.

Tutorial project for a flow analysis of a pipe junction. The project only provides the geometry to start with. See our tutorials section to have a look at the step-by-step instructions to set up the simulation.

Drying chamber made of 316L stainless steel, in which a simulation of the hot air flow will be carried out.
