Hyperelastic Sealing Fitting Process

Open Project
Copy Project
Von Mises Stress - PostProcessorScreenshot
Von Mises Stress - PostProcessorScreenshot
PostProcessorScreenshot
2D
Von Mises Stress with Mesh - PostProcessorScreenshot
PostProcessorScreenshot
2D
Contact State - PostProcessorScreenshot
PostProcessorScreenshot
2D
Contact Pressure - PostProcessorScreenshot
PostProcessorScreenshot
2D
Hyperelastic Sealing (Friction) - Run 1 - Friction Coeff. 0.1 - SimulationRun
SimulationRun
3D
Hyperelastic Sealing - Run 1 - SimulationRun
SimulationRun
3D
Sealing (prepared) - Geometry
Geometry
3D
Sealing (original model) - Geometry
Geometry
3D
views 379
shares 11
Templates
Templates
Created

Last modified

Statistics
geometries 2 Geometries
meshes 4 Meshes
simulations 2 Simulation setups
runs 2 Results
About this project

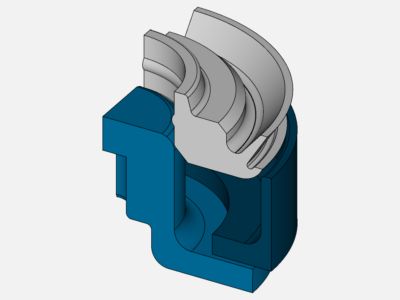

Checking the sealing fitting process on a quarter symmetry model with and without friction. This is a sample hyperelastic rubber material using the Mooney-Rivlin model. Results of interest are the required fitting force as well as the contact state and pressure.
