    What Does Imprint Do?

    Created On
    byMehmet Oezcan

    Imprint is a CAD operation that helps to recognize solid/solid and solid/fluid interfaces. Later on, these interfaces will be assigned as contacts in Conjugate Heat Transfer (CHT v2.0) or Finite Element Analysis. The contact definition is vital since these regions are responsible for transferring heat and loads between parts.

    Imprint Operation

    Before going through the effect of imprinting a geometry, let’s first see how to perform this operation in SimScale. The imprint operation can be run within the CAD mode environment:

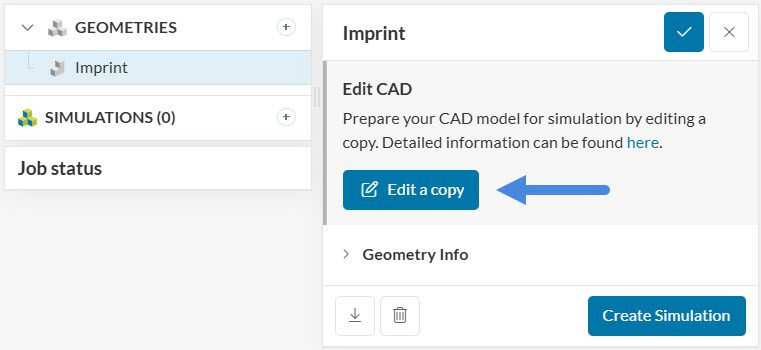

    imprint operation open edit in CAD Mode
    Figure 1: SimScale’s CAD mode contains several CAD operations, including imprint.

    In CAD mode, follow the steps to perform the imprint operation on selected geometries:

    1. Select the ‘Imprint’ operation
    2. Select the parts that need to be imprinted from the viewer or the geometry tree
    3. Run the operation by clicking ‘Apply’
    imprint operation select imprint

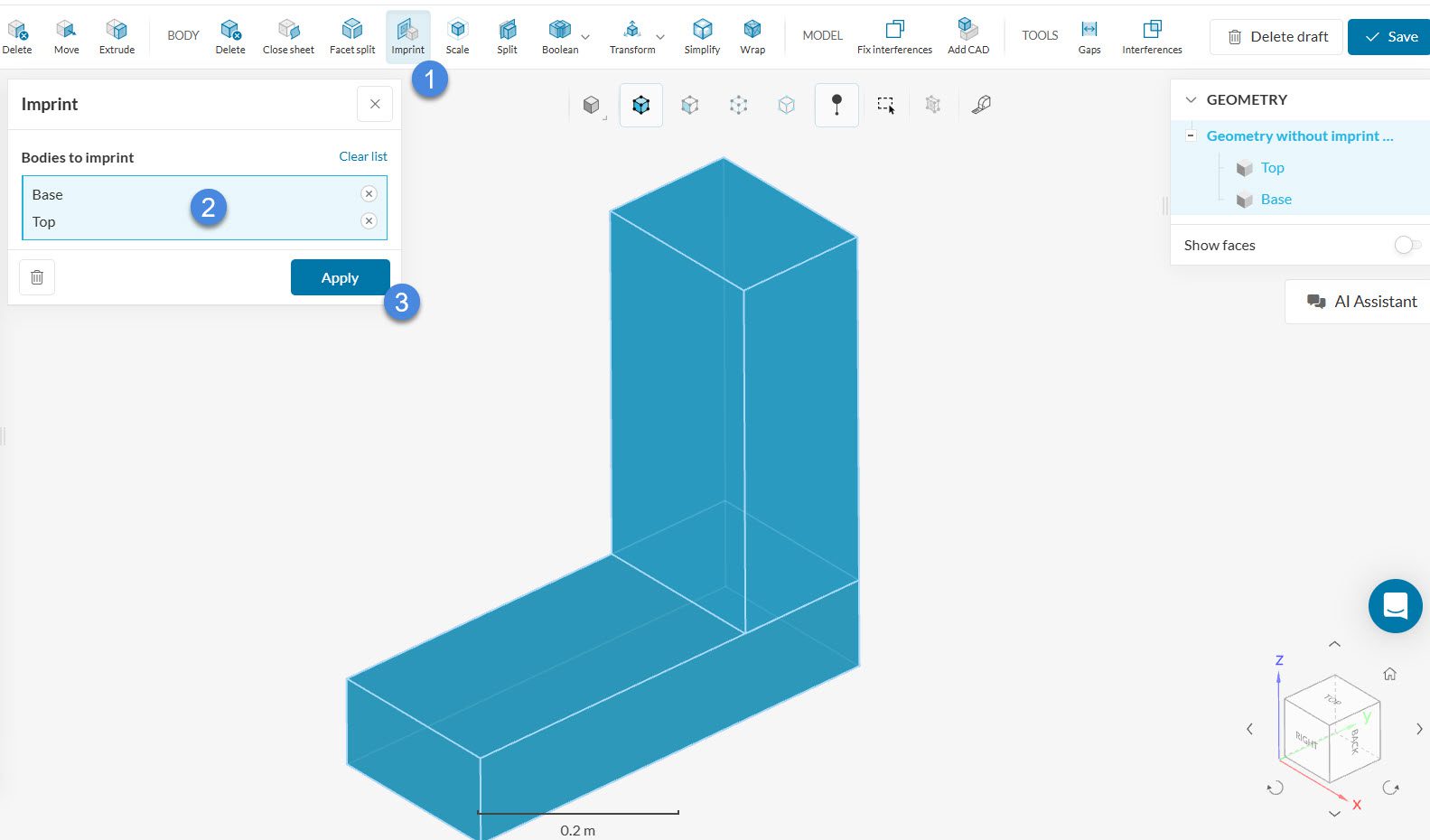

    Figure 2: Common faces between the connecting bodies will undergo imprint operation.

    Did you know?

    To quickly select all parts, you can use the box selection tool. You can either select this from the selection menu or by holding the ‘b’ key on your keyboard. You can find more tips and tricks about the selection tools here.

    After running the operation, you can click on Save as copy in the top-right corner to export the updated CAD model to the Workbench.

    Now that we know how to imprint a model, let’s see what it does to the geometry. The following picture represents an assembly, which consists of two solid parts that touch.

    imprint operation before

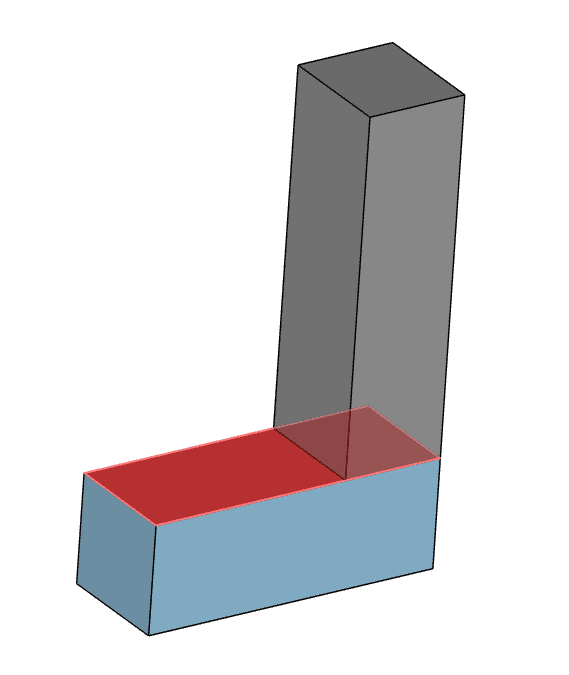

    Figure 3: Without an imprint, notice how the bottom face extends much further than the region of contact with the blue part.

    Without an imprint operation, the interface between the solid bodies may not be correctly recognized and grouped as partial interfaces. This will be the case, for example, if we have an enclosure enveloping the two parts.

    In Figure 4, the highlighted face (red face as shown in Figure 3) shares contact with both an air domain and a solid body. It is recognized as “2 partial interfaces” in the simulation tree. To prevent partial contact, the face should be split into two interfaces, one between the solid part, and the other between the air domain.

    imprint operation partial interface

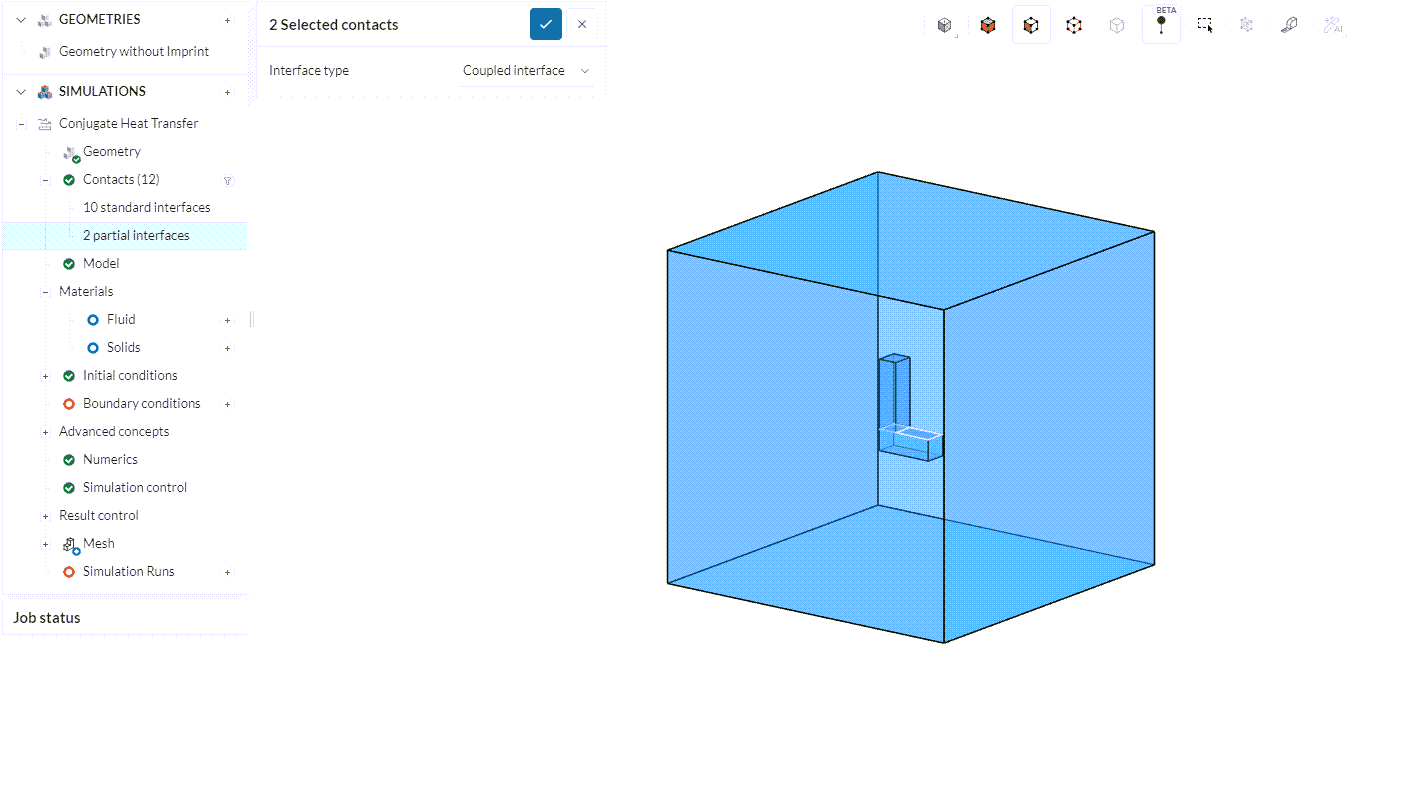

    Figure 4: To avoid partial interfaces imprinting the geometry solves the problem.

    The imprint operation does exactly that – it splits the surfaces so that we can have precise contact detection. Comparing the highlighted face from Figure 3, we can see that it now has been split in two, due to the imprint operation:

    after the imprit operation

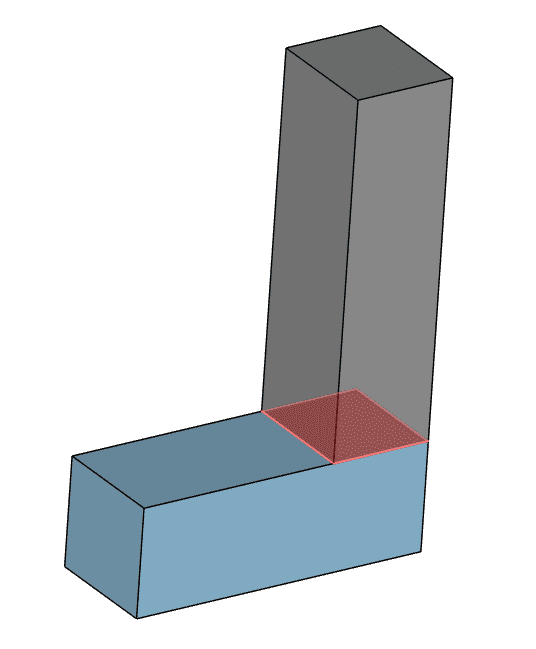

    Figure 5: Imprinting allows for the effective detection of contacts between faces

    In this case, we can obtain valid contacts in the simulation setup.

    Note

    If none of the above suggestions solved your problem, then please post the issue on our forum or contact us.
