Cheers thank you
Think this is different as there is actually a log report:
[6] --> FOAM FATAL ERROR:
[6] faceSource faceSource300: patch(RadiatorZone_boundingFaces):
Unknown patch name: RadiatorZone_boundingFaces. Valid patch names are:
20
(
boundingBox1
boundingBox2
boundingBox3
boundingBox4
boundingBox5
boundingBox6
solid_0_CATIA_STL
solid_0_CATIA_STL_1
solid_0_CATIA_STL_2
solid_0_CATIA_STL_3
solid_0_CATIA_STL_5
solid_0_CATIA_STL_6
procBoundary6to4
procBoundary6to5
procBoundary6to7
procBoundary6to17
procBoundary6to18
procBoundary6to19
procBoundary6to24
procBoundary6to26
)
so seems to not recognize the patch
Sorry but did not very understand what is this mean
Hi @czhang, sorry that wasn’t clear was it
I meant this more as a statement of what has gone wrong, for some reason the volume you selected wasn’t recognised as a selectable patch. Are you using another setup as an example?
Kind regards,
Darren
OKay thank you and I will try to set another oneand re-simulation it
The only reason why I asked about the setup is that in the docs it only mentions assigning primitives to a porous material, not a cell zone, was just wondering if there was an example you were following that used a cell zone as the region instead?
Cheers,
Darren
I followed this but without angle wind,
Just tried to simulation a nomal completely car and see the stream trace happen to radiator.
Cheers

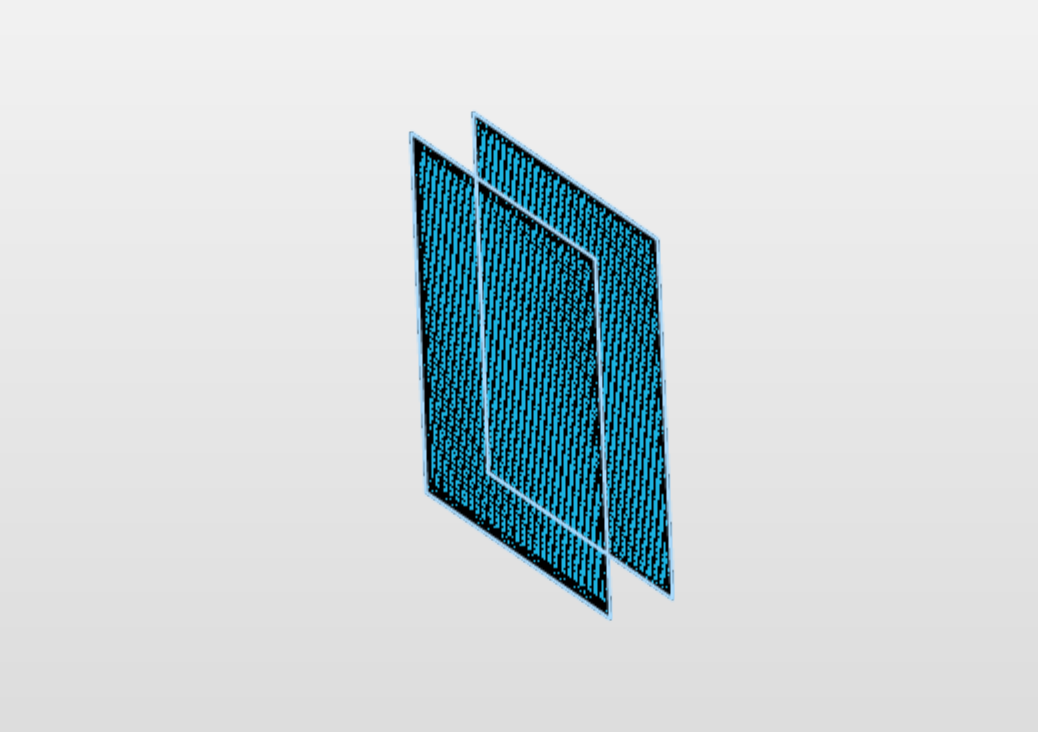

I thought it a bit strange that instead of a volume your radiator is two plates:

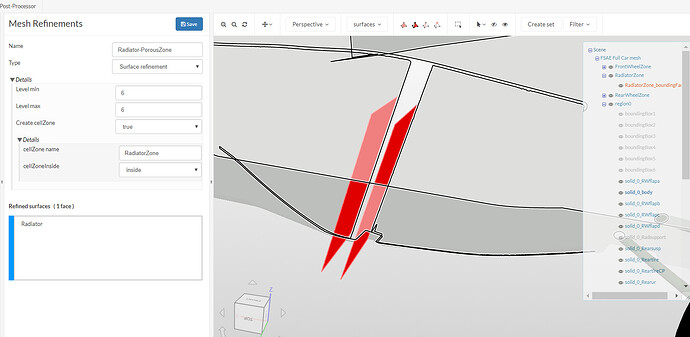

so you may need to check your mesh, I think you need to select faces that make a region unlike this:

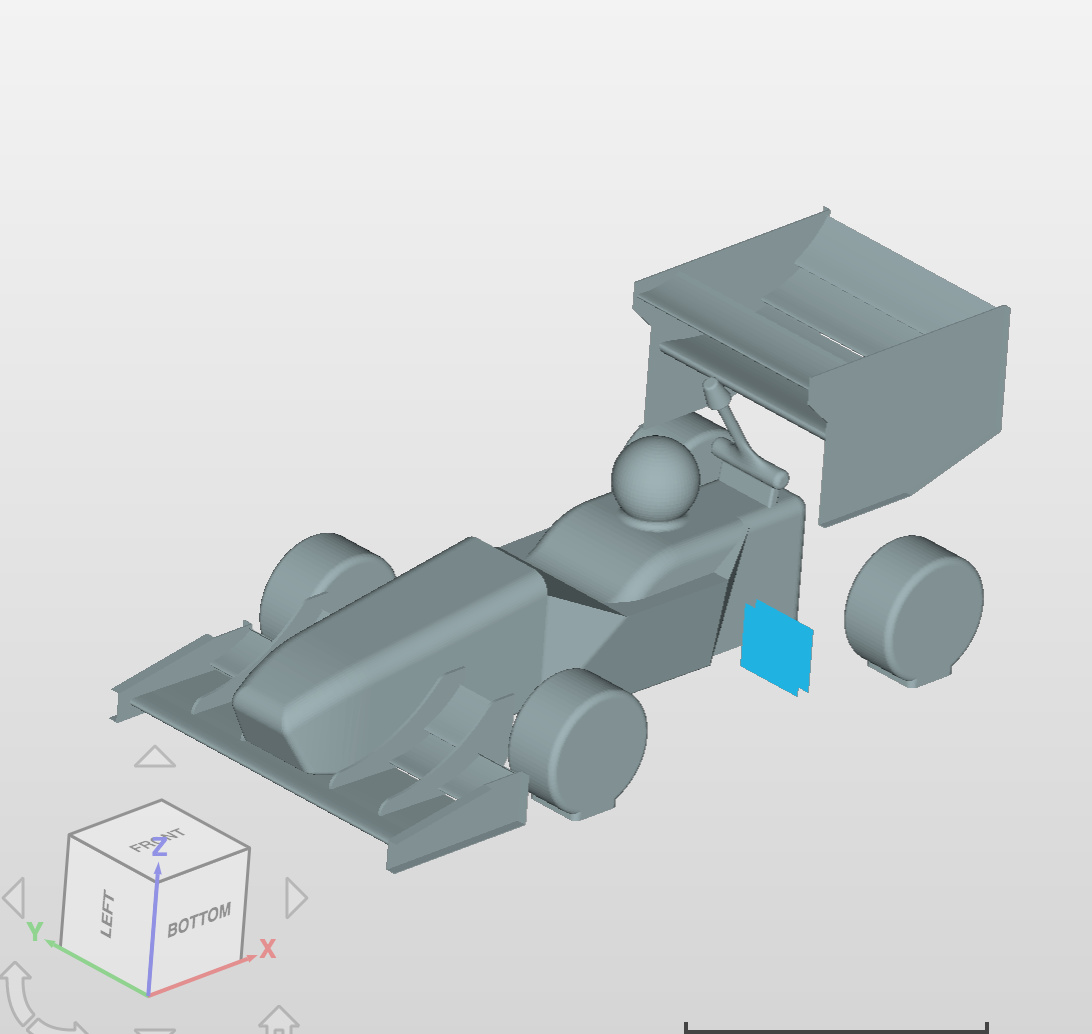

I presume this is your geometry? or is it from the workshop?
Kind regards,
Darren
Yes I build this as the radiator to use the porous media selection

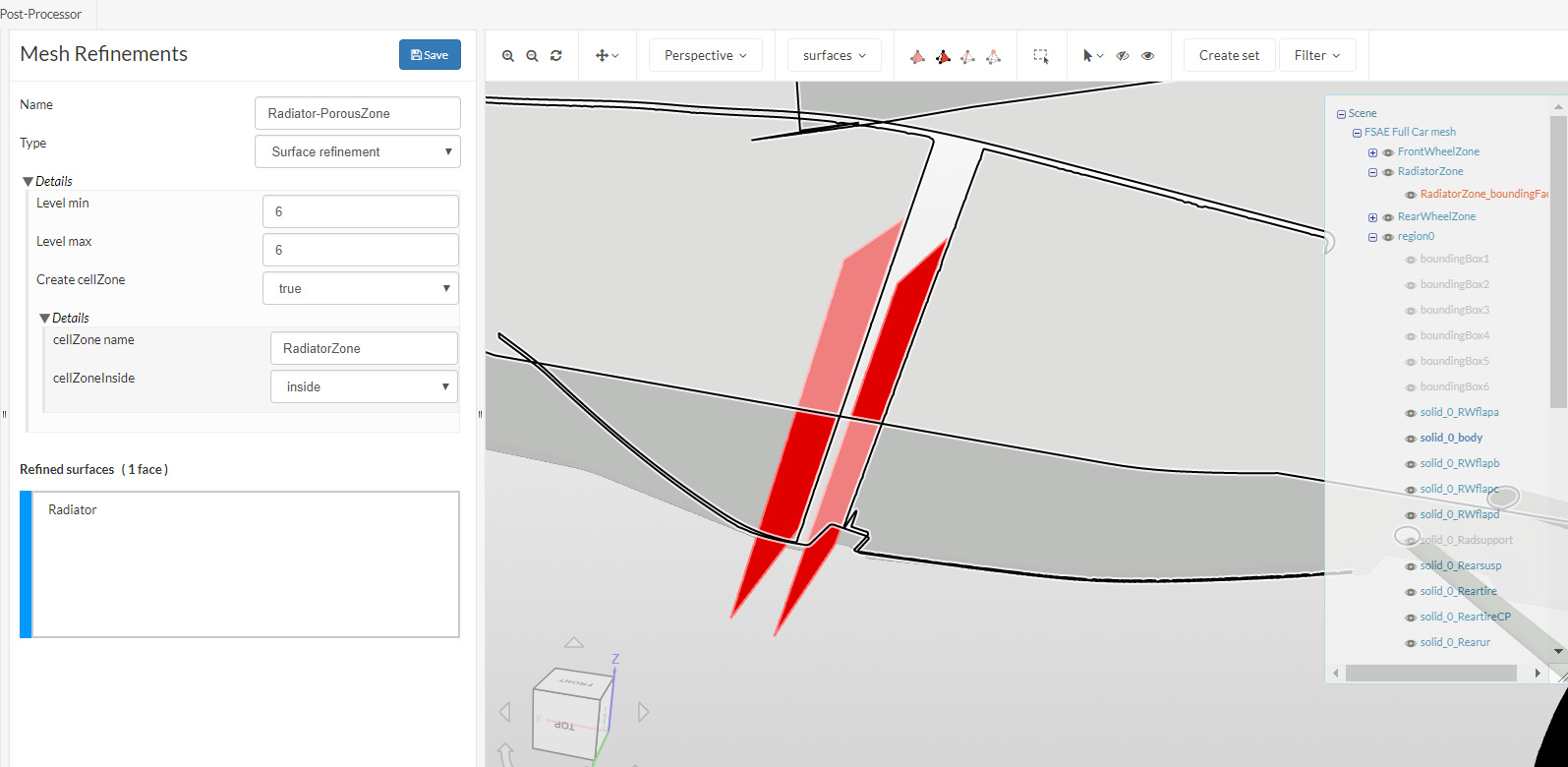

Just like in this, the radiator zone is also consist of two plate.

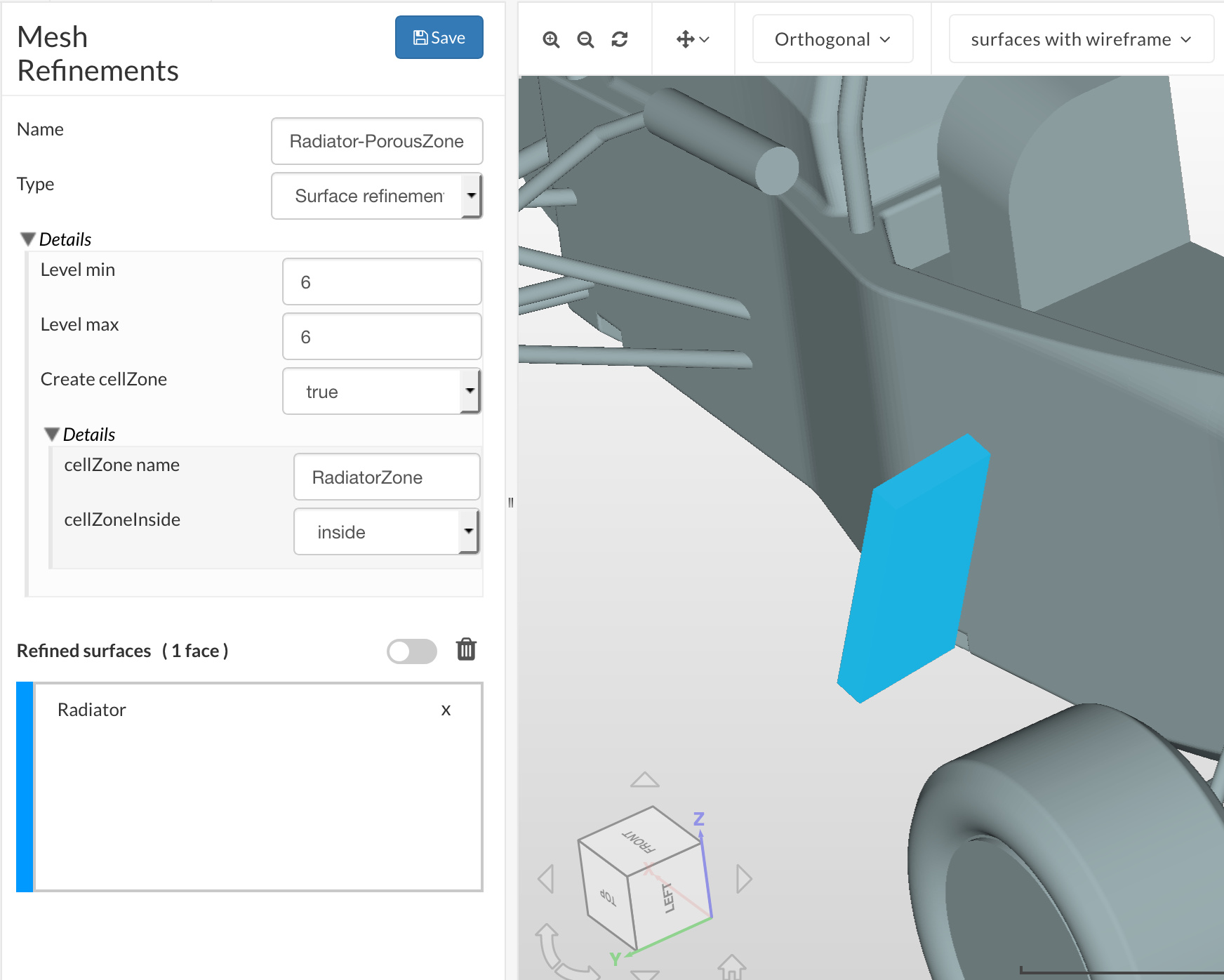

In that example you shared it is actually enclosed and not two plates selected:
you might need to revisit your geometry to fix this.
Kind regards,
Darren
Thank you but as you see, on my laptop it shows as plates. I am a bit confused, whats more this mesh refinement is surface refinement, so I think it is only surface?
Hi @czhang.
Currently having a look at the project. I might have found the mistake. Let me give it a shot!
Best,
Jousef
1 Like
Hi @czhang !
Can you send me your geometry as IGES, STEP and STL to my email address please? You can also upload them to Google Drive and share the link with me via pm. I think that there are some issues with the geometry. I want to figure out what is going on.
Best,
Jousef
Hi what is your email address please?
Sent you
