    Mesh Upload

    In some instances, the user might be interested in generating mesh in a local environment and use SimScale to apply the simulation setup parameters and perform a simulation. It is possible to upload multiple mesh files to the SimScale Workbench from an external environment. The procedure is similar to uploading a geometry.

    Once uploaded, an entity Uploaded Meshes is added to the simulation tree:

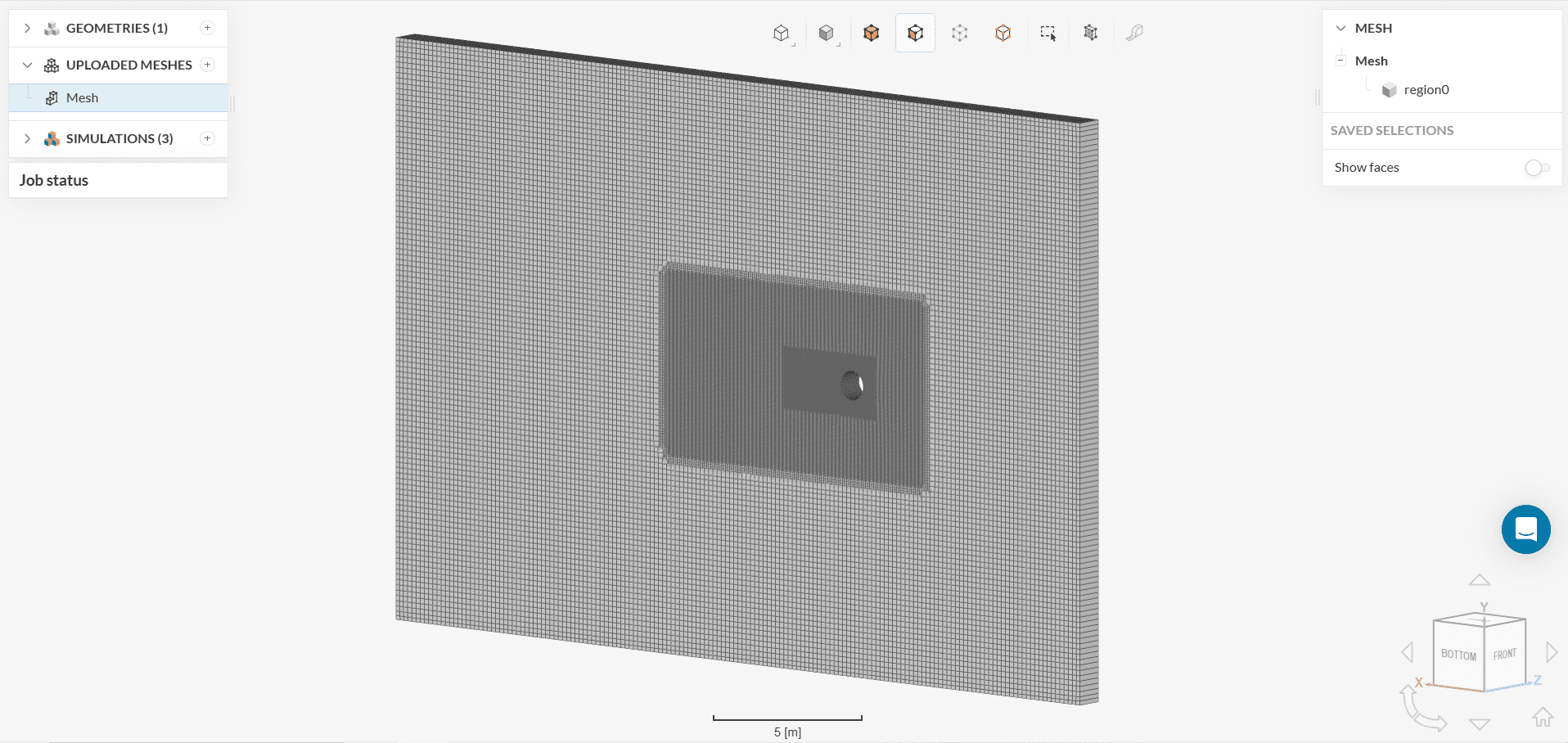

    uploaded meshes entity in the workbench
    Figure 1: Uploaded meshes entity in SimScale’s Workbench

    Under Uploaded Meshes you should see all the meshes that were uploaded to the Workbench. Select one of them and proceed with the simulation using the ‘Create Simulation’ button.

    In order to use uploaded meshes successfully within SimScale, the boundaries of your meshes need to be specified in advance before uploading. All elements (i.e. nodes, edges, faces, or volumes) on which you want to apply boundary conditions or assign a material or other setup parameters must be grouped before the upload.

    Note

    Mesh upload is mandatory if Empty 2D, or Wedge boundary condition needs to be applied.

    Supported Formats

    Currently, SimScale supports two formats for mesh uploads:

    • MED (.med) (version 3.0, 3.1, 3.2, 3.3)
    • OpenFOAM (.foam) native mesh format (ASCII only)

    MED Mesh Upload

    Simply select a *.med file and upload it. You may also pack it either as a *.tar.gz file or a *.zip archive.

    Meshes with the .med format are most often used for structural simulations, however they may also be used for CFD simulations in SimScale with the following solvers: incompressible, compressible, convective heat transfer, and multiphase.

    For demonstration purposes, the following figures show a mesh of a plate created using Salome.

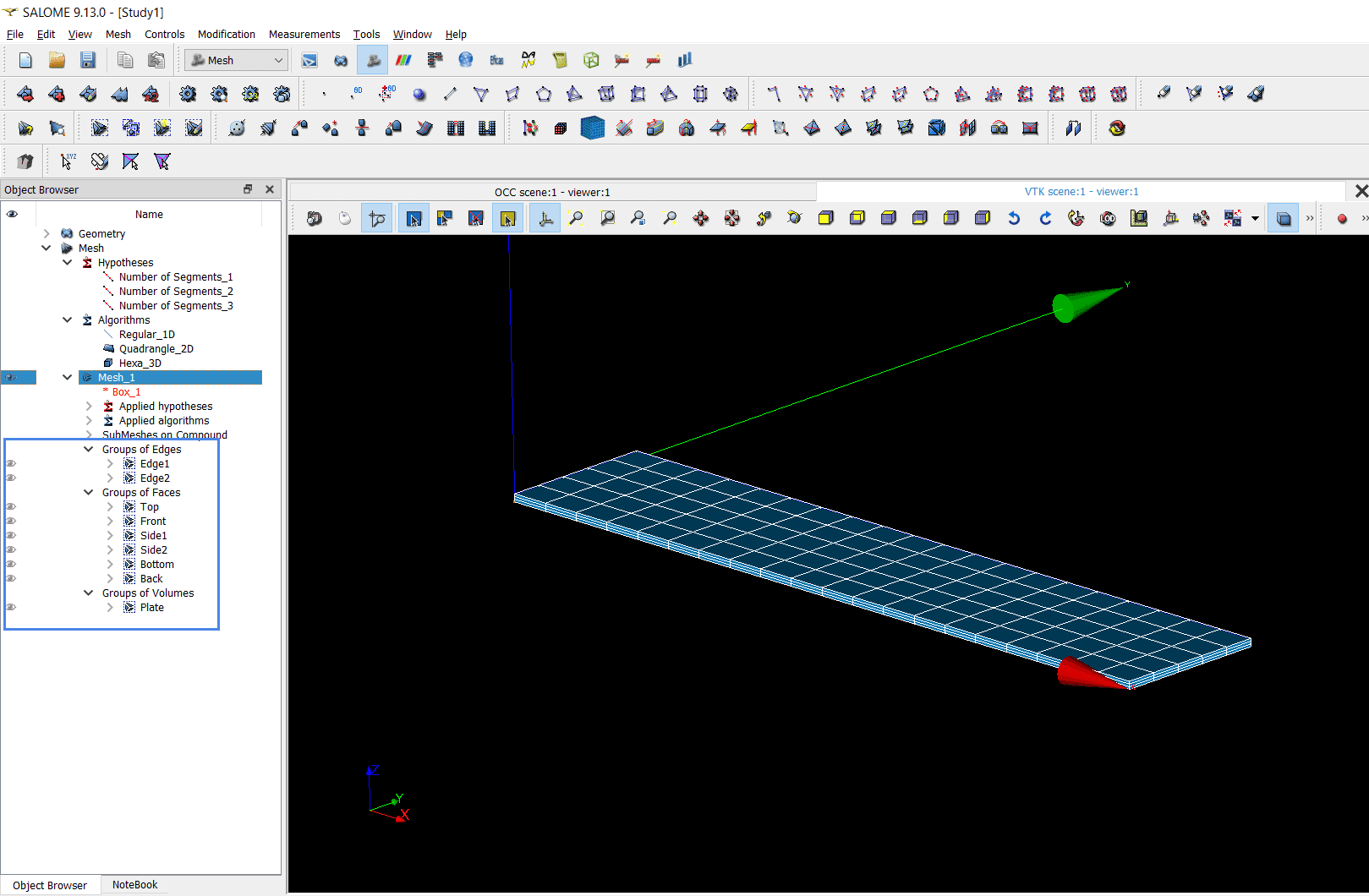

    mesh created in salome with face and volume groups
    Figure 2: Simple plate structured mesh created in Salome for a simulation in SimScale

    In the figure above, notice how groups were created in Salome for edges, faces, and volumes. These groups will be available in SimScale for you to select when setting up boundary conditions, material assignments, result controls, and more.

    As such, a .med mesh must have groups of volumes and faces to successfully import it to SimScale. Furthermore, groups of edges and nodes are optional.

    When exporting a .med mesh, keep in mind that only versions 3.0, 3.1, 3.2, and 3.3 are supported.

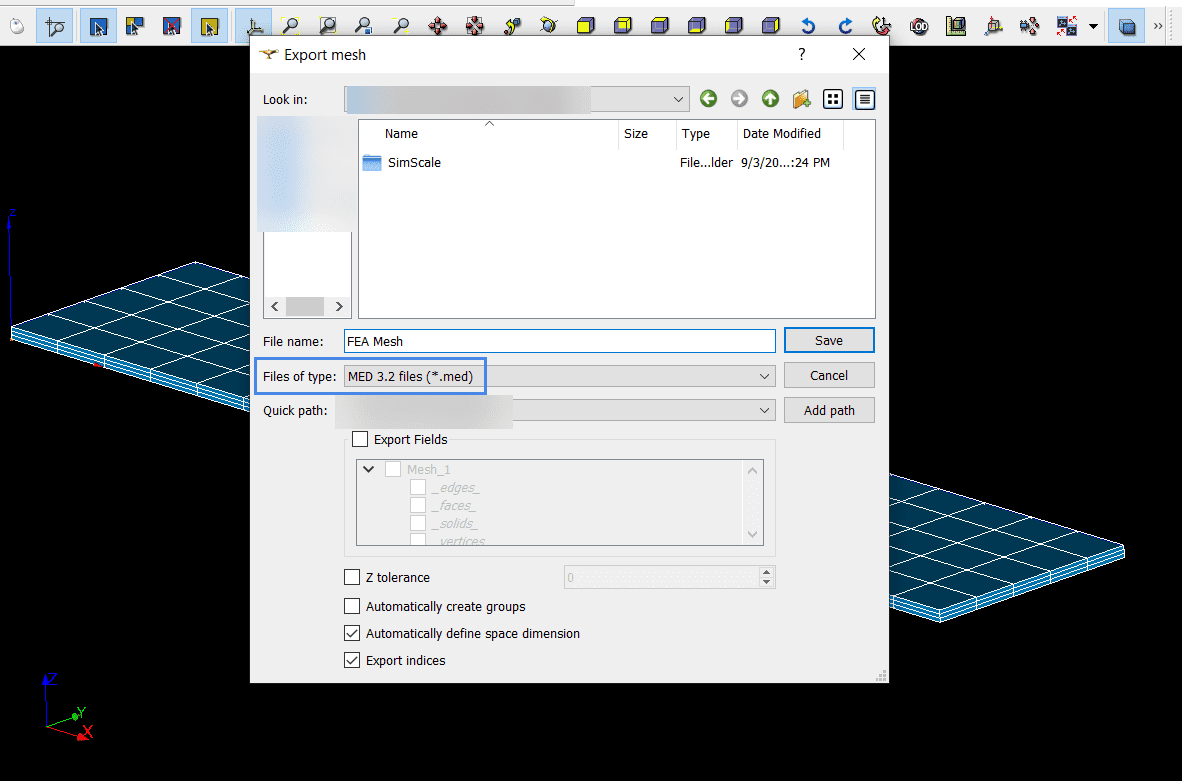

    med export valid versions
    Figure 3: Exporting a version 3.2 .med mesh from Salome

    When importing the .med mesh to SimScale, you may choose to leave the mesh uncompressed, or compress it either as a *.tar.gz file or a *.zip archive.

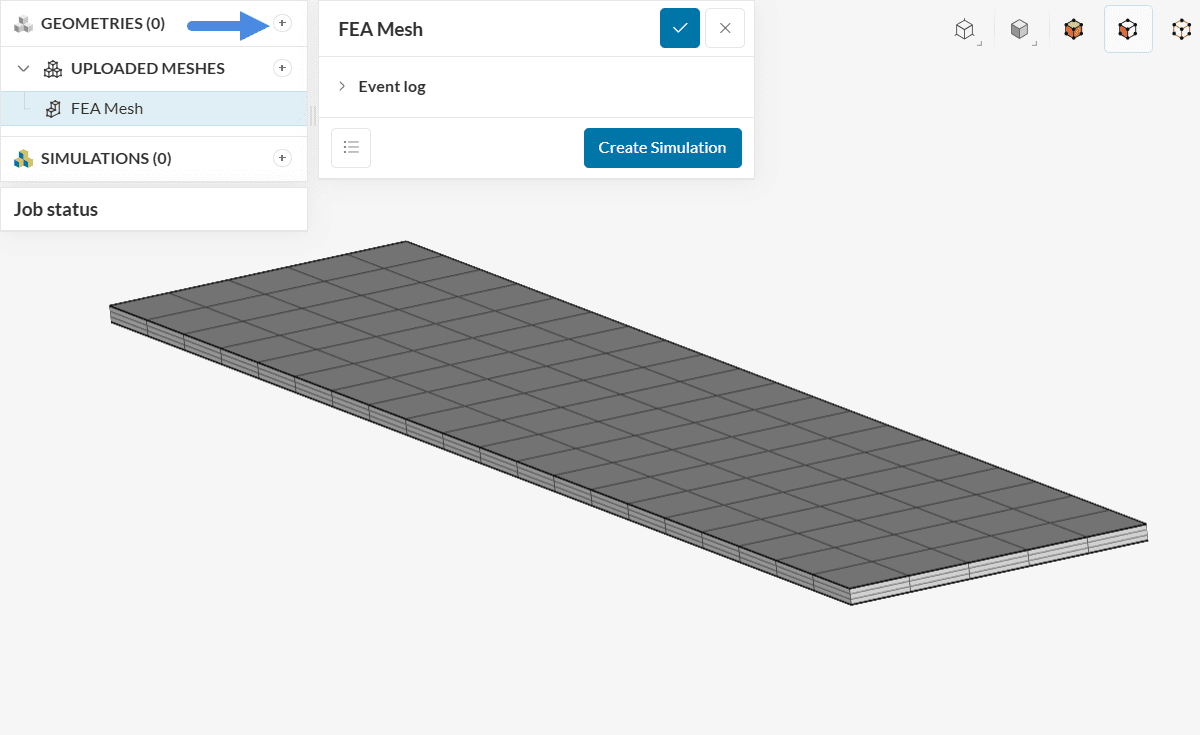

    importing .med mesh in simscale
    Figure 4: After importing a .med mesh, you may use it for structural analyses and selected CFD solvers in SimScale

    OPENFOAM® Mesh Upload

    To upload a mesh in the .foam format, simply pack the constant folder within the OpenFOAM case folder and upload it. The constant folder has to contain the polyMesh folder where the actual mesh files are located. Pack the constant folder either as *.tar.gz file or a *.zip archive before uploading.

    All mesh patches of your polyMesh/boundaries file will be pickable so that boundary conditions can be assigned. Here is an example of the contents inside of the constant and polyMesh folders:

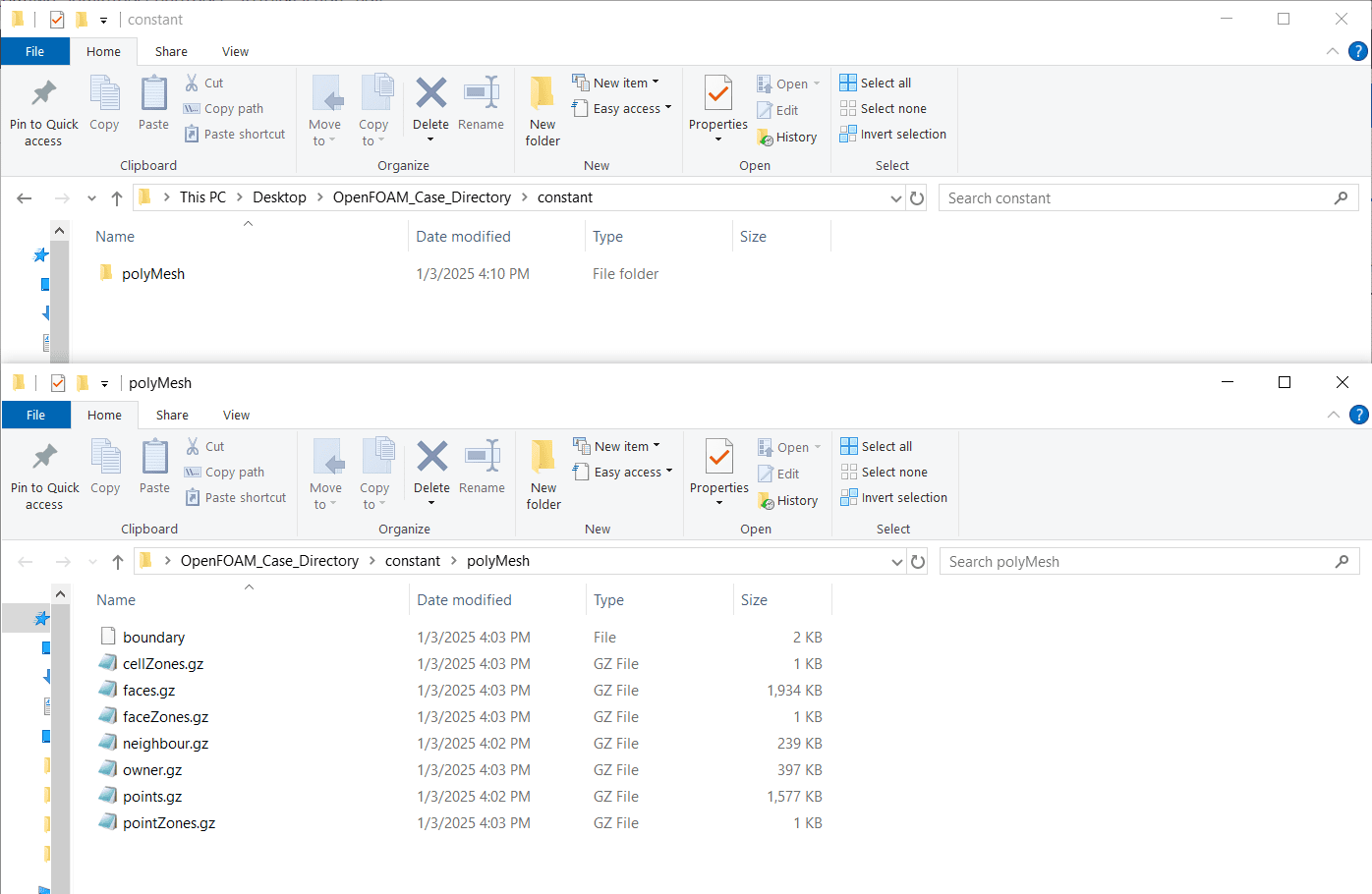

    uploading openfoam mesh to simscale
    Figure 5: Contents of a constant folder before uploading a .foam mesh to SimScale

    After importing the compressed constant folder to SimScale, the .foam mesh will be available for the following solvers: incompressible, compressible, convective heat transfer, and multiphase.

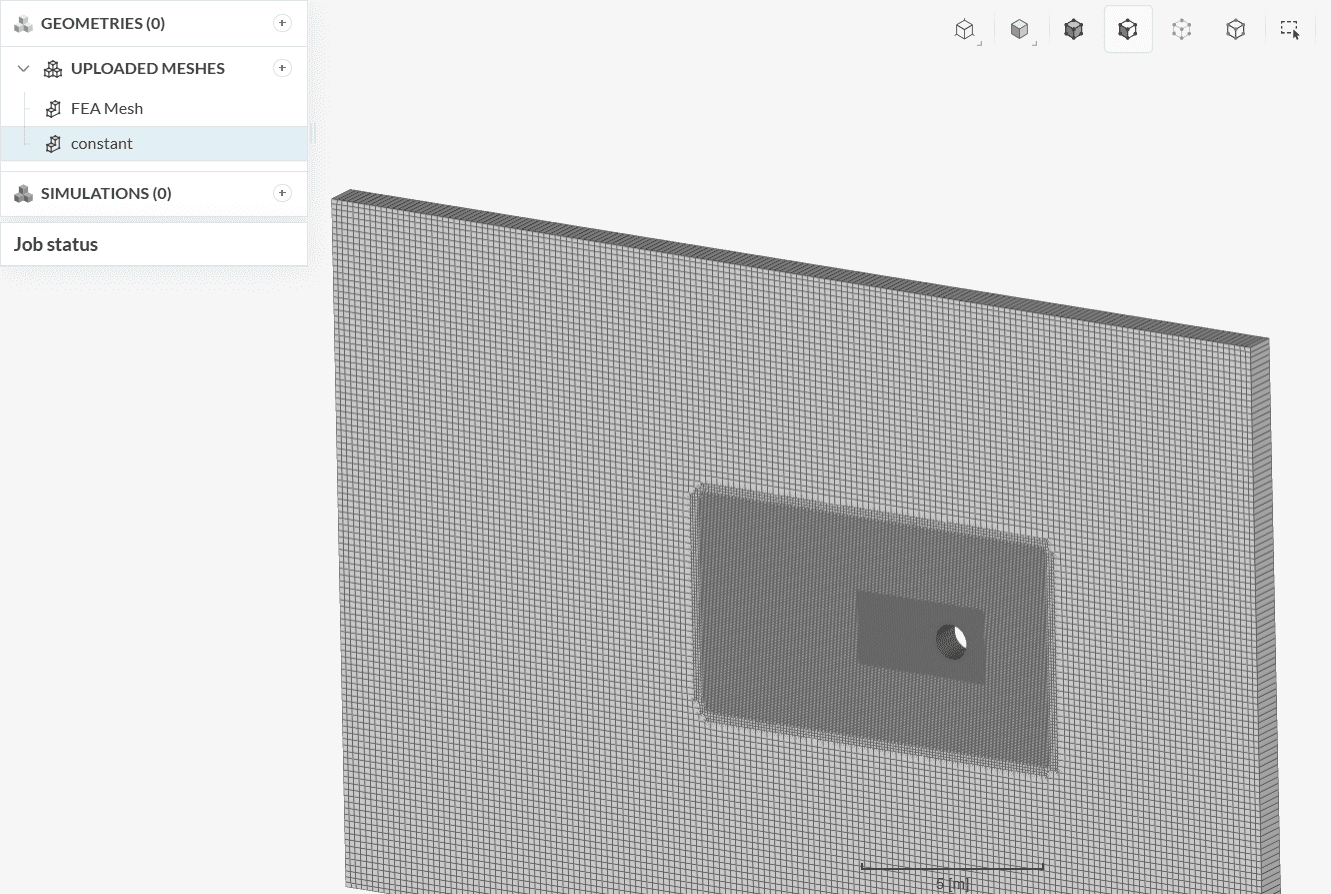

    mesh import simscale openfoam format
    Figure 6: .foam mesh imported to SimScale for an external aerodynamics simulation

    Please note that SimScale uses original OpenFOAM headers as reference when processing imported meshes, therefore if the headers do not follow the correct OpenFOAM format this will cause the mesh import to fail.

    This issue often happens when you generate the mesh with an OpenFOAM GUI, and in these cases it is important that you adjust the headers back to the original OpenFOAM format. For example, the image below shows an original OpenFOAM header for the constant/polyMesh/boundary file:

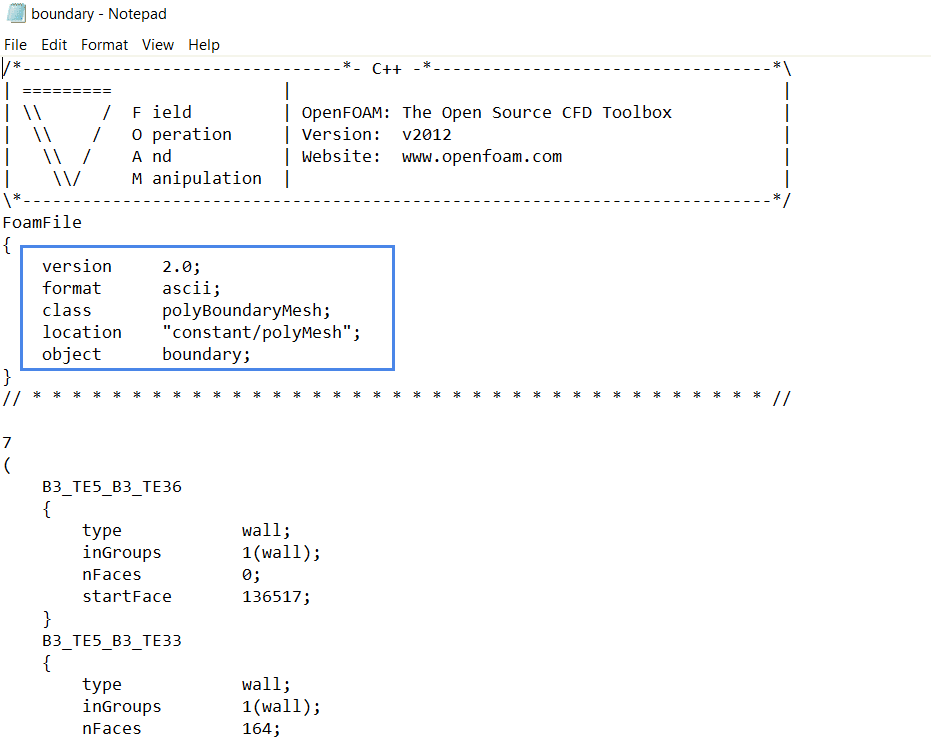

    openfoam header mesh import
    Figure 7: To make sure that your mesh uses the correct header format, compare your boundary file against the original OpenFOAM header from this image

    If the header format is wrong, you will have to update it for the boundary file and all other files in the constant folder.

    Important

    OpenFOAM®’s binary format is not yet supported. Please make sure the mesh is in ASCII format. Hence, please open the file system/controlDict and change the writeFormat entry from binary to ascii.

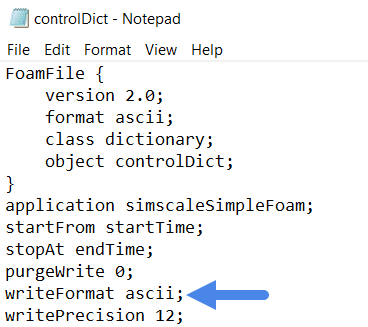

    openfoam ascii writeformat for mesh uploads

    Figure 8: Adjusting the writeFormat definition to ascii before running the foamFormatConvert utility

    Afterward, using OpenFOAM, run the foamFormatConvert utility to convert the binary mesh into an ASCII mesh.

    Note that unlike the CAD models, uploaded meshes are not available for downloading from the SimScale platform.

    Supported Analysis Types

    Considering the physics involved and the requirement of geometries the following analysis types may be supported to run simulations on uploaded meshes:

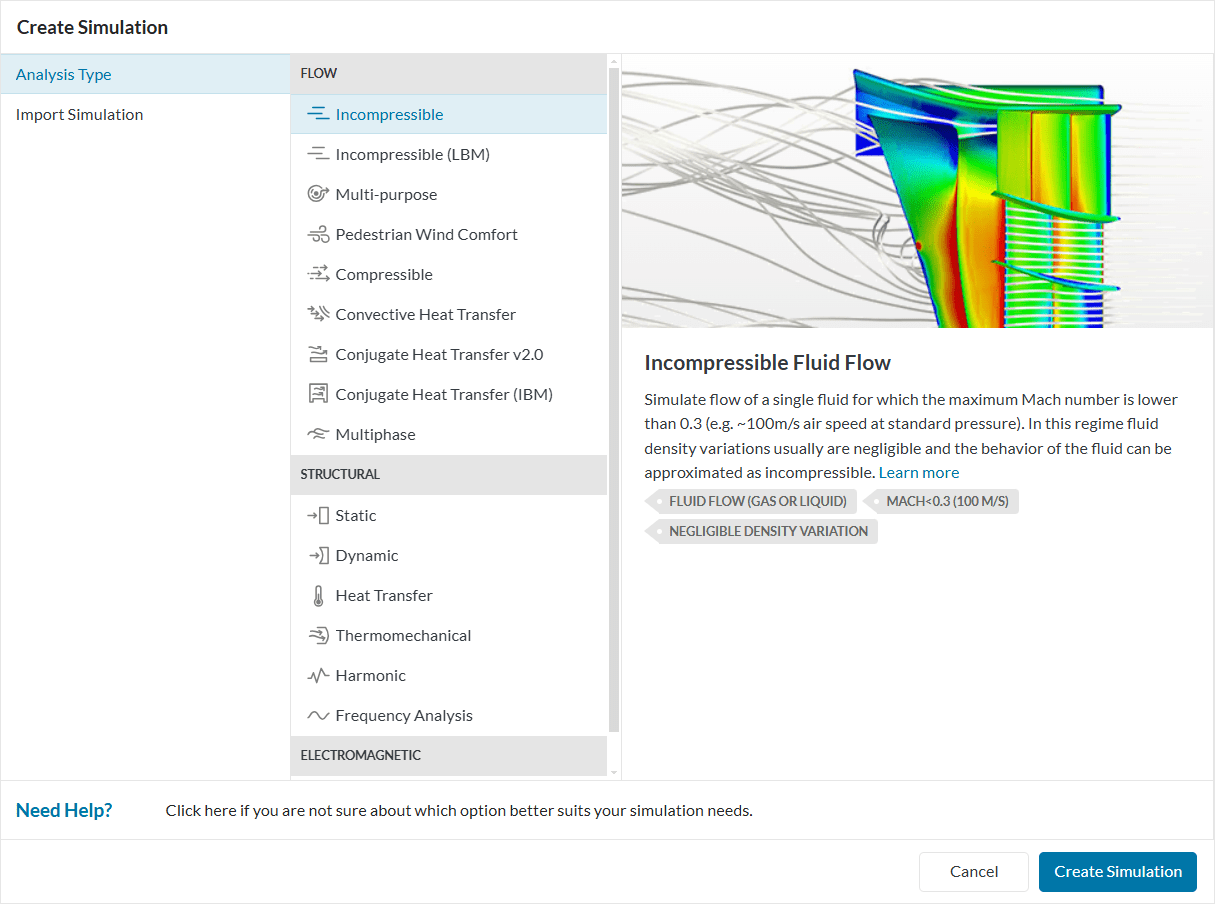

    supported analysis types for uploaded mesh
    Figure 9: Supported analysis types for the uploaded mesh.

    Note that the uploaded meshes cannot be modified and hence CAD mode operations cannot be performed on them.
